SenseCAP Ecosystem Introduction
With a range of products that cater to the needs of different users, from hobbyists to industrialists, SenseCAP product line offers a comprehensive suite of solutions for digitalizing the world around us.
From sensors to gateways, users can build and customize their own solutions for monitoring and controlling various aspects of their environment. The product line also includes industrial-grade devices that can be deployed on a large scale, offering advanced functionality and robust performance.
In addition, SenseCAP product line also provides an array of software, cloud services, and APIs, allowing users to collect, store, and analyze data in real-time. The combination of hardware, software, and cloud services enables users to quickly respond to changes in their environment and make data-driven decisions.
Wild IoT
Wild IoT refers to the technology of deploying sensor networks in natural environments to monitor and collect various environmental data in real-time. This data includes temperature, humidity, air pressure, light intensity, soil moisture, etc., which aid in scientific research, ecological conservation, and resource management.
Why Are Industrial Sensors Needed?
- Durability and Reliability: The outdoor environment is complex and variable. Industrial sensors, with their high temperature, humidity, and corrosion resistance, can operate stably in harsh conditions for extended periods.
- High-Precision Data Collection: Scientific research and environmental monitoring require high-precision data. Industrial sensors' high accuracy and stability meet these demands.
- Low Power Consumption and Long Battery Life: Power supply can be challenging in the wild. Industrial sensors are typically designed as low-power devices, allowing for prolonged operation and reducing the frequency of maintenance and battery replacement.
How Do They Work?
- Data Collection: Industrial sensors are installed in outdoor environments to collect real-time data on temperature, humidity, air pressure, etc.
- Data Transmission: The collected data is transmitted to gateways using low-power wide-area network (LPWAN) technologies like LoRaWAN.
- Data Processing and Storage: Gateways send the data to the cloud platform for processing, storage, and analysis.
- Data Visualization and Application: Users can view the data in real-time through applications or dashboards on the cloud platform, aiding in analysis and decision-making.
Hardware Products
SenseCAP T1000 Tracker
SenseCAP T1000 is a compact LoRaWAN® tracker that utilizes GNSS/Wi-Fi/Bluetooth for precise indoor & outdoor location tracking. It boasts self-geo-adaptive capabilities, local data storage, and an impressive months of battery life. Additionally, it is equipped with temperature, light, and motion sensors, making it ideal for a variety of location-based applications.
LoRaWAN Sensor
SenseCAP S210x Series Sensors
SenseCAP S210X is a series of wireless LoRaWAN® sensors. It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments. SenseCAP S210X is compatible with LoRaWAN® V1.0.3 protocol and can work with LoRaWAN® gateway.
| Air Temp & Humidity | Light | Air TH & CO2 | Soil Moisture & Temp |
|---|---|---|---|
 |  |  |  |
| Soil Moisture & Temperature & Pore & EC | Soil Moisture & Temp & EC | PH | PT1000 Temperature |
|---|---|---|---|
 |  |  |  |
SenseCAP S2120 8-in-1 Weather Sensor
SenseCAP LoRaWAN S2120 Weather Station collects and uploads air temperature, humidity, wind speed/direction, Rainfall Intensity, light intensity, UV index, and barometric pressure data supported by worldwide LoRaWAN networks. The S2120 weather station is suitable for applications in gardens, agriculture, meteorology, urban environmental monitoring, and other scenarios. It also enables low maintenance cost for its ultra-low power consumption, reliable performance, built-in Bluetooth for OTA configuration and remote device management.
SenseCAP A1101 Vision AI Sensor
The SenseCAP A1101 - LoRaWAN Vision AI Sensor is a TinyML Edge AI enabled smart image sensor. It supports a variety of AI models such as image recognition, people counting, target detection, meter recoignition etc. It also supports training models with TensorFlow Lite.
SenseCAP ONE Weather Sensor
Today, data on localized weather, known as microclimates, is the new frontier for more precise and accurate weather forecasting. As a result, the collection of weather data is becoming increasingly smaller and gridded. In light of this, weather stations, which are the most convenient means of collecting weather data, are seeing a rise in demand. SenseCAP offers all-in-one weather sensors to help you collect and monitor environmental data for various scenarios.
SenseCAP ONE is a series of all-in-one compact weather sensors, that integrate multiple sensors into this compact device, monitoring up to 10 weather parameters: air temperature, air humidity, atmospheric pressure, light intensity, wind speed, wind direction, precipitation, PM 2.5, PM 10, and CO2.
| Air Temperature | Air Humidity | Air Pressure | Light | Wind Speed | Wind Direction | Rainfall | PM2.5 | PM10 | CO2 | Noise | |
|---|---|---|---|---|---|---|---|---|---|---|---|
✅ | ✅ | ||||||||||
✅ | ✅ | ✅ | ✅ | ✅ | |||||||
✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | |||||
✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ||||
✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | |||
✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ | ✅ |
Sensor Probes
To bring more convenience for your applications, we also provide RS485 sensor probes detecting soil moisture, temperature, soil electrical conductivity, and pH level. There will also be more RS485 sensors coming out soon.
| Liquid Level | Soil Moisture & Temperature | Soil Moisture & Temperature & EC |
|---|---|---|
 |  |  |
| RS485 500cm Ultrasonic Level | RS485 700cm Ultrasonic Level | PH |
|---|---|---|
 |  |  |
| Optical Rain Gauge RG-9 | Optical Rain Gauge RG-15 | Water Leak Detector |
|---|---|---|
 |  |  |
Sensor Builder
SenseCAP S2110 Sensor Builder
SenseCAP S2110 Sensor Builder a groundbreaking solution that enables the fusion of industrial-grade modules and maker-level modules. It is an open-source tool which has the ability to build RS485 functional modules with 500+ Grove modules.
Data Logger
Data Logger serves as the bridge to up to 200+ sensors covering industrial-level sensors, Grove sensors and Analog/RS485/GPIO sensors.
SenseCAP offers two types of Data logger:
 |  |
|---|---|
SenseCAP Decoder
SenseCAP decoder is used for decoding the LoRaWAN messages sent from the SenseCAP LoRaWAN® devices. After decoding, users' applications will get more friendly and readable messages.
Software Services
SenseCAP Portal
SenseCAP Portal is designed for customers to manage devices, data, and Access Key. After creating an account for your own, you are able to bind all devices you have on this portal. To learn about the quickstart and guide of the portal, check out the SenseCAP document center – Portal.
SenseCAP Mate APP
SenseCAP Mate APP is a powerful APP for data visualization and remote device management.
- Save time - provides a scan-and-play experience to enable users to complete the whole configuration in 4 steps
- Works for people with less or no technical background to get started with sensor data easily
- Acquire and view data on clean user interfaces
- Set time intervals: improve the battery efficiency
- Set threshold values: focus on the data you need to take action for - coming soon
- Send alarms if data is out of the safe range - coming soon
SenseCAP AI
SenseCAP AI is the AI-powered solution that helps you make the most of your sensor data and unlock the full potential of your sensor data. By connecting your SenseCAP sensors to the SenseCAP platform, you can easily collect and analyze data on environmental factors such as temperature, humidity, light, and air quality. Meanwhile, our powerful AI algorithms then use this data to provide you with actionable insights and recommendations that can help you optimize your operations, reduce costs, and improve efficiency.
Whether you're looking to monitor air quality, optimize crop growth, or improve efficiency, SenseCAP AI has the tools you need to succeed. SenseCAP AI is currently released on SenseCAP Portal and SenseCAP Mate App, where users can use it at any time. With our easy-to-use platform and App, you can quickly connect your sensors and start receiving valuable insights in just minutes.
SenseCAP API
With the use of the SenseCAP Application Programming Interface, you are able to manage your own SenseCAP devices and data to meet your specific demands. There are three types of API methods you can flexibly apply:
- With HTTP API, you can manage LoRa and NB-IoT devices, to get RAW data or historical data.
- With MQTT API, you can subscribe to the sensor’s real-time measurement data through the MQTT protocol.
- With WebSocket API, you can get real-time measurement data of sensors through Websocket protocol.
To learn more about the guide and references of SenseCAP API, kindly visit SenseCAP Document Center – API.
Applications
5 Minutes to Develop an Industrial LoRaWAN Sensor
Let's quickly build an industrial-grade LoRaWAN wireless sensor for direct commercial use in 5 minutes.
When prototyping for a commercial data acquisition project, it takes a lot of time and cost to prototype. For example, we need to make a wireless pH sensor for an agricultural project. We need to 1) Find the development board and sensor probe. 2) Write code. 3) 3D print the shell. 4) Final assembly test. By the time we complete the prototype, it can take days or even weeks.
Today, we can use a wireless LoRa collector, set up sensors to connect to an app via Bluetooth and build a product in five minutes, directly into a commercial project.

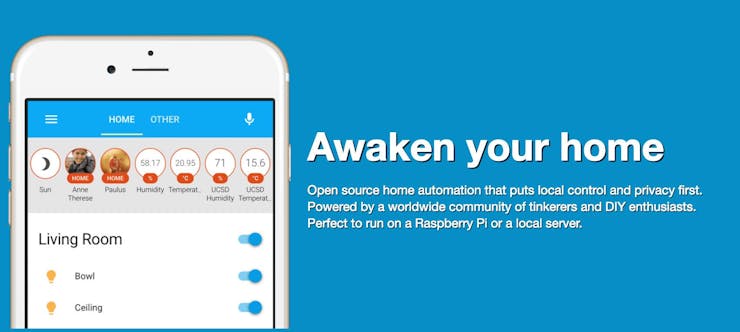

Tango with Home Assistant and SenseCAP Sensors
In this series of articles, I will share how I build a decent smart home in Home Assistant and use sensors from Seeed Studio SenseCAP products. And this is the first milestone.
✨ Contributor Project
- We have a task list for updating this page, which is categorized under our contributor project, as we are dedicated to enhancing the user experience and providing better support through the development of our wiki platform.
- Your contribution to this page is essential to us! We really value your input and would greatly appreciate your assistance in generating ideas.
SenseCAP Tech Support
Thank you for choosing our products! We are here to provide you with different support to ensure that your experience with our products is as smooth as possible. We offer several communication channels to cater to different preferences and needs.
