IMU Usage

The IMU model equipped on the device is ICM-42670-P, a 6-axis sensor integrating a 3-axis accelerometer and a 3-axis gyroscope. The gyroscope of ICM-42670-P supports measurement ranges of ±250 / ±500 / ±1000 / ±2000 dps, while the accelerometer supports ranges of ±2 / ±4 / ±8 / ±16 g. Its internal data is output in 16-bit two's complement format.

Data Path​

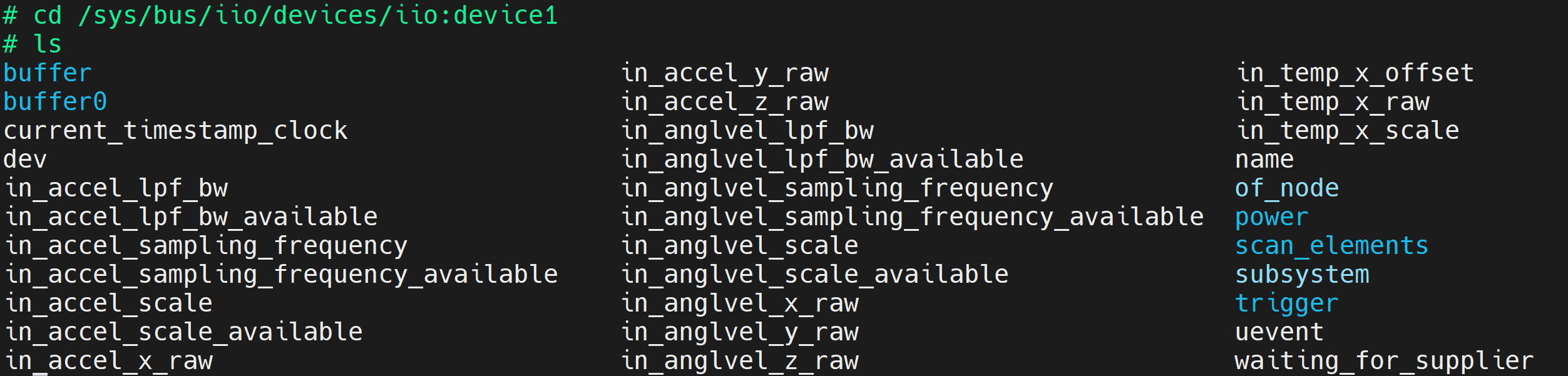

reCamera PRO uses the standard IIO driver for the IMU, so raw data can be directly retrieved via IIO interfaces. Raw data files can be found under the directory /sys/bus/iio/devices/iio:device1/. IMU_DATA_SAMPLE

Read Data​

Run the following command to read corresponding raw data. The example below demonstrates reading the X-axis acceleration data:

cat /sys/bus/iio/devices/iio:device1/in_accel_x_raw

Retrieve Data with Python​

Python can be used to easily obtain IMU data. Below is a simple example:

#!/usr/bin/env python3
DEVICE = "/sys/bus/iio/devices/iio:device1"
with open(f"{DEVICE}/in_anglvel_scale", "r") as f:
    scale = float(f.read().strip())
with open(f"{DEVICE}/in_anglvel_x_raw", "r") as f:
    raw = int(f.read().strip())
gyro_x = raw * scale
print(f"Gyroscope X: {gyro_x:.6f} rad/s")
