Connecting to Helium

Helium console is a management platform in the Helium network for registering, configuring, and routing data from LoRaWAN devices, enabling rapid IoT deployment. This section will teach you how to quickly integrate your device into Helium.

Device Configuration​

Before connecting to Helium, you need to configure the basic parameters of your device on SenseCraft APP, check Get Started for more details.

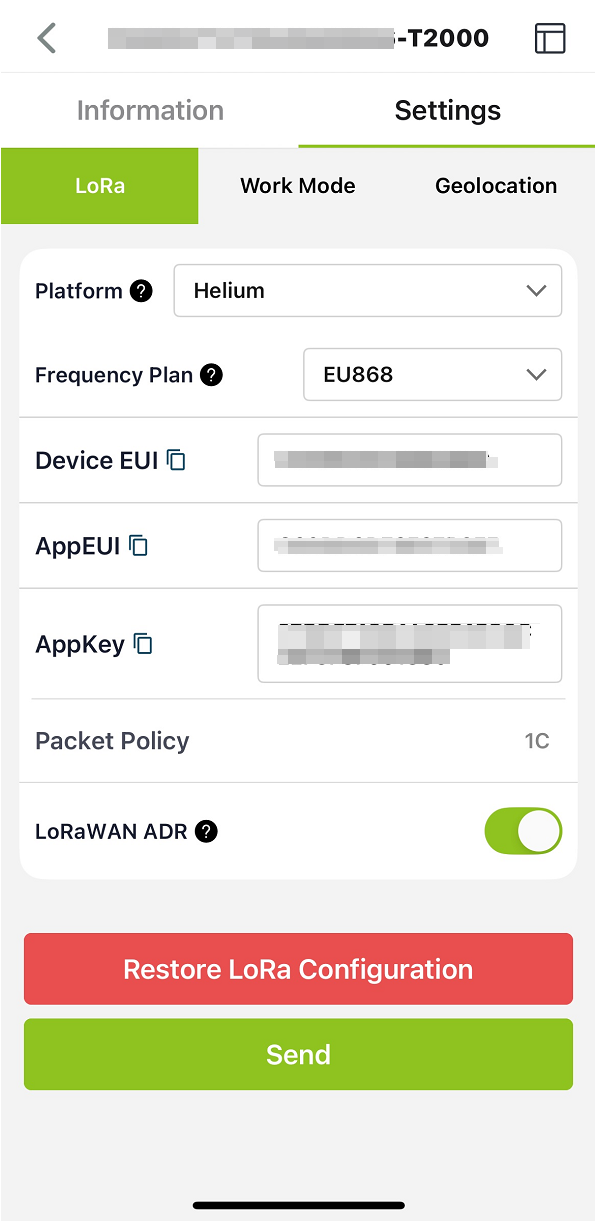

  • Set the platform to Helium, and then copy the Device EUI/App EUI/App Key.

pir

Helium Console Configuration​

note

The Helium console is no longer open for new accounts. The description for how to connect a T2000 to the Helium Console remains here for users that already have an account. For new users, please refer to the ChirpStack LNS steps below or determine the necessary steps for your particular LNS based on the two existing examples here.

Step 1: Add New Device​

Log into your Helium console, then go to Devices section and click on Add device button.

pir

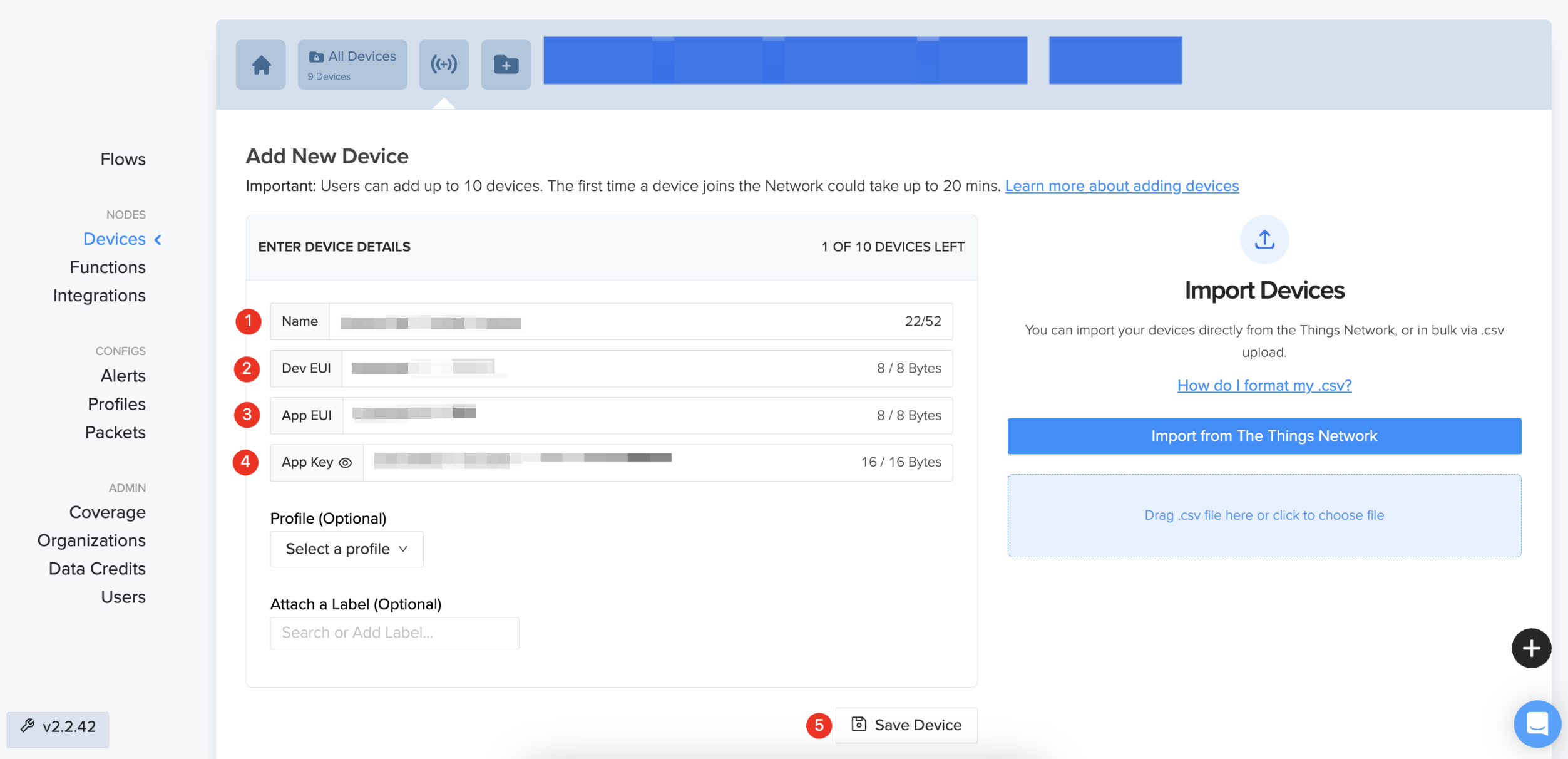

Fill the required fields such as the device name, the LoRaWAN credentials, etc.
Then click the Save Device button.

pir

Step 2: Create the Decoder Function​

The next step is to setup the function that will decode the raw bytes into a human readable form.

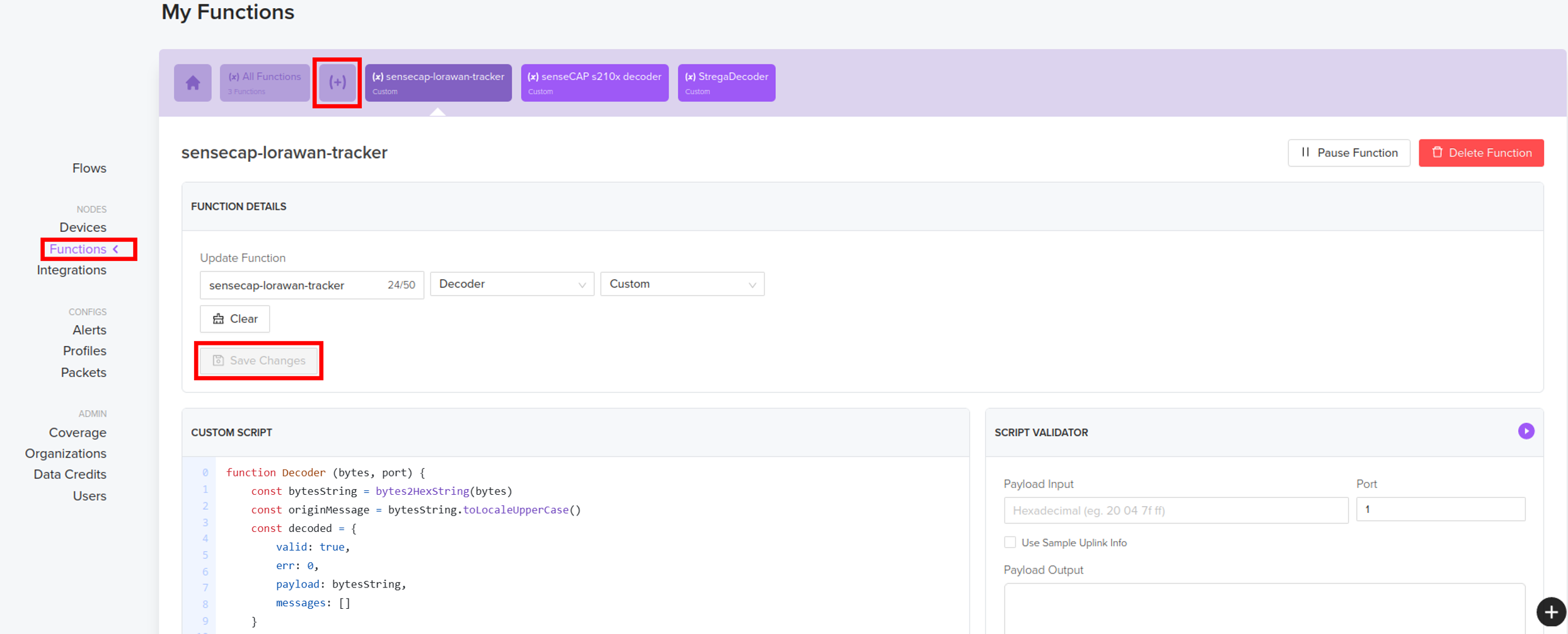

Head to Function tab on the panel at the left side. Then click the Add New Function button and give it a name:

pir

Copy the following code to fill in the CUSTOM SCRIPT and then save the changes.

Decoder for Helium
function Decoder (bytes, port) {
    const bytesString = bytes2HexString(bytes)
    const originMessage = bytesString.toLocaleUpperCase()
    const decoded = {
        valid: true,
        err: 0,
        payload: bytesString,
        messages: []
    }

    let measurement = messageAnalyzed(originMessage)
    if (measurement.length === 0) {
        decoded.valid = false
        return { data: decoded }
    }

    for (let message of measurement) {
        if (message.length === 0) {
            continue
        }
        let elements = []
        for (let element of message) {
            if (element.errorCode) {
                decoded.err = element.errorCode
                decoded.errMessage = element.error
            } else {
                elements.push(element)
            }
        }
        if (elements.length > 0) {
            decoded.messages.push(elements)
        }
    }
    return { data: decoded }
}

function messageAnalyzed (messageValue) {
    try {
        let frames = unpack(messageValue)
        let measurementResultArray = []
        for (let i = 0; i < frames.length; i++) {
            let item = frames[i]
            let dataId = item.dataId
            let dataValue = item.dataValue
            let measurementArray = deserialize(dataId, dataValue)
            measurementResultArray.push(measurementArray)
        }
        return measurementResultArray
    } catch (e) {
        return e.toString()
    }
}

function unpack (messageValue) {
    let frameArray = []
    const FIXED_LENGTH_PACKAGES = {
        '27': 92, '28': 60, '29': 24, '2A': 12, '2B': 46, '2E': 34, '31': 30, '32': 18
    }
    const DYNAMIC_LENGTH_PACKAGES = {
        '2C': {minLen: 32, scanCountPos: [30, 32], baseLen: 23, itemLen: 7},
        '2D': {minLen: 32, scanCountPos: [30, 32], baseLen: 23, itemLen: 7},
        '2F': {minLen: 20, scanCountPos: [18, 20], baseLen: 17, itemLen: 7},
        '30': {minLen: 20, scanCountPos: [18, 20], baseLen: 17, itemLen: 7}
    }

    for (let i = 0; i < messageValue.length; i++) {
        let remainMessage = messageValue
        let dataId = remainMessage.substring(0, 2).toUpperCase()
        let dataValue
        let dataObj = {}

        if (dataId === '0C') {
            dataValue = ''
            messageValue = remainMessage.substring(2)
            dataObj = {'dataId': dataId, 'dataValue': ''}
        } else if (dataId === '0D') {
            dataValue = remainMessage.substring(2, 10)
            messageValue = remainMessage.substring(10)
            dataObj = {'dataId': dataId, 'dataValue': dataValue}
        } else if (FIXED_LENGTH_PACKAGES[dataId]) {
            let packageLen = FIXED_LENGTH_PACKAGES[dataId]
            if (remainMessage.length < packageLen) {
                return frameArray
            }
            dataValue = remainMessage.substring(2, packageLen)
            messageValue = remainMessage.substring(packageLen)
            dataObj = {'dataId': dataId, 'dataValue': dataValue}
        } else if (DYNAMIC_LENGTH_PACKAGES[dataId]) {
            let config = DYNAMIC_LENGTH_PACKAGES[dataId]
            if (remainMessage.length < config.minLen) {
                return frameArray
            }
            let scanCount = parseInt(remainMessage.substring(config.scanCountPos[0], config.scanCountPos[1]), 16)
            let packageLen = (config.baseLen + (scanCount - 1) * config.itemLen) * 2
            if (remainMessage.length < packageLen) {
                return frameArray
            }
            dataValue = remainMessage.substring(2, packageLen)
            messageValue = remainMessage.substring(packageLen)
            dataObj = {'dataId': dataId, 'dataValue': dataValue}
        } else {
            return frameArray
        }

        if (dataValue.length < 2 && dataObj.dataId !== '0C') {
            break
        }
        frameArray.push(dataObj)
    }
    return frameArray
}

function deserialize (dataId, dataValue) {
    let measurementArray = []
    let eventList = []
    let timestamp = 0
    let value = null
    let motionId = 0
    let scanMax = 0
    let interval = 0
    let workMode = 0
    let heartbeatInterval = 0
    let periodicInterval = 0
    let eventInterval = 0
    switch (dataId) {
        case '0C':
            measurementArray.push({type: "timeSync"})
            break
        case '0D':
            let errorCode = getInt(dataValue)
            let error = ''
            switch (errorCode) {
                case 1:
                    error = 'FAILED TO OBTAIN THE UTC TIMESTAMP'
                    break
                case 2:
                    error = 'ALMANAC TOO OLD'
                    break
                case 3:
                    error = 'DOPPLER ERROR'
                    break
            }
            measurementArray.push({errorCode, error})
            break
        case '27':
            measurementArray.push(...getUpT2000(dataValue))
            break
        case '28':
            interval = 0
            workMode = getInt(dataValue.substring(0, 2))
            heartbeatInterval = getMinsByMin(dataValue.substring(4, 8))
            periodicInterval = getMinsByMin(dataValue.substring(8, 12))
            eventInterval = getMinsByMin(dataValue.substring(12, 16))
            switch (workMode) {
                case 0:
                    interval = heartbeatInterval
                    break
                case 1:
                    interval = periodicInterval
                    break
                case 2:
                    interval = eventInterval
                    break
            }
            measurementArray = [
                {
                    measurementId: '3940', measurementValue: workMode
                }, {
                    measurementId: '3965', measurementValue: getPositioningStrategy(dataValue.substring(2, 4))
                }, {
                    measurementId: '3942', measurementValue: heartbeatInterval
                }, {
                    measurementId: '3943', measurementValue: periodicInterval
                }, {
                    measurementId: '3944', measurementValue: eventInterval
                }, {
                    measurementId: '3974', measurementValue: getInt(dataValue.substring(16, 18))
                }, {
                    measurementId: '3976', measurementValue: getInt(dataValue.substring(18, 20))
                }, {
                    measurementId: '3977', measurementValue: getInt(dataValue.substring(20, 22))
                }, {
                    measurementId: '3900', measurementValue: interval
                }, {
                    measurementId: '3978', measurementValue: getInt(dataValue.substring(22, 24))
                }, {
                    measurementId: '3979', measurementValue: dataValue.substring(26, 26 + getInt(dataValue.substring(24, 26)) * 2)
                }
            ]
            // measurementArray.push(measurement)
            break
        case '29':
            measurementArray.push({
                measurementId: '3946', measurementValue: getInt(dataValue.substring(0, 2))
            })
            measurementArray.push({
                measurementId: '3947', measurementValue: getSensorValue(dataValue.substring(2, 6), 1)
            })
            measurementArray.push({
                measurementId: '3948', measurementValue: getMinsByMin(dataValue.substring(6, 10))
            })
            measurementArray.push({
                measurementId: '3949', measurementValue: getInt(dataValue.substring(10, 12))
            })
            measurementArray.push({
                measurementId: '3950', measurementValue: getMinsByMin(dataValue.substring(12, 16))
            })
            measurementArray.push({
                measurementId: '3951', measurementValue: getInt(dataValue.substring(16, 18))
            })
            measurementArray.push({
                measurementId: '3952', measurementValue: getInt(dataValue.substring(18, 22))
            })
            break
        case '2A':
            measurementArray.push({
                measurementId: '3000', measurementValue: getBattery(dataValue.substring(0, 2))
            })
            measurementArray.push({
                measurementId: '3940', measurementValue: getWorkingMode(dataValue.substring(2, 4))
            })
            measurementArray.push({
                measurementId: '3965', measurementValue: getPositioningStrategy(dataValue.substring(4, 6))
            })
            measurementArray.push({
                measurementId: '3974', measurementValue: getInt(dataValue.substring(6, 8))
            })
            measurementArray.push({
                measurementId: '3976', measurementValue: getInt(dataValue.substring(8, 10))
            })
            break
        case '2B':
            eventList = getEventStatus(dataValue.substring(0, 4))
            motionId = getMotionId(dataValue.substring(4, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            parseAccelerometerData(dataValue, 14, timestamp, motionId, measurementArray)
            parseLocationData(dataValue, 26, timestamp, motionId, measurementArray)
            parseBatteryData(dataValue, 42, timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
        case '2C':
        case '2D':
            eventList = getEventStatus(dataValue.substring(0, 4))
            motionId = getMotionId(dataValue.substring(4, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            parseAccelerometerData(dataValue, 14, timestamp, motionId, measurementArray)
            parseBatteryData(dataValue, 26, timestamp, motionId, measurementArray)
            scanMax = getInt(dataValue.substring(28, 30))
            parseScanData(scanMax, dataValue, 30, dataId === '2C' ? '5001' : '5002', timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
        case '2E':
            eventList = getEventStatus(dataValue.substring(0, 4))
            motionId = getMotionId(dataValue.substring(4, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            parseLocationData(dataValue, 14, timestamp, motionId, measurementArray)
            parseBatteryData(dataValue, 30, timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
        case '2F':
        case '30':
            eventList = getEventStatus(dataValue.substring(0, 4))
            motionId = getMotionId(dataValue.substring(4, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            parseBatteryData(dataValue, 14, timestamp, motionId, measurementArray)
            scanMax = getInt(dataValue.substring(16, 18))
            parseScanData(scanMax, dataValue, 18, dataId === '2F' ? '5001' : '5002', timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
        case '31':
            eventList = getEventStatus(dataValue.substring(2, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            measurementArray.push({
                measurementId: '3576',
                timestamp,
                motionId,
                measurementValue: getPositingStatus(dataValue.substring(0, 2))
            })
            parseAccelerometerData(dataValue, 14, timestamp, motionId, measurementArray)
            parseBatteryData(dataValue, 26, timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
        case '32':
            eventList = getEventStatus(dataValue.substring(2, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            measurementArray.push({
                measurementId: '3576',
                timestamp,
                motionId,
                measurementValue: getPositingStatus(dataValue.substring(0, 2))
            })
            parseBatteryData(dataValue, 14, timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
    }
    if (measurementArray.length > 0) {
        for (let frag of measurementArray) {
            if (frag.measurementId) {
                frag.type = getTypeByMeasurementId(frag.measurementId)
            }
        }
    }
    return measurementArray
}

function parseAccelerometerData (dataValue, startPos, timestamp, motionId, measurementArray) {
    const accelerometerIds = ['4210', '4211', '4212']
    for (let i = 0; i < 3; i++) {
        let value = getSignSensorValue(dataValue.substring(startPos + i * 4, startPos + (i + 1) * 4), 1)
        if (value !== null) {
            measurementArray.push({
                measurementId: accelerometerIds[i],
                timestamp,
                motionId,
                measurementValue: value
            })
        }
    }
}

function parseBatteryData (dataValue, pos, timestamp, motionId, measurementArray) {
    measurementArray.push({
        measurementId: '3000',
        timestamp,
        motionId,
        measurementValue: '' + getBattery(dataValue.substring(pos, pos + 2))
    })
}

function parseEventData (eventList, timestamp, motionId, measurementArray) {
    if (eventList && eventList.length > 0) {
        measurementArray.push({
            measurementId: '4200',
            timestamp,
            motionId,
            measurementValue: eventList
        })
    }
}

function parseLocationData (dataValue, startPos, timestamp, motionId, measurementArray) {
    measurementArray.push({
        measurementId: '4197',
        timestamp,
        motionId,
        measurementValue: '' + getSensorValue(dataValue.substring(startPos, startPos + 8), 1000000)
    })
    measurementArray.push({
        measurementId: '4198',
        timestamp,
        motionId,
        measurementValue: '' + getSensorValue(dataValue.substring(startPos + 8, startPos + 16), 1000000)
    })
}

function parseScanData (scanMax, dataValue, startPos, measurementId, timestamp, motionId, measurementArray) {
    if (scanMax && scanMax > 0) {
        measurementArray.push({
            measurementId,
            timestamp,
            motionId,
            measurementValue: getMacAndRssiObj(dataValue.substring(startPos))
        })
    }
}

function getTypeByMeasurementId (measurementId) {
    const TYPE_MAP = {
        '3000': 'Battery',
        '3502': 'Firmware Version',
        '3001': 'Hardware Version',
        '3940': 'Work Mode',
        '3965': 'Positioning Strategy',
        '3942': 'Heartbeat Interval',
        '3943': 'Periodic Interval',
        '3944': 'Event Interval',
        '3974': '3X Sensor Enable',
        '3976': 'Anti-Theft',
        '3977': 'GNSS Scan Timeout',
        '3900': 'Uplink Interval',
        '3978': 'BLE Scan Timeout',
        '3979': 'UUID Filter',
        '3946': 'Motion Enable',
        '3947': 'Any Motion Threshold',
        '3948': 'Motion Start Interval',
        '3949': 'Static Enable',
        '3950': 'Device Static Timeout',
        '3951': 'Shock Enable',
        '3952': 'Shock Threshold',
        '4210': 'AccelerometerX',
        '4211': 'AccelerometerY',
        '4212': 'AccelerometerZ',
        '4197': 'Longitude',
        '4198': 'Latitude',
        '4200': 'Event Status',
        '5001': 'Wi-Fi Scan',
        '5002': 'BLE Scan',
        '3576': 'Positioning Status'
    }
    return TYPE_MAP[measurementId] || ''
}

function getMotionId (str) {
    return getInt(str)
}

function getPositingStatus (str) {
    let status = getInt(str)
    const STATUS_MAP = {
        0: "locate successful.",
        1: "The GNSS scan timed out.",
        2: "The Wi-Fi scan timed out.",
        3: "The Wi-Fi + GNSS scan timed out.",
        4: "The GNSS + Wi-Fi scan timed out.",
        5: "The Bluetooth scan timed out.",
        6: "The Bluetooth + Wi-Fi scan timed out.",
        7: "The Bluetooth + GNSS scan timed out.",
        8: "The Bluetooth + Wi-Fi + GNSS scan timed out.",
        9: "Location Server failed to parse the GNSS location.",
        10: "Location Server failed to parse the Wi-Fi location.",
        11: "Location Server failed to parse the Bluetooth location.",
        12: "Failed to parse location due to the poor accuracy.",
        13: "Time synchronization failed.",
        14: "Failed due to the old Almanac.",
        15: "The GNSS +Bluetooth scan timed out."
    }
    if (STATUS_MAP[status] !== undefined) {
        return {id: status, statusName: STATUS_MAP[status]}
    }
    return getInt(str)
}

function getUpT2000 (messageValue) {
    let interval = 0
    let workMode = getInt(messageValue.substring(10, 12))
    let heartbeatInterval = getMinsByMin(messageValue.substring(14, 18))
    let periodicInterval = getMinsByMin(messageValue.substring(18, 22))
    let eventInterval = getMinsByMin(messageValue.substring(22, 26))
    switch (workMode) {
        case 0:
            interval = heartbeatInterval
            break
        case 1:
            interval = periodicInterval
            break
        case 2:
            interval = eventInterval
            break
    }
    let data = [
        {
            measurementId: '3000', measurementValue: getBattery(messageValue.substring(0, 2))
        }, {
            measurementId: '3502', measurementValue: getSoftVersion(messageValue.substring(2, 6))
        }, {
            measurementId: '3001', measurementValue: getHardVersion(messageValue.substring(6, 10))
        }, {
            measurementId: '3940', measurementValue: workMode
        }, {
            measurementId: '3965', measurementValue: getPositioningStrategy(messageValue.substring(12, 14))
        }, {
            measurementId: '3942', measurementValue: heartbeatInterval
        }, {
            measurementId: '3943', measurementValue: periodicInterval
        }, {
            measurementId: '3944', measurementValue: eventInterval
        }, {
            measurementId: '3974', measurementValue: getInt(messageValue.substring(26, 28))
        }, {
            measurementId: '3976', measurementValue: getInt(messageValue.substring(28, 30))
        }, {
            measurementId: '3977', measurementValue: getInt(messageValue.substring(30, 32))
        }, {
            measurementId: '3900', measurementValue: interval
        }, {
            measurementId: '3978', measurementValue: getInt(messageValue.substring(54, 56))
        }, {
            measurementId: '3979', measurementValue: messageValue.substring(58, 58 + getInt(messageValue.substring(56, 58)) * 2)
        }
    ]
    let motionSetting = getMotionSetting(messageValue.substring(32, 42))
    let staticsSetting = getStaticSetting(messageValue.substring(42, 48))
    let shockSetting = getShockSetting(messageValue.substring(48, 54))
    data = [...data, ...motionSetting, ...staticsSetting, ...shockSetting]
    return data
}

function getMotionSetting (str) {
    return [
        {measurementId: '3946', measurementValue: getInt(str.substring(0, 2))},
        {measurementId: '3947', measurementValue: getSensorValue(str.substring(2, 6), 1)},
        {measurementId: '3948', measurementValue: getMinsByMin(str.substring(6, 10))},
    ]
}

function getStaticSetting (str) {
    return [
        {measurementId: '3949', measurementValue: getInt(str.substring(0, 2))},
        {measurementId: '3950', measurementValue: getMinsByMin(str.substring(2, 6))}
    ]
}

function getShockSetting (str) {
    return [
        {measurementId: '3951', measurementValue: getInt(str.substring(0, 2))},
        {measurementId: '3952', measurementValue: getInt(str.substring(2, 6))}
    ]
}

function getBattery (batteryStr) {
    return loraWANV2DataFormat(batteryStr)
}
function getSoftVersion (softVersion) {
    return `${loraWANV2DataFormat(softVersion.substring(0, 2))}.${loraWANV2DataFormat(softVersion.substring(2, 4))}`
}
function getHardVersion (hardVersion) {
    return `${loraWANV2DataFormat(hardVersion.substring(0, 2))}.${loraWANV2DataFormat(hardVersion.substring(2, 4))}`
}

function getMinsByMin (str) {
    return getInt(str)
}

function getSensorValue (str, dig) {
    if (str === '8000') {
        return null
    } else {
        return loraWANV2DataFormat(str, dig)
    }
}

function isNull (str) {
    if (str.substring(0, 1) !== '8') {
        return false
    }
    for (let i = 1; i < str.length; i++) {
        if (str.substring(i, i + 1) !== '0') {
            return false
        }
    }
    return true
}

function getSignSensorValue (str, dig = 1) {
    if (isNull(str)) {
        return null
    }
    return loraWANV2DataFormat(str, dig)
}

function bytes2HexString (arrBytes) {
    var str = ''
    for (var i = 0; i < arrBytes.length; i++) {
        var tmp
        var num = arrBytes[i]
        if (num < 0) {
            tmp = (255 + num + 1).toString(16)
        } else {
            tmp = num.toString(16)
        }
        if (tmp.length === 1) {
            tmp = '0' + tmp
        }
        str += tmp
    }
    return str
}
function loraWANV2DataFormat (str, divisor = 1) {
    let strReverse = bigEndianTransform(str)
    let str2 = toBinary(strReverse)
    if (str2.substring(0, 1) === '1') {
        let arr = str2.split('')
        let reverseArr = arr.map((item) => {
            if (parseInt(item) === 1) {
                return 0
            } else {
                return 1
            }
        })
        str2 = parseInt(reverseArr.join(''), 2) + 1
        return parseFloat('-' + str2 / divisor)
    }
    return parseInt(str2, 2) / divisor
}

function bigEndianTransform (data) {
    let dataArray = []
    for (let i = 0; i < data.length; i += 2) {
        dataArray.push(data.substring(i, i + 2))
    }
    return dataArray
}

function toBinary (arr) {
    let binaryData = arr.map((item) => {
        let data = parseInt(item, 16)
            .toString(2)
        let dataLength = data.length
        if (data.length !== 8) {
            for (let i = 0; i < 8 - dataLength; i++) {
                data = `0` + data
            }
        }
        return data
    })
    return binaryData.toString().replace(/,/g, '')
}

function getMacAndRssiObj (pair) {
    let pairs = []
    if (pair.length % 14 === 0) {
        for (let i = 0; i < pair.length; i += 14) {
            let mac = getMacAddress(pair.substring(i, i + 12))
            if (mac) {
                let rssi = getInt8RSSI(pair.substring(i + 12, i + 14))
                pairs.push({mac: mac, rssi: rssi})
            } else {
                continue
            }
        }
    }
    return pairs
}

function getMacAddress (str) {
    if (str.toLowerCase() === 'ffffffffffff') {
        return null
    }
    let macArr = []
    for (let i = 1; i < str.length; i++) {
        if (i % 2 === 1) {
            macArr.push(str.substring(i - 1, i + 1))
        }
    }
    let mac = ''
    for (let i = 0; i < macArr.length; i++) {
        mac = mac + macArr[i]
        if (i < macArr.length - 1) {
            mac = mac + ':'
        }
    }
    return mac
}

function getInt8RSSI (str) {
    return loraWANV2DataFormat(str)
}

function getInt (str) {
    return parseInt(str, 16)
}

function getEventStatus (str) {
    let bitStr = getByteArray(str)
    let bitArr = []
    for (let i = 0; i < bitStr.length; i++) {
        bitArr[i] = bitStr.substring(i, i + 1)
    }
    bitArr = bitArr.reverse()
    const EVENT_MAP = {
        0: {id: 1, eventName: "Start moving event."},
        1: {id: 2, eventName: "End movement event."},
        2: {id: 3, eventName: "Motionless event."},
        3: {id: 4, eventName: "Shock event."},
        4: {id: 5, eventName: "Temperature event."},
        5: {id: 6, eventName: "Light event."},
        6: {id: 7, eventName: "SOS event."},
        7: {id: 8, eventName: "Press once event."},
        8: {id: 9, eventName: "disassembled event"}
    }
    let event = []
    for (let i = 0; i < bitArr.length; i++) {
        if (bitArr[i] === '1' && EVENT_MAP[i]) {
            event.push(EVENT_MAP[i])
        }
    }
    return event
}

function getByteArray (str) {
    let bytes = []
    for (let i = 0; i < str.length; i += 2) {
        bytes.push(str.substring(i, i + 2))
    }
    return toBinary(bytes)
}

function getWorkingMode (workingMode) {
    return getInt(workingMode)
}

function getPositioningStrategy (strategy) {
    return getInt(strategy)
}

function getUTCTimestamp(str){
    return parseInt(loraWANV2PositiveDataFormat(str)) * 1000
}

function loraWANV2PositiveDataFormat (str, divisor = 1) {
    let strReverse = bigEndianTransform(str)
    let str2 = toBinary(strReverse)
    return parseInt(str2, 2) / divisor
}

Step 3: Check the Data​

When the device tries to connect to the network, the green breathing light will flash. If the device joins the network successfully, the green light will flash 5 times quickly.

Then you can check the data on the Helium console.

ChirpStack LNS​

For new users, to receive the data from a device on the Helium network it must be associated with an LNS (LoraWAN Network Server), typically use one of the public LNSs, many of which use ChirpStack, but it's also possible to connect one's own LNS to Helium.

For those familiar with the general process the TL;DR; is:

  • create an device profile with the appropriate region and the codec (see source below)

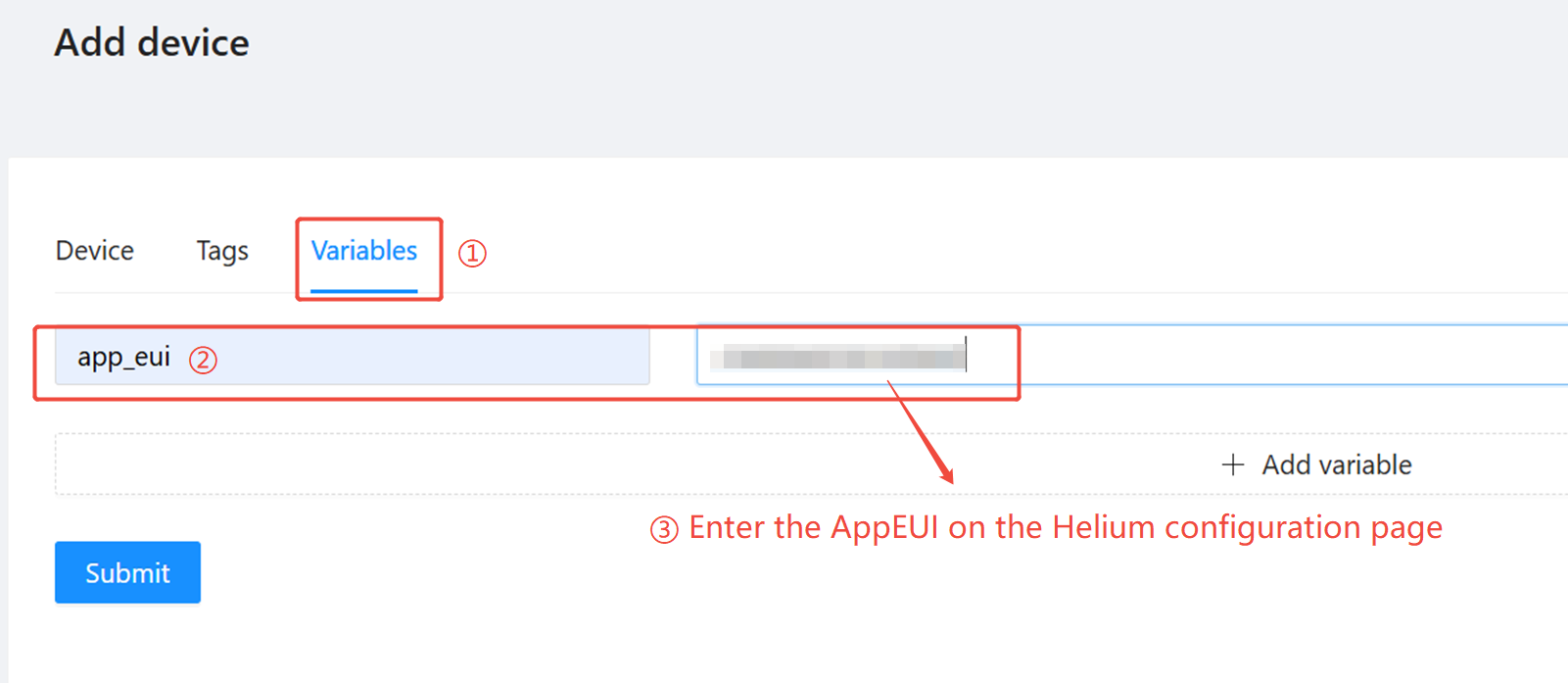

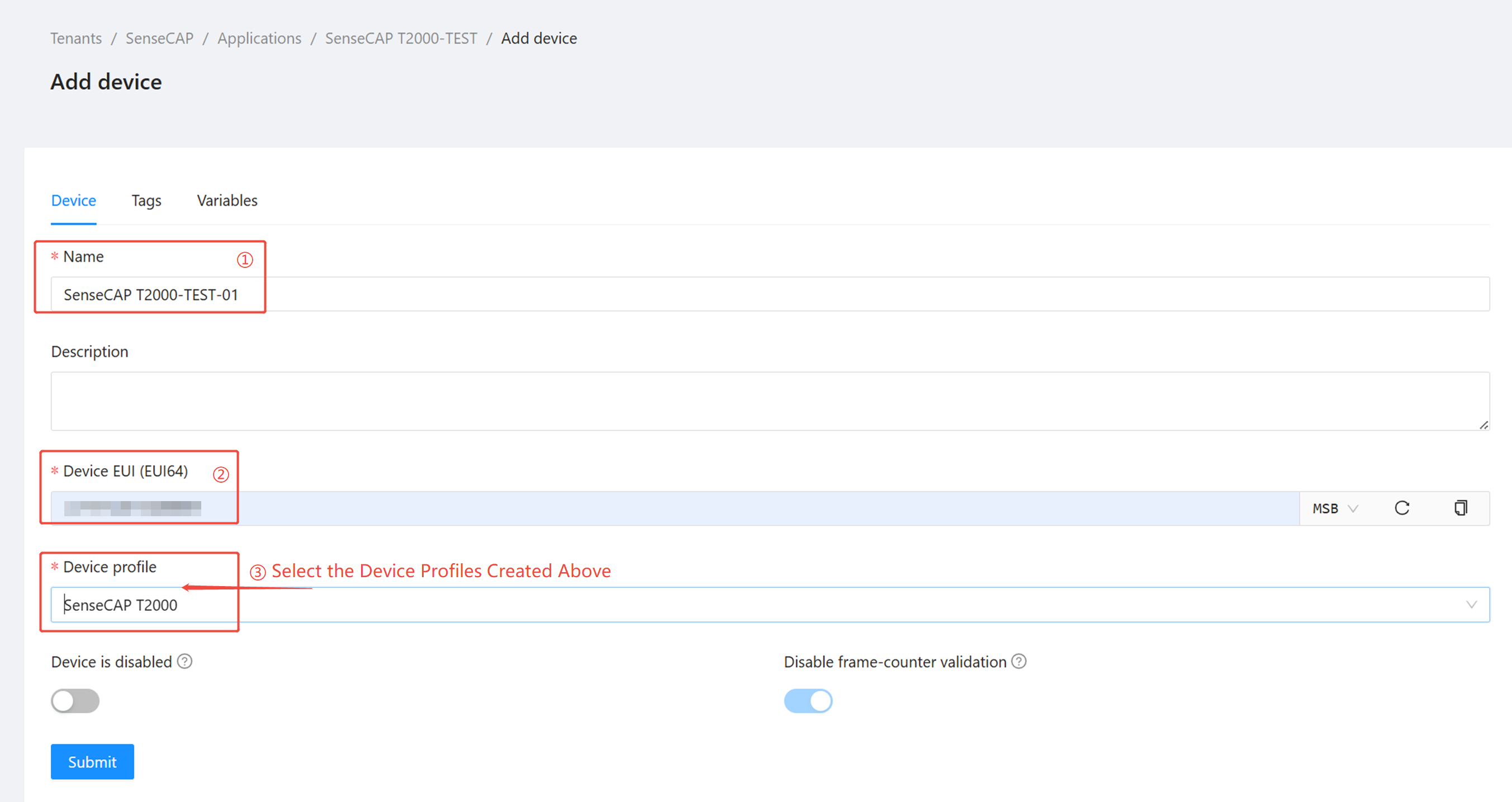

  • create device with devEUI, appKey, and a app_eui variable with the AppEUI, all three values coming from the SenseCraft App

Step 1: Add Device Profile​

The first step is to add a device profile for the T2000 Tracker to your ChirpStack LNS. This tells the LNS how to decode the packets it receives from a T2000 as well as a number of other settings.

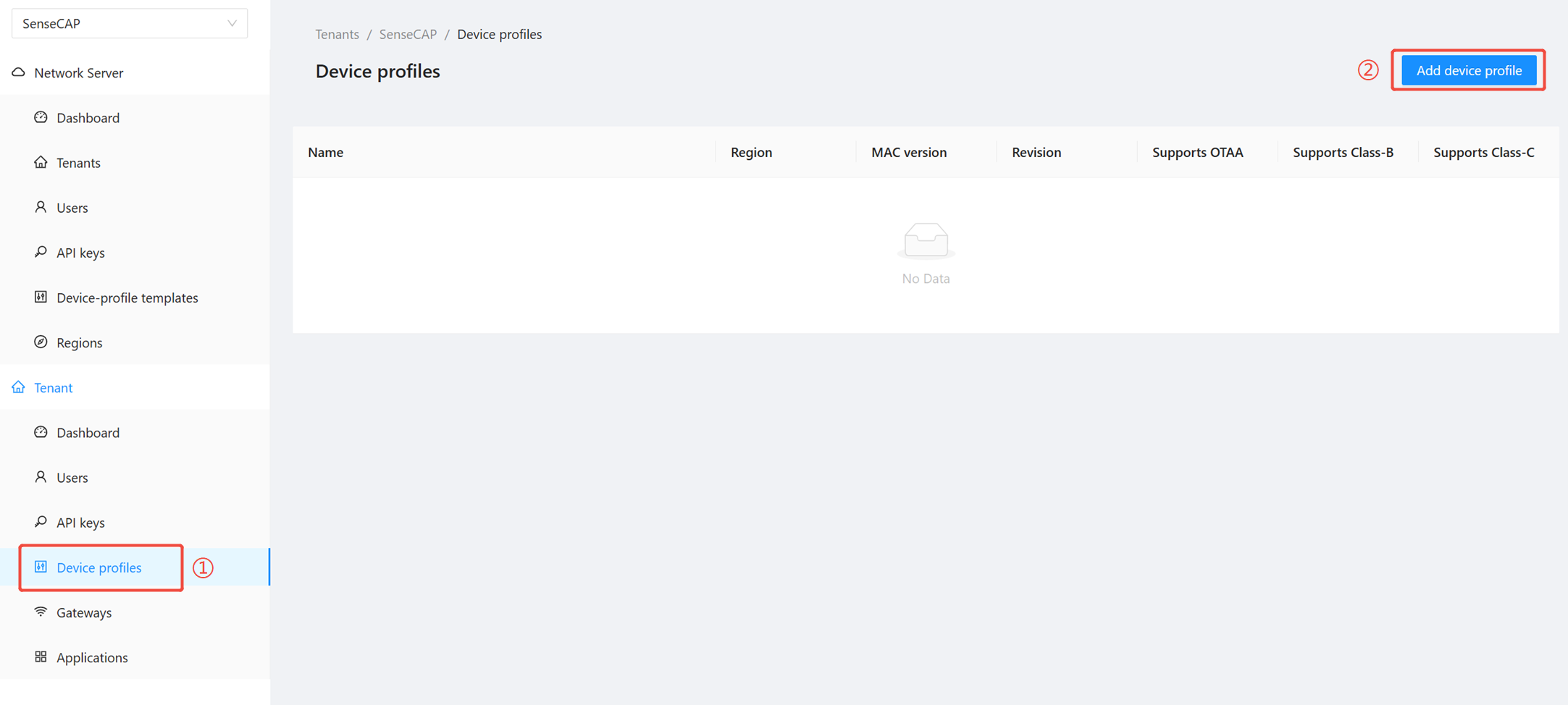

In the ChirpStack dashboard select the Device Profiles and click Add device profile.

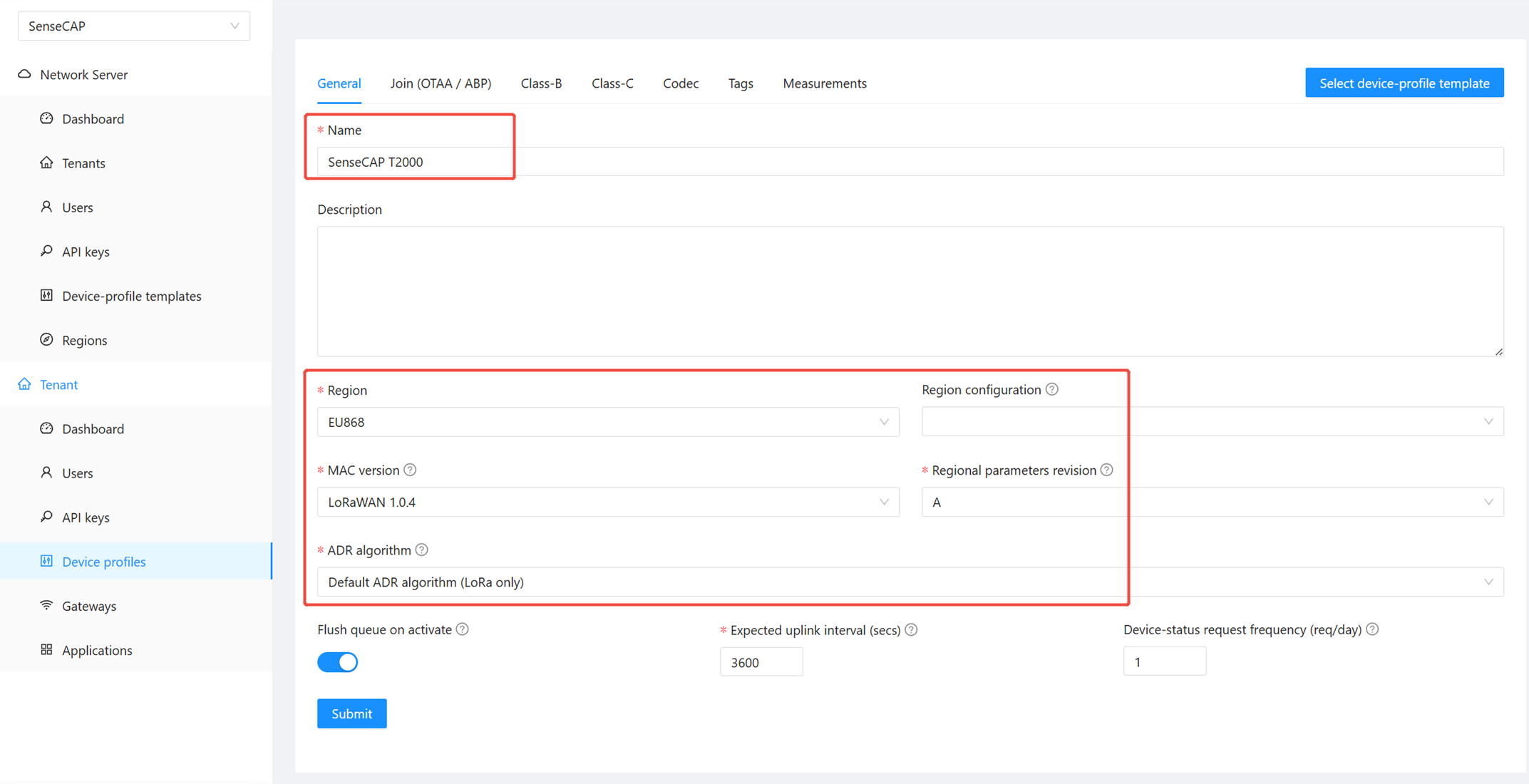

On the general tab, enter a device profile name you will recognize and select the appropriate region parameters.

note

LoRaWAN MAC version: 1.0.4

The expected uplink interval can be set too, the main thing it controls is when the LNS user interface shows the device as active vs. inactive. It has no effect on the delivery of packets through the LNS.

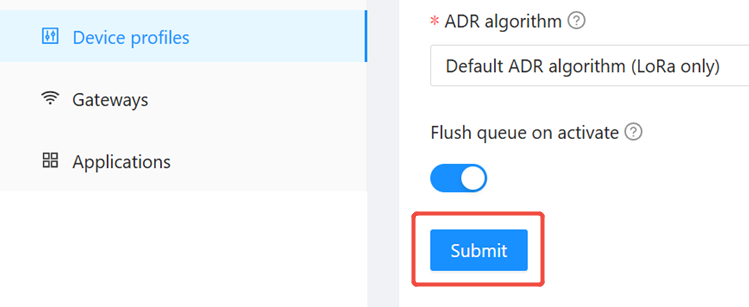

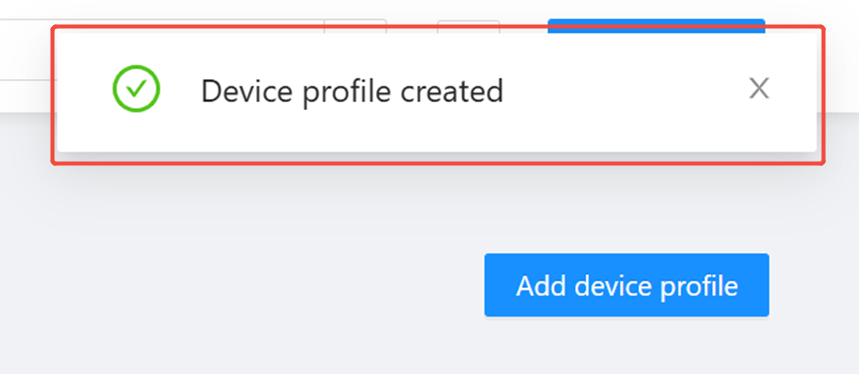

Click Submit, then you can see Device profile created.

pir

pir

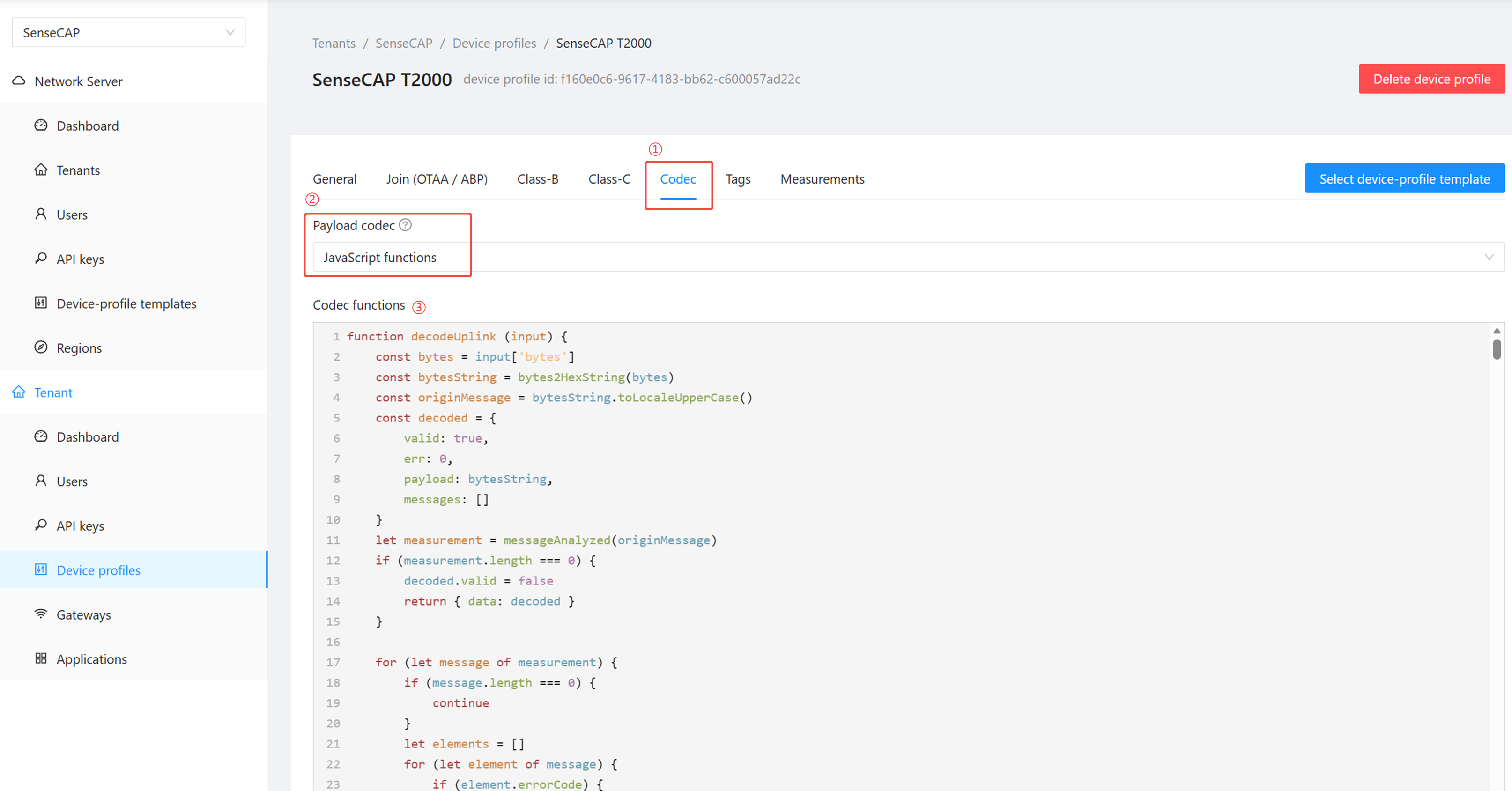

On the Codec tab select JavaScript functions and enter the codec:

Decoder for Chirpstack V4
function decodeUplink (input) {
    const bytes = input['bytes']
    const bytesString = bytes2HexString(bytes)
    const originMessage = bytesString.toLocaleUpperCase()
    const decoded = {
        valid: true,
        err: 0,
        payload: bytesString,
        messages: []
    }
    let measurement = messageAnalyzed(originMessage)
    if (measurement.length === 0) {
        decoded.valid = false
        return { data: decoded }
    }

    for (let message of measurement) {
        if (message.length === 0) {
            continue
        }
        let elements = []
        for (let element of message) {
            if (element.errorCode) {
                decoded.err = element.errorCode
                decoded.errMessage = element.error
            } else {
                elements.push(element)
            }
        }
        if (elements.length > 0) {
            decoded.messages.push(elements)
        }
    }
    return { data: decoded }
}

function messageAnalyzed (messageValue) {
    try {
        let frames = unpack(messageValue)
        let measurementResultArray = []
        for (let i = 0; i < frames.length; i++) {
            let item = frames[i]
            let dataId = item.dataId
            let dataValue = item.dataValue
            let measurementArray = deserialize(dataId, dataValue)
            measurementResultArray.push(measurementArray)
        }
        return measurementResultArray
    } catch (e) {
        return e.toString()
    }
}

function unpack (messageValue) {
    let frameArray = []
    const FIXED_LENGTH_PACKAGES = {
        '27': 92, '28': 60, '29': 24, '2A': 12, '2B': 46, '2E': 34, '31': 30, '32': 18
    }
    const DYNAMIC_LENGTH_PACKAGES = {
        '2C': {minLen: 32, scanCountPos: [30, 32], baseLen: 23, itemLen: 7},
        '2D': {minLen: 32, scanCountPos: [30, 32], baseLen: 23, itemLen: 7},
        '2F': {minLen: 20, scanCountPos: [18, 20], baseLen: 17, itemLen: 7},
        '30': {minLen: 20, scanCountPos: [18, 20], baseLen: 17, itemLen: 7}
    }

    for (let i = 0; i < messageValue.length; i++) {
        let remainMessage = messageValue
        let dataId = remainMessage.substring(0, 2).toUpperCase()
        let dataValue
        let dataObj = {}

        if (dataId === '0C') {
            dataValue = ''
            messageValue = remainMessage.substring(2)
            dataObj = {'dataId': dataId, 'dataValue': ''}
        } else if (dataId === '0D') {
            dataValue = remainMessage.substring(2, 10)
            messageValue = remainMessage.substring(10)
            dataObj = {'dataId': dataId, 'dataValue': dataValue}
        } else if (FIXED_LENGTH_PACKAGES[dataId]) {
            let packageLen = FIXED_LENGTH_PACKAGES[dataId]
            if (remainMessage.length < packageLen) {
                return frameArray
            }
            dataValue = remainMessage.substring(2, packageLen)
            messageValue = remainMessage.substring(packageLen)
            dataObj = {'dataId': dataId, 'dataValue': dataValue}
        } else if (DYNAMIC_LENGTH_PACKAGES[dataId]) {
            let config = DYNAMIC_LENGTH_PACKAGES[dataId]
            if (remainMessage.length < config.minLen) {
                return frameArray
            }
            let scanCount = parseInt(remainMessage.substring(config.scanCountPos[0], config.scanCountPos[1]), 16)
            let packageLen = (config.baseLen + (scanCount - 1) * config.itemLen) * 2
            if (remainMessage.length < packageLen) {
                return frameArray
            }
            dataValue = remainMessage.substring(2, packageLen)
            messageValue = remainMessage.substring(packageLen)
            dataObj = {'dataId': dataId, 'dataValue': dataValue}
        } else {
            return frameArray
        }

        if (dataValue.length < 2 && dataObj.dataId !== '0C') {
            break
        }
        frameArray.push(dataObj)
    }
    return frameArray
}

function deserialize (dataId, dataValue) {
    let measurementArray = []
    let eventList = []
    let timestamp = 0
    let value = null
    let motionId = 0
    let scanMax = 0
    let interval = 0
    let workMode = 0
    let heartbeatInterval = 0
    let periodicInterval = 0
    let eventInterval = 0
    switch (dataId) {
        case '0C':
            measurementArray.push({type: "timeSync"})
            break
        case '0D':
            let errorCode = getInt(dataValue)
            let error = ''
            switch (errorCode) {
                case 1:
                    error = 'FAILED TO OBTAIN THE UTC TIMESTAMP'
                    break
                case 2:
                    error = 'ALMANAC TOO OLD'
                    break
                case 3:
                    error = 'DOPPLER ERROR'
                    break
            }
            measurementArray.push({errorCode, error})
            break
        case '27':
            measurementArray.push(...getUpT2000(dataValue))
            break
        case '28':
            interval = 0
            workMode = getInt(dataValue.substring(0, 2))
            heartbeatInterval = getMinsByMin(dataValue.substring(4, 8))
            periodicInterval = getMinsByMin(dataValue.substring(8, 12))
            eventInterval = getMinsByMin(dataValue.substring(12, 16))
            switch (workMode) {
                case 0:
                    interval = heartbeatInterval
                    break
                case 1:
                    interval = periodicInterval
                    break
                case 2:
                    interval = eventInterval
                    break
            }
            measurementArray = [
                {
                    measurementId: '3940', measurementValue: workMode
                }, {
                    measurementId: '3965', measurementValue: getPositioningStrategy(dataValue.substring(2, 4))
                }, {
                    measurementId: '3942', measurementValue: heartbeatInterval
                }, {
                    measurementId: '3943', measurementValue: periodicInterval
                }, {
                    measurementId: '3944', measurementValue: eventInterval
                }, {
                    measurementId: '3974', measurementValue: getInt(dataValue.substring(16, 18))
                }, {
                    measurementId: '3976', measurementValue: getInt(dataValue.substring(18, 20))
                }, {
                    measurementId: '3977', measurementValue: getInt(dataValue.substring(20, 22))
                }, {
                    measurementId: '3900', measurementValue: interval
                }, {
                    measurementId: '3978', measurementValue: getInt(dataValue.substring(22, 24))
                }, {
                    measurementId: '3979', measurementValue: dataValue.substring(26, 26 + getInt(dataValue.substring(24, 26)) * 2)
                }
            ]
            // measurementArray.push(measurement)
            break
        case '29':
            measurementArray.push({
                measurementId: '3946', measurementValue: getInt(dataValue.substring(0, 2))
            })
            measurementArray.push({
                measurementId: '3947', measurementValue: getSensorValue(dataValue.substring(2, 6), 1)
            })
            measurementArray.push({
                measurementId: '3948', measurementValue: getMinsByMin(dataValue.substring(6, 10))
            })
            measurementArray.push({
                measurementId: '3949', measurementValue: getInt(dataValue.substring(10, 12))
            })
            measurementArray.push({
                measurementId: '3950', measurementValue: getMinsByMin(dataValue.substring(12, 16))
            })
            measurementArray.push({
                measurementId: '3951', measurementValue: getInt(dataValue.substring(16, 18))
            })
            measurementArray.push({
                measurementId: '3952', measurementValue: getInt(dataValue.substring(18, 22))
            })
            break
        case '2A':
            measurementArray.push({
                measurementId: '3000', measurementValue: getBattery(dataValue.substring(0, 2))
            })
            measurementArray.push({
                measurementId: '3940', measurementValue: getWorkingMode(dataValue.substring(2, 4))
            })
            measurementArray.push({
                measurementId: '3965', measurementValue: getPositioningStrategy(dataValue.substring(4, 6))
            })
            measurementArray.push({
                measurementId: '3974', measurementValue: getInt(dataValue.substring(6, 8))
            })
            measurementArray.push({
                measurementId: '3976', measurementValue: getInt(dataValue.substring(8, 10))
            })
            break
        case '2B':
            eventList = getEventStatus(dataValue.substring(0, 4))
            motionId = getMotionId(dataValue.substring(4, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            parseAccelerometerData(dataValue, 14, timestamp, motionId, measurementArray)
            parseLocationData(dataValue, 26, timestamp, motionId, measurementArray)
            parseBatteryData(dataValue, 42, timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
        case '2C':
        case '2D':
            eventList = getEventStatus(dataValue.substring(0, 4))
            motionId = getMotionId(dataValue.substring(4, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            parseAccelerometerData(dataValue, 14, timestamp, motionId, measurementArray)
            parseBatteryData(dataValue, 26, timestamp, motionId, measurementArray)
            scanMax = getInt(dataValue.substring(28, 30))
            parseScanData(scanMax, dataValue, 30, dataId === '2C' ? '5001' : '5002', timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
        case '2E':
            eventList = getEventStatus(dataValue.substring(0, 4))
            motionId = getMotionId(dataValue.substring(4, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            parseLocationData(dataValue, 14, timestamp, motionId, measurementArray)
            parseBatteryData(dataValue, 30, timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
        case '2F':
        case '30':
            eventList = getEventStatus(dataValue.substring(0, 4))
            motionId = getMotionId(dataValue.substring(4, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            parseBatteryData(dataValue, 14, timestamp, motionId, measurementArray)
            scanMax = getInt(dataValue.substring(16, 18))
            parseScanData(scanMax, dataValue, 18, dataId === '2F' ? '5001' : '5002', timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
        case '31':
            eventList = getEventStatus(dataValue.substring(2, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            measurementArray.push({
                measurementId: '3576',
                timestamp,
                motionId,
                measurementValue: getPositingStatus(dataValue.substring(0, 2))
            })
            parseAccelerometerData(dataValue, 14, timestamp, motionId, measurementArray)
            parseBatteryData(dataValue, 26, timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
        case '32':
            eventList = getEventStatus(dataValue.substring(2, 6))
            timestamp = getUTCTimestamp(dataValue.substring(6, 14))
            measurementArray.push({
                measurementId: '3576',
                timestamp,
                motionId,
                measurementValue: getPositingStatus(dataValue.substring(0, 2))
            })
            parseBatteryData(dataValue, 14, timestamp, motionId, measurementArray)
            parseEventData(eventList, timestamp, motionId, measurementArray)
            break
    }
    if (measurementArray.length > 0) {
        for (let frag of measurementArray) {
            if (frag.measurementId) {
                frag.type = getTypeByMeasurementId(frag.measurementId)
            }
        }
    }
    return measurementArray
}

function parseAccelerometerData (dataValue, startPos, timestamp, motionId, measurementArray) {
    const accelerometerIds = ['4210', '4211', '4212']
    for (let i = 0; i < 3; i++) {
        let value = getSignSensorValue(dataValue.substring(startPos + i * 4, startPos + (i + 1) * 4), 1)
        if (value !== null) {
            measurementArray.push({
                measurementId: accelerometerIds[i],
                timestamp,
                motionId,
                measurementValue: value
            })
        }
    }
}

function parseBatteryData (dataValue, pos, timestamp, motionId, measurementArray) {
    measurementArray.push({
        measurementId: '3000',
        timestamp,
        motionId,
        measurementValue: '' + getBattery(dataValue.substring(pos, pos + 2))
    })
}

function parseEventData (eventList, timestamp, motionId, measurementArray) {
    if (eventList && eventList.length > 0) {
        measurementArray.push({
            measurementId: '4200',
            timestamp,
            motionId,
            measurementValue: eventList
        })
    }
}

function parseLocationData (dataValue, startPos, timestamp, motionId, measurementArray) {
    measurementArray.push({
        measurementId: '4197',
        timestamp,
        motionId,
        measurementValue: '' + getSensorValue(dataValue.substring(startPos, startPos + 8), 1000000)
    })
    measurementArray.push({
        measurementId: '4198',
        timestamp,
        motionId,
        measurementValue: '' + getSensorValue(dataValue.substring(startPos + 8, startPos + 16), 1000000)
    })
}

function parseScanData (scanMax, dataValue, startPos, measurementId, timestamp, motionId, measurementArray) {
    if (scanMax && scanMax > 0) {
        measurementArray.push({
            measurementId,
            timestamp,
            motionId,
            measurementValue: getMacAndRssiObj(dataValue.substring(startPos))
        })
    }
}

function getTypeByMeasurementId (measurementId) {
    const TYPE_MAP = {
        '3000': 'Battery',
        '3502': 'Firmware Version',
        '3001': 'Hardware Version',
        '3940': 'Work Mode',
        '3965': 'Positioning Strategy',
        '3942': 'Heartbeat Interval',
        '3943': 'Periodic Interval',
        '3944': 'Event Interval',
        '3974': '3X Sensor Enable',
        '3976': 'Anti-Theft',
        '3977': 'GNSS Scan Timeout',
        '3900': 'Uplink Interval',
        '3978': 'BLE Scan Timeout',
        '3979': 'UUID Filter',
        '3946': 'Motion Enable',
        '3947': 'Any Motion Threshold',
        '3948': 'Motion Start Interval',
        '3949': 'Static Enable',
        '3950': 'Device Static Timeout',
        '3951': 'Shock Enable',
        '3952': 'Shock Threshold',
        '4210': 'AccelerometerX',
        '4211': 'AccelerometerY',
        '4212': 'AccelerometerZ',
        '4197': 'Longitude',
        '4198': 'Latitude',
        '4200': 'Event Status',
        '5001': 'Wi-Fi Scan',
        '5002': 'BLE Scan',
        '3576': 'Positioning Status'
    }
    return TYPE_MAP[measurementId] || ''
}

function getMotionId (str) {
    return getInt(str)
}

function getPositingStatus (str) {
    let status = getInt(str)
    const STATUS_MAP = {
        0: "locate successful.",
        1: "The GNSS scan timed out.",
        2: "The Wi-Fi scan timed out.",
        3: "The Wi-Fi + GNSS scan timed out.",
        4: "The GNSS + Wi-Fi scan timed out.",
        5: "The Bluetooth scan timed out.",
        6: "The Bluetooth + Wi-Fi scan timed out.",
        7: "The Bluetooth + GNSS scan timed out.",
        8: "The Bluetooth + Wi-Fi + GNSS scan timed out.",
        9: "Location Server failed to parse the GNSS location.",
        10: "Location Server failed to parse the Wi-Fi location.",
        11: "Location Server failed to parse the Bluetooth location.",
        12: "Failed to parse location due to the poor accuracy.",
        13: "Time synchronization failed.",
        14: "Failed due to the old Almanac.",
        15: "The GNSS +Bluetooth scan timed out."
    }
    if (STATUS_MAP[status] !== undefined) {
        return {id: status, statusName: STATUS_MAP[status]}
    }
    return getInt(str)
}

function getUpT2000 (messageValue) {
    let interval = 0
    let workMode = getInt(messageValue.substring(10, 12))
    let heartbeatInterval = getMinsByMin(messageValue.substring(14, 18))
    let periodicInterval = getMinsByMin(messageValue.substring(18, 22))
    let eventInterval = getMinsByMin(messageValue.substring(22, 26))
    switch (workMode) {
        case 0:
            interval = heartbeatInterval
            break
        case 1:
            interval = periodicInterval
            break
        case 2:
            interval = eventInterval
            break
    }
    let data = [
        {
            measurementId: '3000', measurementValue: getBattery(messageValue.substring(0, 2))
        }, {
            measurementId: '3502', measurementValue: getSoftVersion(messageValue.substring(2, 6))
        }, {
            measurementId: '3001', measurementValue: getHardVersion(messageValue.substring(6, 10))
        }, {
            measurementId: '3940', measurementValue: workMode
        }, {
            measurementId: '3965', measurementValue: getPositioningStrategy(messageValue.substring(12, 14))
        }, {
            measurementId: '3942', measurementValue: heartbeatInterval
        }, {
            measurementId: '3943', measurementValue: periodicInterval
        }, {
            measurementId: '3944', measurementValue: eventInterval
        }, {
            measurementId: '3974', measurementValue: getInt(messageValue.substring(26, 28))
        }, {
            measurementId: '3976', measurementValue: getInt(messageValue.substring(28, 30))
        }, {
            measurementId: '3977', measurementValue: getInt(messageValue.substring(30, 32))
        }, {
            measurementId: '3900', measurementValue: interval
        }, {
            measurementId: '3978', measurementValue: getInt(messageValue.substring(54, 56))
        }, {
            measurementId: '3979', measurementValue: messageValue.substring(58, 58 + getInt(messageValue.substring(56, 58)) * 2)
        }
    ]
    let motionSetting = getMotionSetting(messageValue.substring(32, 42))
    let staticsSetting = getStaticSetting(messageValue.substring(42, 48))
    let shockSetting = getShockSetting(messageValue.substring(48, 54))
    data = [...data, ...motionSetting, ...staticsSetting, ...shockSetting]
    return data
}

function getMotionSetting (str) {
    return [
        {measurementId: '3946', measurementValue: getInt(str.substring(0, 2))},
        {measurementId: '3947', measurementValue: getSensorValue(str.substring(2, 6), 1)},
        {measurementId: '3948', measurementValue: getMinsByMin(str.substring(6, 10))},
    ]
}

function getStaticSetting (str) {
    return [
        {measurementId: '3949', measurementValue: getInt(str.substring(0, 2))},
        {measurementId: '3950', measurementValue: getMinsByMin(str.substring(2, 6))}
    ]
}

function getShockSetting (str) {
    return [
        {measurementId: '3951', measurementValue: getInt(str.substring(0, 2))},
        {measurementId: '3952', measurementValue: getInt(str.substring(2, 6))}
    ]
}

function getBattery (batteryStr) {
    return loraWANV2DataFormat(batteryStr)
}
function getSoftVersion (softVersion) {
    return `${loraWANV2DataFormat(softVersion.substring(0, 2))}.${loraWANV2DataFormat(softVersion.substring(2, 4))}`
}
function getHardVersion (hardVersion) {
    return `${loraWANV2DataFormat(hardVersion.substring(0, 2))}.${loraWANV2DataFormat(hardVersion.substring(2, 4))}`
}

function getMinsByMin (str) {
    return getInt(str)
}

function getSensorValue (str, dig) {
    if (str === '8000') {
        return null
    } else {
        return loraWANV2DataFormat(str, dig)
    }
}

function isNull (str) {
    if (str.substring(0, 1) !== '8') {
        return false
    }
    for (let i = 1; i < str.length; i++) {
        if (str.substring(i, i + 1) !== '0') {
            return false
        }
    }
    return true
}

function getSignSensorValue (str, dig = 1) {
    if (isNull(str)) {
        return null
    }
    return loraWANV2DataFormat(str, dig)
}

function bytes2HexString (arrBytes) {
    var str = ''
    for (var i = 0; i < arrBytes.length; i++) {
        var tmp
        var num = arrBytes[i]
        if (num < 0) {
            tmp = (255 + num + 1).toString(16)
        } else {
            tmp = num.toString(16)
        }
        if (tmp.length === 1) {
            tmp = '0' + tmp
        }
        str += tmp
    }
    return str
}
function loraWANV2DataFormat (str, divisor = 1) {
    let strReverse = bigEndianTransform(str)
    let str2 = toBinary(strReverse)
    if (str2.substring(0, 1) === '1') {
        let arr = str2.split('')
        let reverseArr = arr.map((item) => {
            if (parseInt(item) === 1) {
                return 0
            } else {
                return 1
            }
        })
        str2 = parseInt(reverseArr.join(''), 2) + 1
        return parseFloat('-' + str2 / divisor)
    }
    return parseInt(str2, 2) / divisor
}

function bigEndianTransform (data) {
    let dataArray = []
    for (let i = 0; i < data.length; i += 2) {
        dataArray.push(data.substring(i, i + 2))
    }
    return dataArray
}

function toBinary (arr) {
    let binaryData = arr.map((item) => {
        let data = parseInt(item, 16)
            .toString(2)
        let dataLength = data.length
        if (data.length !== 8) {
            for (let i = 0; i < 8 - dataLength; i++) {
                data = `0` + data
            }
        }
        return data
    })
    return binaryData.toString().replace(/,/g, '')
}

function getMacAndRssiObj (pair) {
    let pairs = []
    if (pair.length % 14 === 0) {
        for (let i = 0; i < pair.length; i += 14) {
            let mac = getMacAddress(pair.substring(i, i + 12))
            if (mac) {
                let rssi = getInt8RSSI(pair.substring(i + 12, i + 14))
                pairs.push({mac: mac, rssi: rssi})
            } else {
                continue
            }
        }
    }
    return pairs
}

function getMacAddress (str) {
    if (str.toLowerCase() === 'ffffffffffff') {
        return null
    }
    let macArr = []
    for (let i = 1; i < str.length; i++) {
        if (i % 2 === 1) {
            macArr.push(str.substring(i - 1, i + 1))
        }
    }
    let mac = ''
    for (let i = 0; i < macArr.length; i++) {
        mac = mac + macArr[i]
        if (i < macArr.length - 1) {
            mac = mac + ':'
        }
    }
    return mac
}

function getInt8RSSI (str) {
    return loraWANV2DataFormat(str)
}

function getInt (str) {
    return parseInt(str, 16)
}

function getEventStatus (str) {
    let bitStr = getByteArray(str)
    let bitArr = []
    for (let i = 0; i < bitStr.length; i++) {
        bitArr[i] = bitStr.substring(i, i + 1)
    }
    bitArr = bitArr.reverse()
    const EVENT_MAP = {
        0: {id: 1, eventName: "Start moving event."},
        1: {id: 2, eventName: "End movement event."},
        2: {id: 3, eventName: "Motionless event."},
        3: {id: 4, eventName: "Shock event."},
        4: {id: 5, eventName: "Temperature event."},
        5: {id: 6, eventName: "Light event."},
        6: {id: 7, eventName: "SOS event."},
        7: {id: 8, eventName: "Press once event."},
        8: {id: 9, eventName: "disassembled event"}
    }
    let event = []
    for (let i = 0; i < bitArr.length; i++) {
        if (bitArr[i] === '1' && EVENT_MAP[i]) {
            event.push(EVENT_MAP[i])
        }
    }
    return event
}

function getByteArray (str) {
    let bytes = []
    for (let i = 0; i < str.length; i += 2) {
        bytes.push(str.substring(i, i + 2))
    }
    return toBinary(bytes)
}

function getWorkingMode (workingMode) {
    return getInt(workingMode)
}

function getPositioningStrategy (strategy) {
    return getInt(strategy)
}

function getUTCTimestamp(str){
    return parseInt(loraWANV2PositiveDataFormat(str)) * 1000
}

function loraWANV2PositiveDataFormat (str, divisor = 1) {
    let strReverse = bigEndianTransform(str)
    let str2 = toBinary(strReverse)
    return parseInt(str2, 2) / divisor
}

pir

Step 2: Add Application and Your Device​

The next step is to create an application and add actual devices to it.

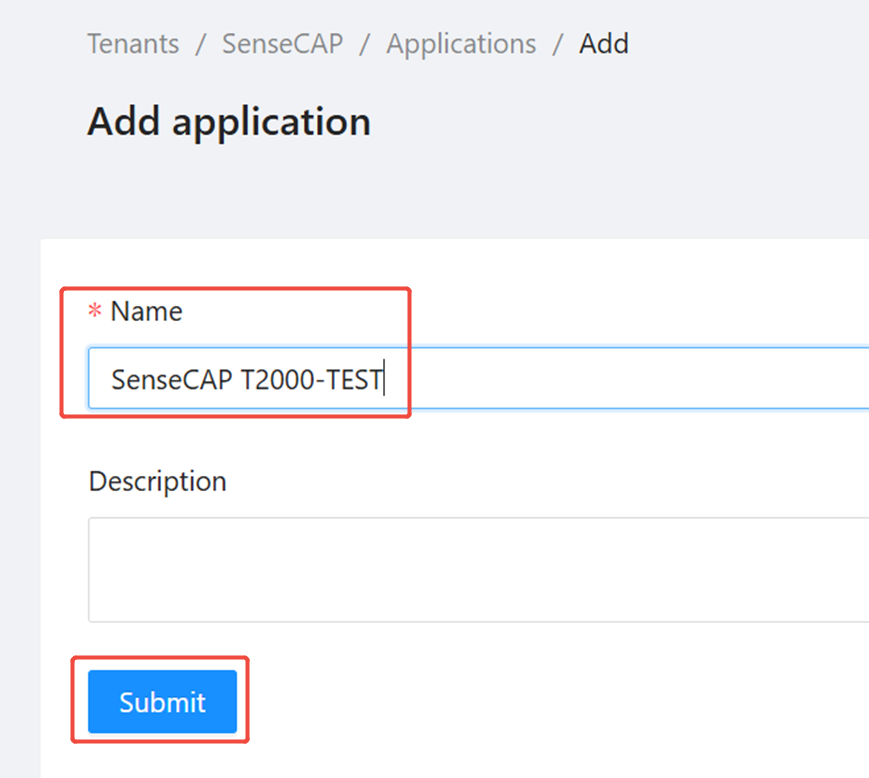

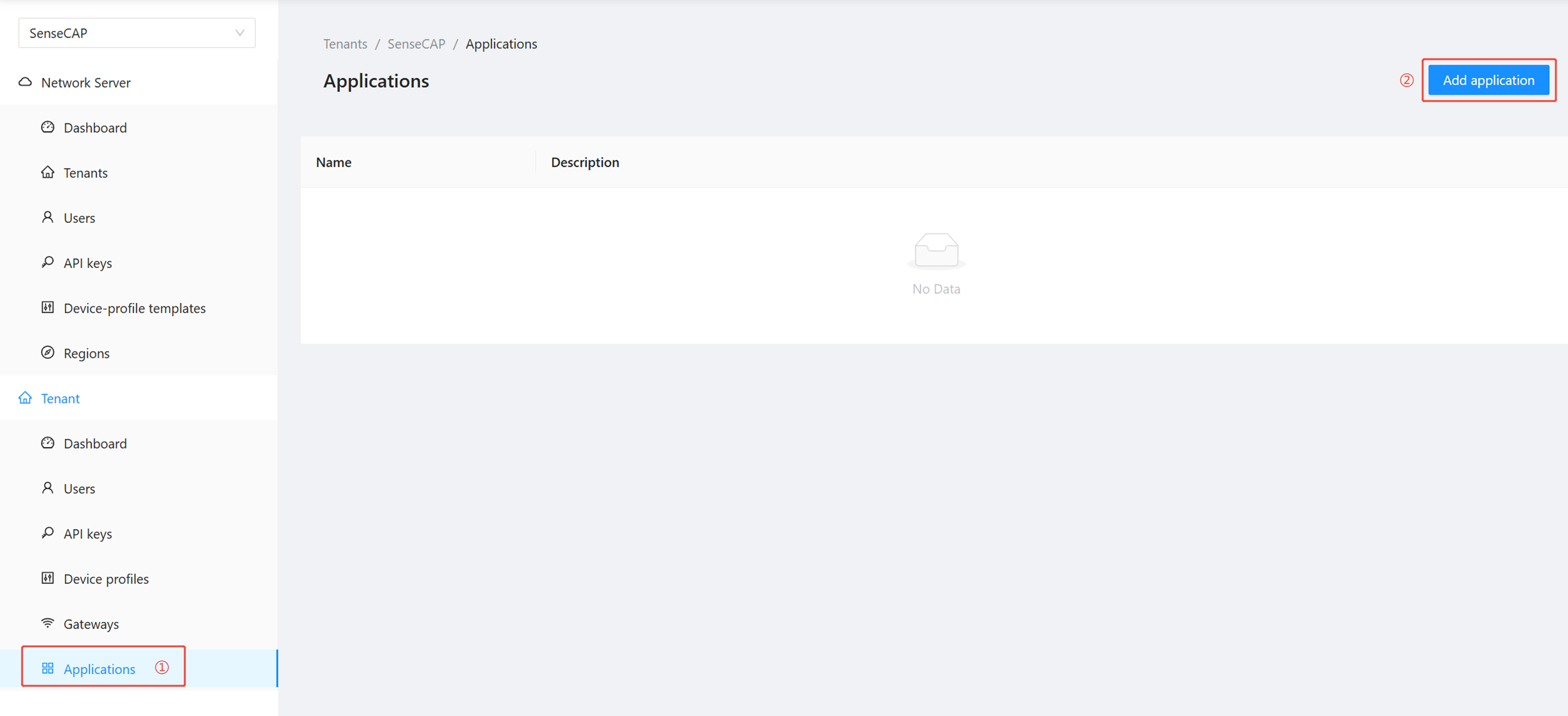

Go to the Applications section and add a new application.


pir

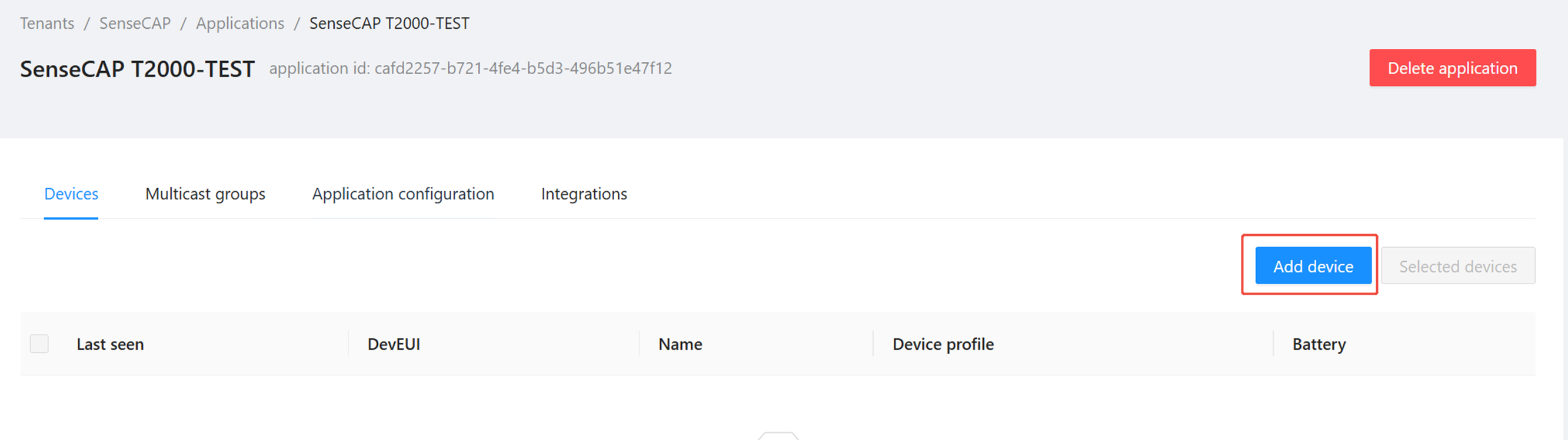

Then add a device to the application and enter the devEUI as captured in the SenseCraft App earlier.

pir


On the variables tab add a variable called app_eui with the AppEUI from the SenseCraft app as value:

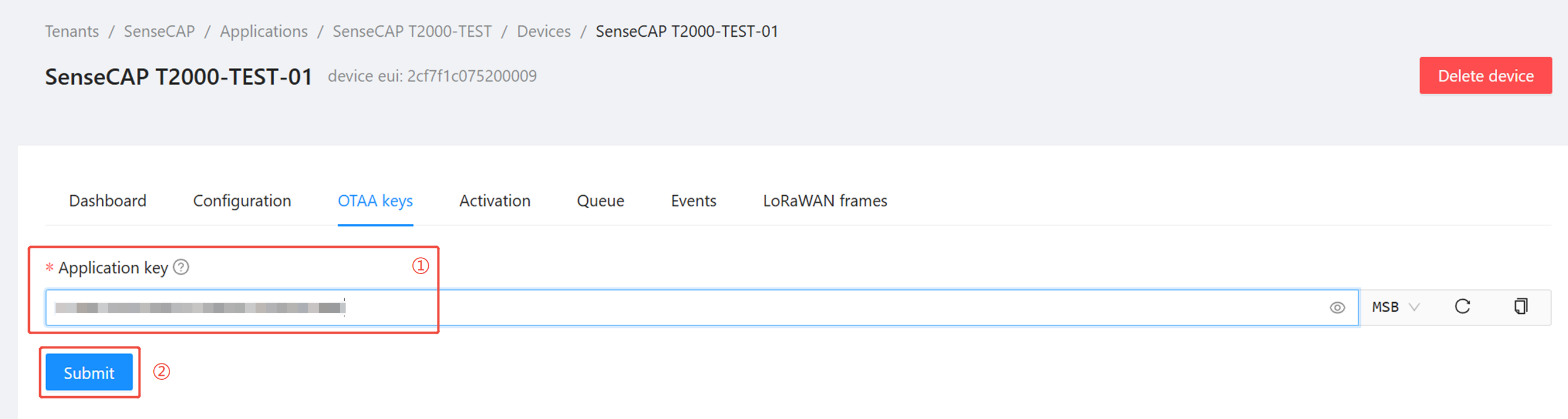

Hitting submit will bring up a page asking for the AppKey, again as captured earlier using the SenseCraft app.


Step 3: View the Device Connection​

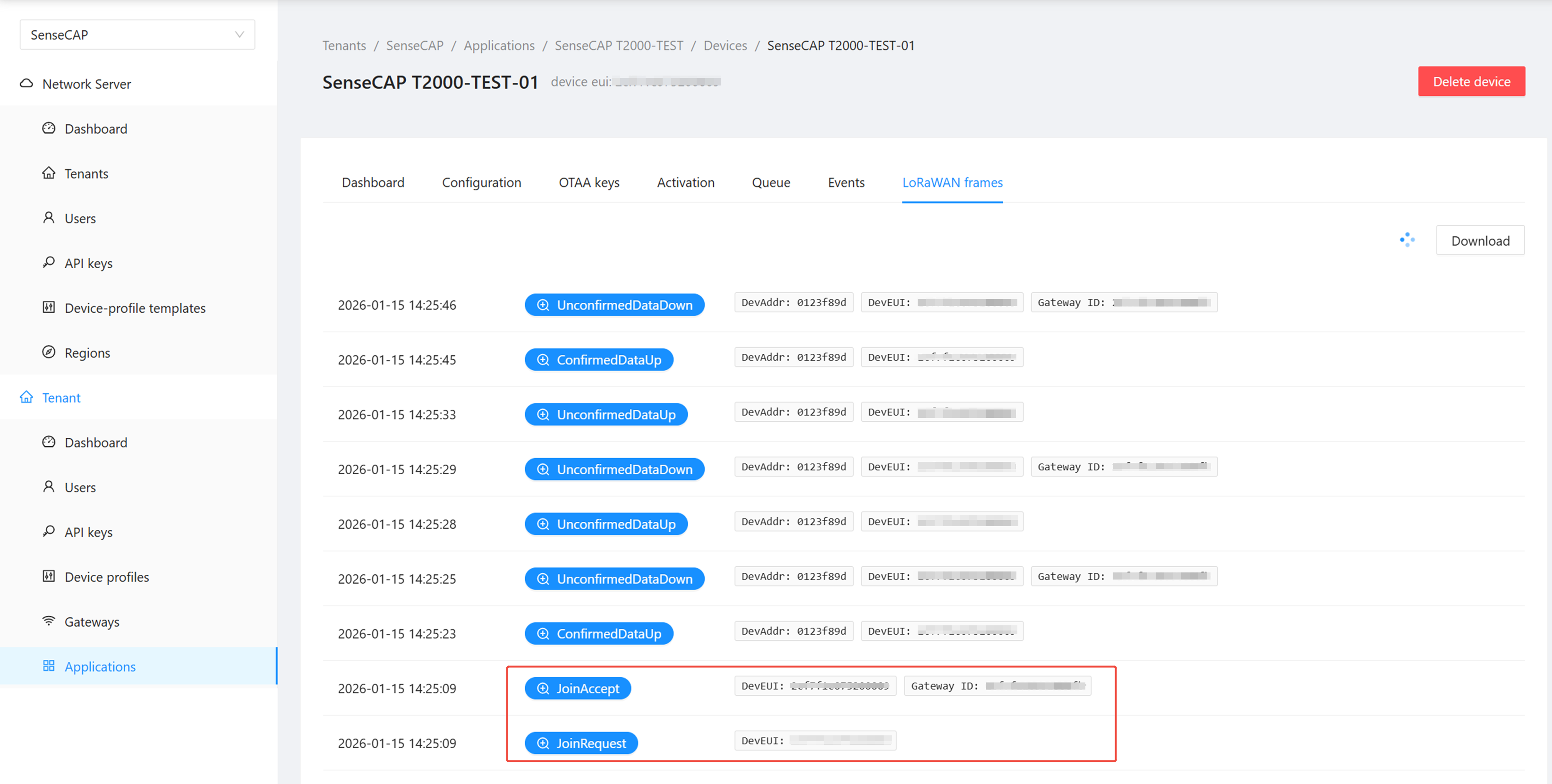

On the LoRaWAN frames tab you will see a spinner and then packets show up as they are received/sent.

When you see JoinAccept and JoinRequest, it indicates that the T2000 has successfully joined the network.


Once the join process has been performed the T1000 sends data. The LNS responds back with some information about the network frequencies and such, but subsequent to that there should only be uplinks with data.

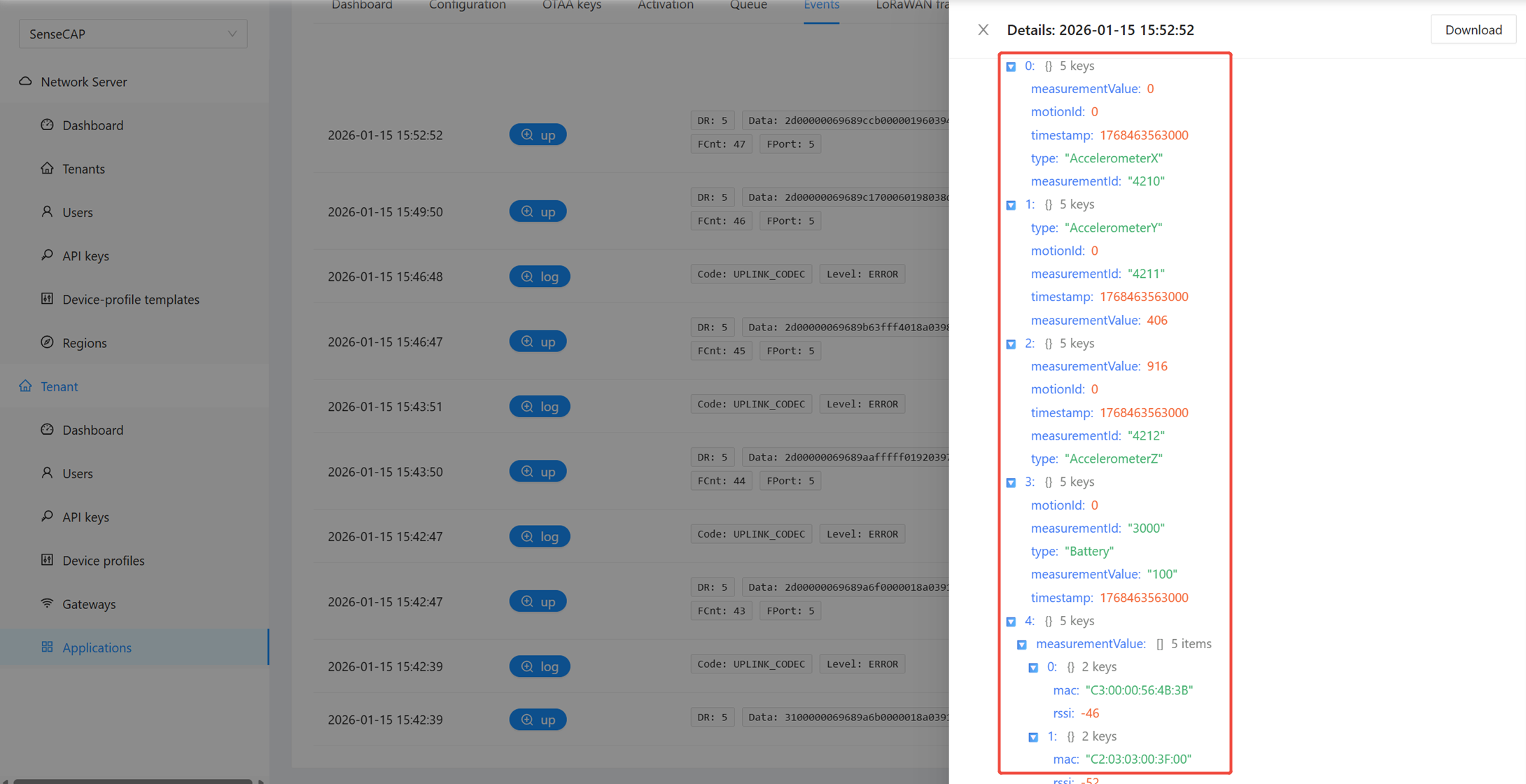

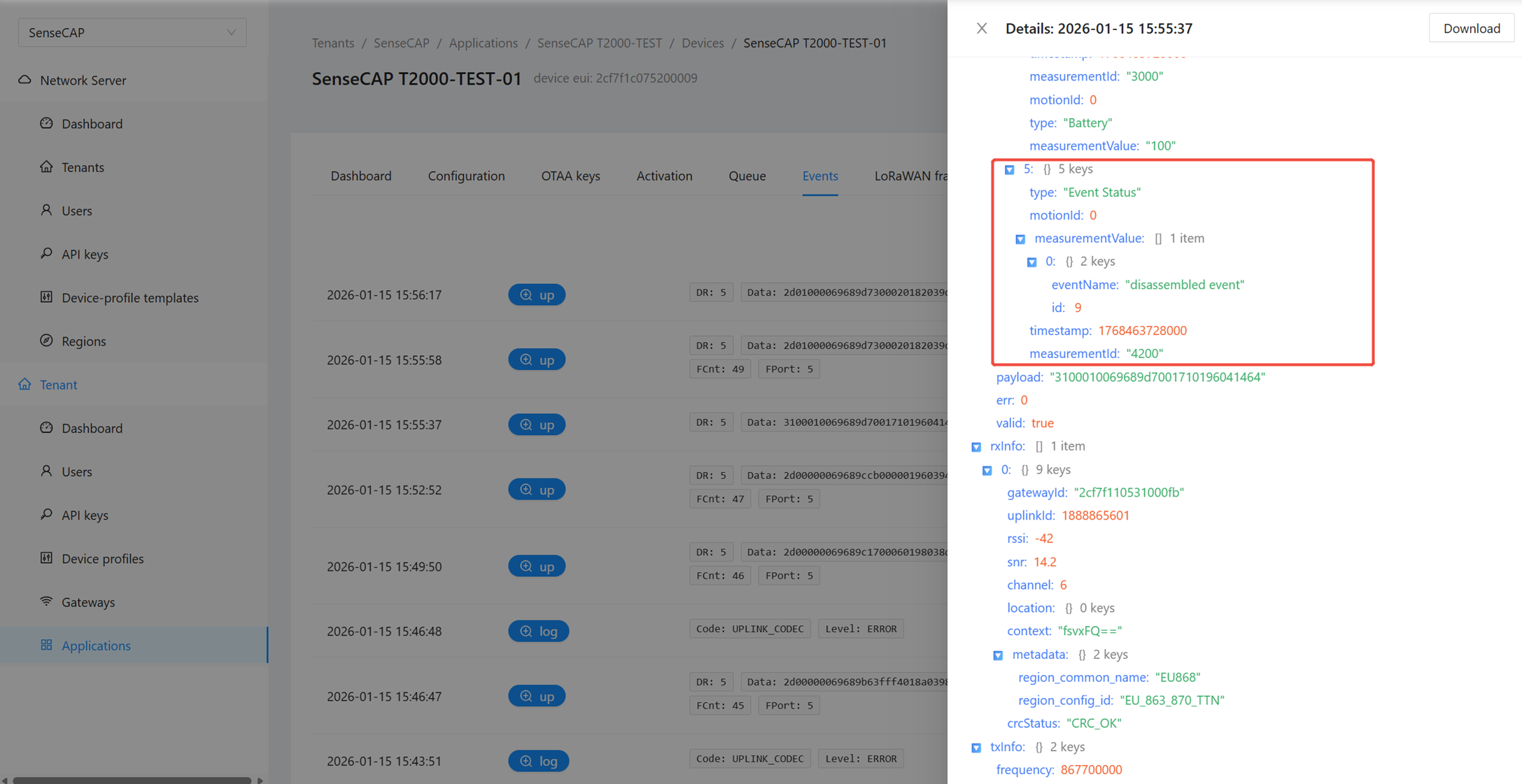

On the Events page, you can view the decoded data from the device.

image image

Resource​

SenseCAP T2000 Tracker Decoder for Helium

Tech Support & Product Discussion​

Thank you for choosing our products! We are here to provide you with different support to ensure that your experience with our products is as smooth as possible. We offer several communication channels to cater to different preferences and needs.

Loading Comments...
