Crowd Tracking & Counting

This guide is for NVIDIA Jetson Ubuntu 22 + JetPack 6.x environments, helping you quickly complete the deployment.

📋 Environment Requirements

• Device: NVIDIA Jetson series (Nano, Xavier, Orin, etc.)
• System: Ubuntu 22.x + JetPack 6.x
• Network: Able to access GitHub and Docker Hub
• Permissions: sudo privileges

If your device is not yet installed with the proper system environment, please refer to the official flashing guide for system installation and environment preparation:
JetPack Flashing Tutorial (Seeed Studio)

⚡ One-Click Deployment

Run the following command on your Jetson device terminal:

curl -fsSL https://raw.githubusercontent.com/Seeed-Studio/SenseCraft-AI_Server/refs/heads/jetson/scripts/install.sh | bash

💡 The script supports idempotent execution, meaning it is safe to run multiple times.

🔍 Deployment Process

The script automatically performs the following steps:

1. Install Docker (27.x)

   • Check if Docker is installed
   • If installed but not version 27.x → automatically uninstall and reinstall
   • Configure NVIDIA Container Toolkit
   • Set Docker default runtime to nvidia

2. Install MQTT Broker

   • Install mosquitto and mosquitto-clients

   • Configure to allow external access:

     listener 1883 0.0.0.0
     allow_anonymous true

3. Deploy SenseCraft AI Server

   • Clone the specified branch to ~/sensecraft-ai_server
   • Run scripts/run.sh to start the service
   • Download YOLOv11 model to ~/sensecraft-ai_server/models/yolo11n.pt

---

🛡 Exception Handling

• Idempotent execution:
  • Most issues (e.g., network interruptions, partial installation failures) can be fixed by simply re-running the script
  • The script checks software versions and configurations, only installing missing or incorrect parts
• Rare issues (e.g., permanent apt source failure, unreachable external repository) require manual intervention

---

🖥 Starting & Accessing the Service

1. Start the service

   cd ~/sensecraft-ai_server
   sudo bash scripts/run.sh

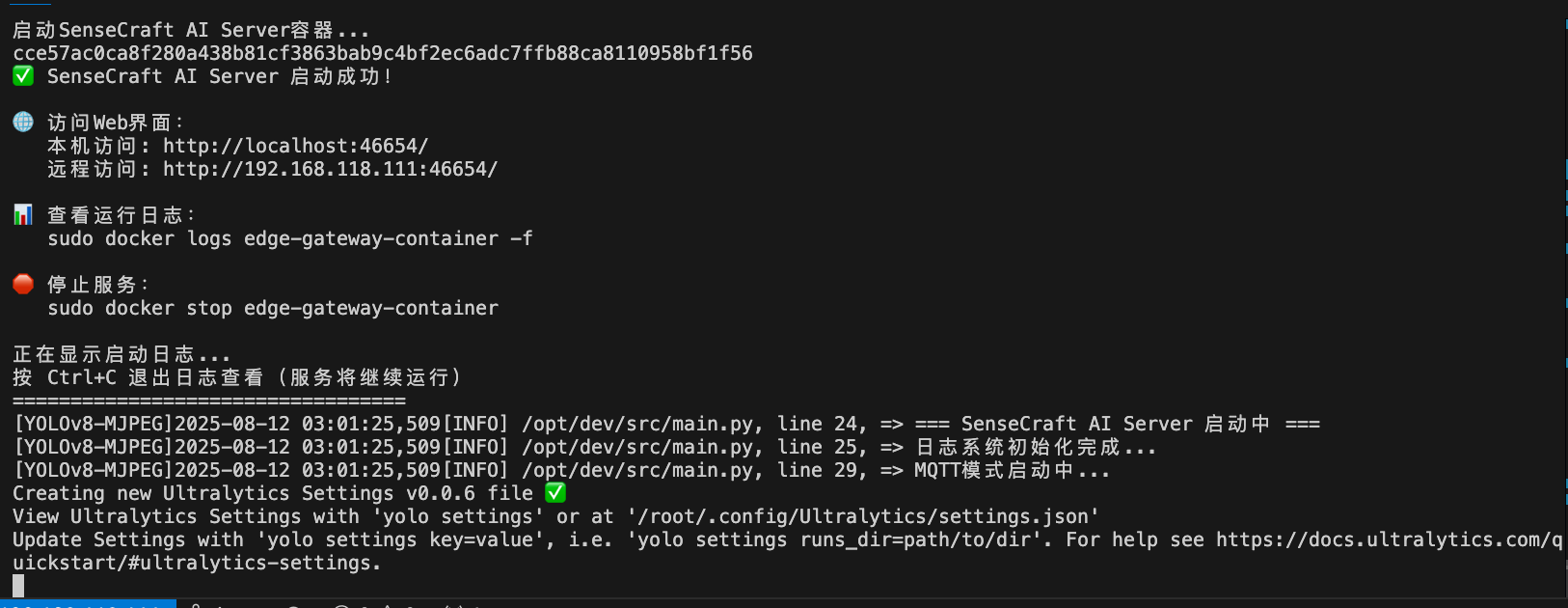

📷 Command Line Output (Example)

2. Access the main page

   • In your browser:

     http://<JETSON_IP>:46654

   • Default parameters are preconfigured; start to see results

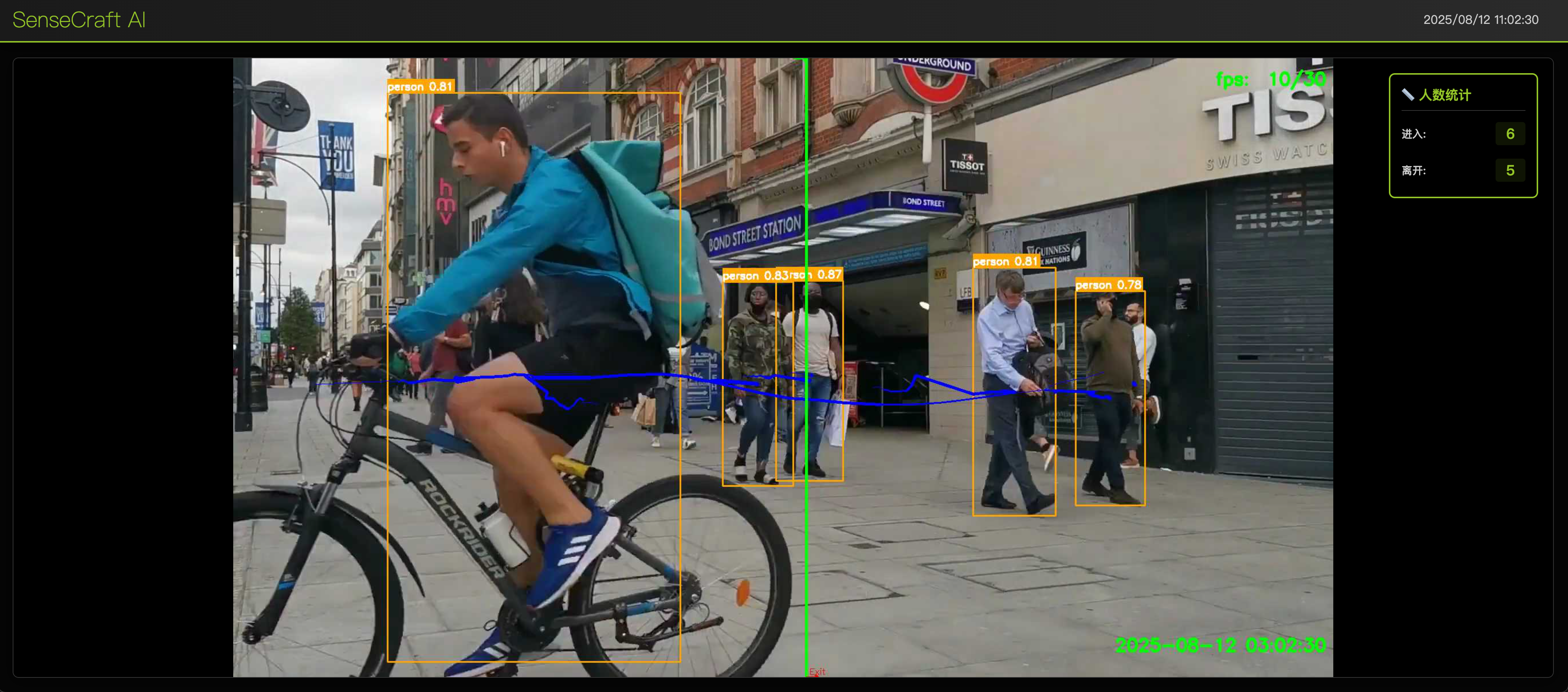

📷 Web Interface (Example)

3. Access the configuration page

   • In your browser:

     http://<JETSON_IP>:46654/config.html

   • Here you can adjust video sources, models, inference parameters, etc., and save them to the server

⚙ Configuration Page Overview

📷 Configuration Page (Example)

✨ Detection Result Retrieval

When deploying the service, a local MQTT broker is installed. Therefore, the recognition results can be obtained through the local MQTT.

📡 MQTT Message Push Topic

edgeai/result

🧩 MQTT Message Data Structure

{
  "uuid": "0c7ef3d9-617d-4e6b-83f6-467f89b28d78", // result's uuid
  "info": {
    "person": 6 // object count
  },
  "line_crossing": {
    "enter": 1, // enter count
    "exit": 0   // exit count
  }
}

🔧 Node-RED Configuration

It may be necessary to calibrate the IP of the MQTT broker. In this case, Node-RED is deployed in a container, so the docker0 address is used.

🔧 Node-RED Configuration (Full Flow)

It may be necessary to calibrate the IP of the MQTT broker.
In this case, Node-RED is deployed in a container, so the docker0 address is used.

[{
  "id": "f7641cb7c6a84d23",
  "type": "mqtt in",
  "z": "827a3420678b76d2",
  "name": "",
  "topic": "edgeai/result",
  "qos": "2",
  "datatype": "auto-detect",
  "broker": "0f948328c1975515",
  "nl": false,
  "rap": true,
  "rh": 0,
  "inputs": 0,
  "x": 530,
  "y": 620,
  "wires": [
    ["c086c2dfcc39b708"]
  ]
},
{
  "id": "c086c2dfcc39b708",
  "type": "ui-template",
  "z": "827a3420678b76d2",
  "group": "e33e8e2eb3424d08",
  "page": "",
  "ui": "",
  "name": "human tracking",
  "order": 0,
  "width": 0,
  "height": 0,
  "head": "",
  "format": "<template>\n    <div>\n        <!-- Conditional Styling using Attribute Binding (\":\") -->\n        <!-- and rendering content inside <tags></tags> with {{ }} -->\n        <p> <span :style=\"{'color' : (count > 5 ? 'red' : 'green' )}\">Current Count: {{ msg.payload.info.person }}</span>\n            <span style=\"margin-left:20px\"><b v-if=\"msg.payload.info.person > 5\">Too many!</b> </span>\n        </p>\n        <!-- Computed Rendering using Vue Computed Variables -->\n        <p class=\"my-class\">enter: {{ msg.payload.line_crossing.enter }}</p>\n        <p class=\"my-class\">exit: {{ msg.payload.line_crossing.exit }}</p>\n        <!-- Conditional Rendering with \"v-if\" -->\n    </div>\n</template>\n\n<script>\n    export default {\n        data() {\n            // define variables available component-wide\n            // (in <template> and component functions)\n            return {\n                count: 0\n            }\n        },\n        watch: {\n            // watch for any changes of \"count\"\n            count: function () {\n                if (this.count % 5 === 0) {\n                    this.send({payload: 'Multiple of 5'})\n                }\n            }\n        },\n        computed: {\n            // automatically compute this variable\n            // whenever VueJS deems appropriate\n            formattedCount: function () {\n                return this.count + ' Apples'\n            }\n        },\n        methods: {\n            // expose a method to our <template> and Vue Application\n            increase: function () {\n                this.count++\n            }\n        },\n        mounted() {\n            // code here when the component is first loaded\n        },\n        unmounted() {\n            // code here when the component is removed from the Dashboard\n            // i.e. when the user navigates away from the page\n        }\n    }\n</script>\n<style>\n    /* define any styles here - supports raw CSS */\n    .my-class {\n        color: red;\n    }\n</style>",
  "storeOutMessages": true,
  "passthru": true,
  "resendOnRefresh": true,
  "templateScope": "local",
  "className": "",
  "x": 740,
  "y": 620,
  "wires": [[]]
},
{
  "id": "0f948328c1975515",
  "type": "mqtt-broker",
  "name": "",
  "broker": "172.17.0.1",
  "port": 1883,
  "clientid": "",
  "autoConnect": true,
  "usetls": false,
  "protocolVersion": 4,
  "keepalive": 15,
  "cleansession": true,
  "autoUnsubscribe": true,
  "birthTopic": "",
  "birthQos": "0",
  "birthPayload": "",
  "birthMsg": {},
  "closeTopic": "",
  "closePayload": "",
  "closeMsg": {},
  "willTopic": "",
  "willQos": "0",
  "willPayload": "",
  "willMsg": {},
  "userProps": "",
  "sessionExpiry": ""
},
{
  "id": "e33e8e2eb3424d08",
  "type": "ui-group",
  "name": "人流追踪",
  "page": "h1i2j3k4l5m6n7o8",
  "width": "8",
  "height": "8",
  "order": -1,
  "showTitle": true,
  "className": "",
  "visible": "true",
  "disabled": "false",
  "groupType": "default"
},
{
  "id": "h1i2j3k4l5m6n7o8",
  "type": "ui-page",
  "name": "Frigate Page",
  "ui": "f121584d21d465f1",
  "path": "/frigate",
  "icon": "",
  "layout": "grid",
  "theme": "6666b6af5668e7b2",
  "breakpoints": [
    {"name": "Default","px": "0","cols": "3"},
    {"name": "Tablet","px": "576","cols": "6"},
    {"name": "Small Desktop","px": "768","cols": "9"},
    {"name": "Desktop","px": "1024","cols": "12"}
  ],
  "order": 1,
  "className": "",
  "visible": "true",
  "disabled": "false"
},
{
  "id": "f121584d21d465f1",
  "type": "ui-base",
  "name": "My Dashboard",
  "path": "/dashboard",
  "headerContent": "page",
  "titleBarStyle": "default",
  "showReconnectNotification": true,
  "notificationDisplayTime": 5,
  "showDisconnectNotification": true,
  "allowInstall": true
},
{
  "id": "6666b6af5668e7b2",
  "type": "ui-theme",
  "name": "Default Theme",
  "colors": {
    "surface": "#ffffff",
    "primary": "#0094CE",
    "bgPage": "#eeeeee",
    "groupBg": "#ffffff",
    "groupOutline": "#cccccc"
  },
  "sizes": {
    "density": "default",
    "pagePadding": "12px",
    "groupGap": "12px",
    "groupBorderRadius": "4px",
    "widgetGap": "12px"
  }
},
{
  "id": "e9696690fa075863",
  "type": "global-config",
  "env": [],
  "modules": {
    "@flowfuse/node-red-dashboard": "1.26.0"
  }
}]

📊 Node-RED Dashboard Preview

Video Source

• Supports local video files, USB cameras (default first device), RTSP streams
• Supports MP4, AVI, MOV, MKV uploads
• View and delete uploaded video sources

AI Model

• Select from available AI inference models
• Supports .pt, .pth, .onnx, .engine formats
• View and delete uploaded models

Inference Parameters

• Confidence threshold: 0.1–1.0
• Max detections: 1–1000
• Half-precision inference: boosts speed (minimal difference for small models)

Display

• Show detection boxes (customizable color, default orange)
• Timestamp & FPS always enabled

Tracking

• Enable multi-object tracking
• Show trajectory lines with customizable length, thickness, and color

Tripwire Detection

• Supports horizontal or vertical tripwire (vertical recommended)
• Draw start/end points; enable display for real-time debugging
• Tolerance: 1–20 pixels
• Customizable color & thickness
• Show/hide and reset counter (resets when service restarts)

Configuration Management

• Save current config to the server (loaded at runtime)
• Export/import configuration files
• Restore default settings

---

🛠 Common Issues

Issue	Cause	Solution
Docker installation failed	Unstable network or source	Check network and re-run the script
Mosquitto cannot connect	Firewall/config issue	Ensure /etc/mosquitto/mosquitto.conf contains listener 1883 0.0.0.0
YOLO model not downloaded	Network interruption	Delete ~/sensecraft-ai_server/models/yolo11n.pt and re-run the script

---

📦 Uninstalling the Service

# Uninstall MQTT
sudo apt remove -y mosquitto mosquitto-clients

# Uninstall Docker
sudo apt-get purge -y docker-ce docker-ce-cli containerd.io docker-buildx-plugin docker-compose-plugin docker-ce-rootless-extras

# Remove service directory
rm -rf ~/sensecraft-ai_server

---

📚 References

• Jetson Flashing Guide
• SenseCraft-AI_Server Source Repository
• NVIDIA Jetson Docker Guide
• Mosquitto Official Documentation
