Seeed Studio XIAO nRF54L15 Sense BLE Usage

nRF COnnect SDK​

This Bluetooth advertising tutorial is based on the official sample code modified to run on the Nordic Connect SDK. With our development board combined with the official documentation, you can dive into more Bluetooth applications.

While the phone is not connected to the XIAO nRF54L15, the on-board indicator will remain permanently lit. Once the phone is successfully connected, the indicator will begin flashing to indicate that a connection has been established.

XIAO nRF54L15 Ultra-low Power Consumption in System Off Mode

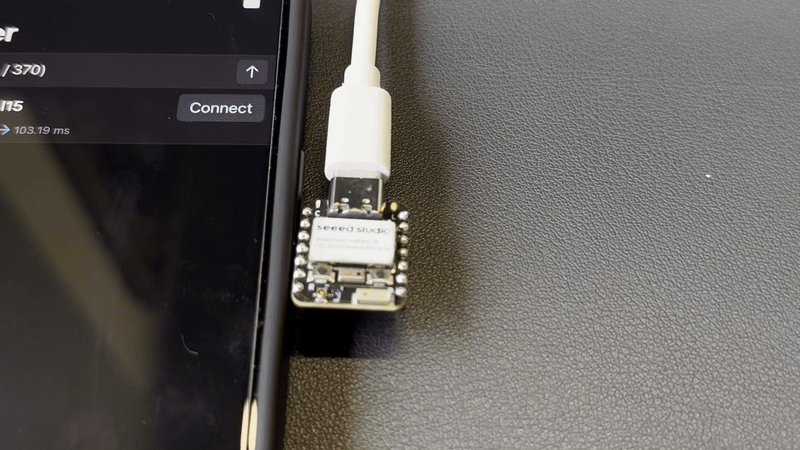

Cell Phone Connection XIAO nRF54L15

BLE Advertising Software Install​

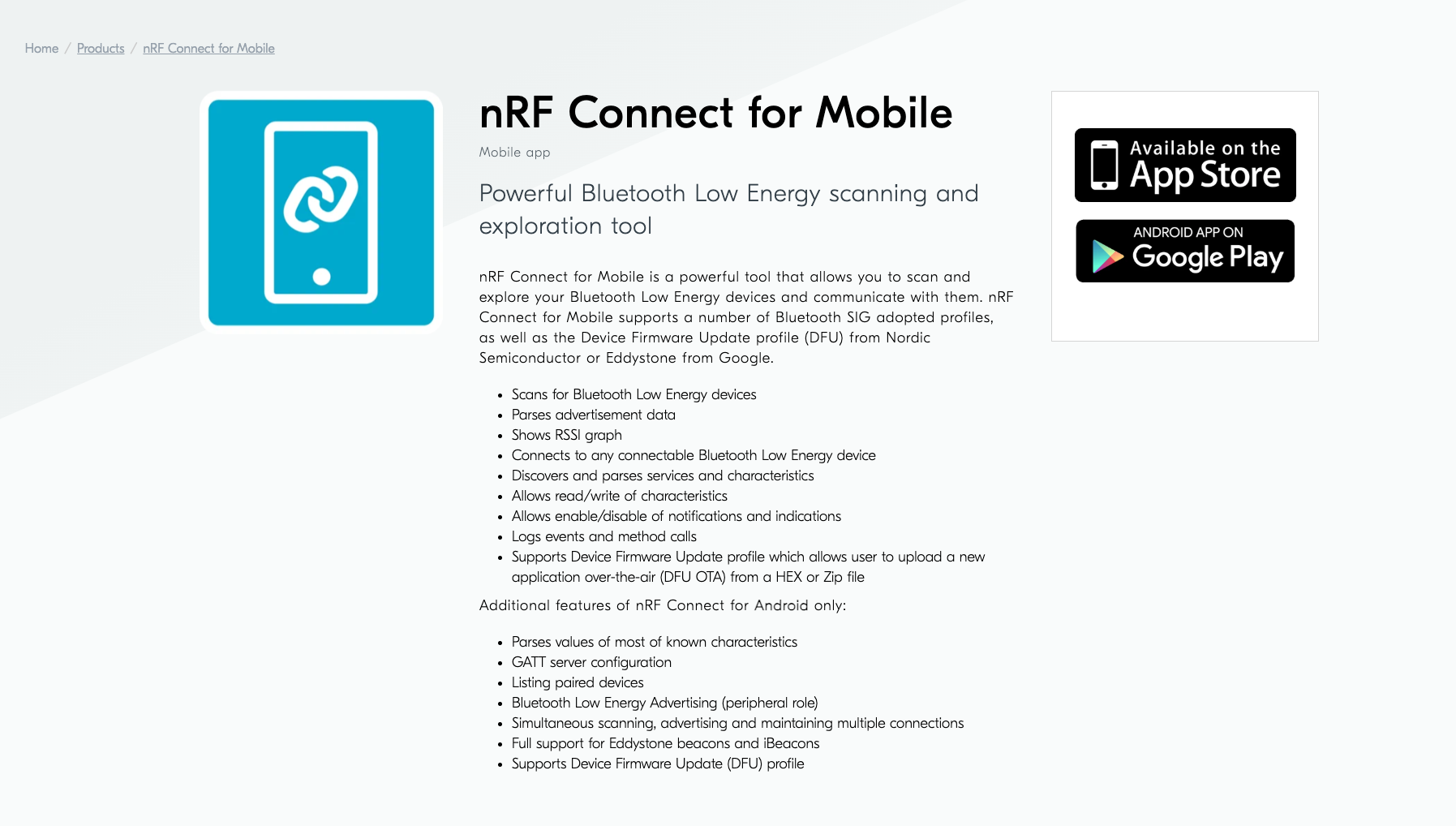

For this example, you'll need to download the official Bluetooth testing app, nRF Connect, on your mobile phone.

Once you've flashed the program onto your XIAO nRF52840 Sense board, you can open the nRF Connect app's main page to interact with it.

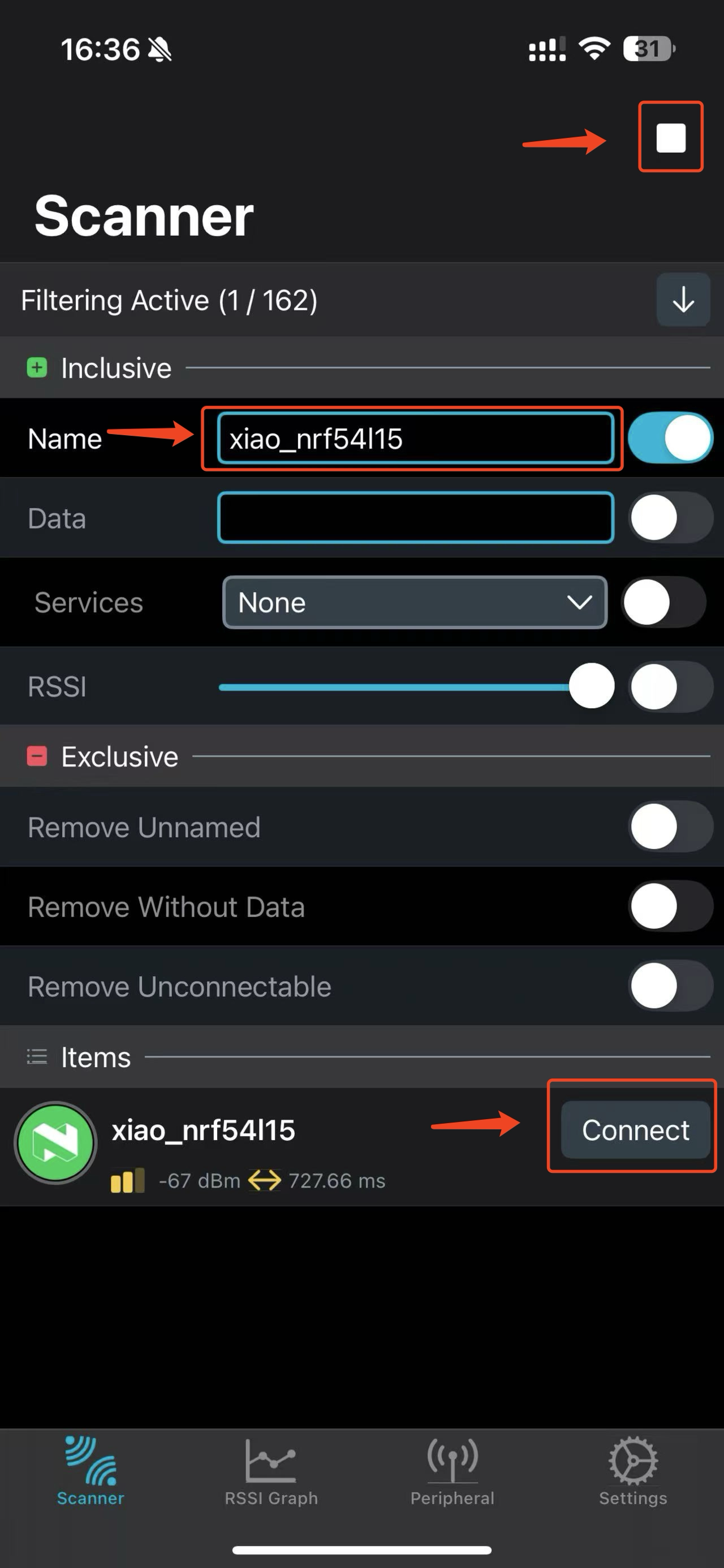

  • Step 1 . in the nRF Connect app, click the scan button in the top right corner to start scanning for Bluetooth devices.

  • Step 2 .Next, enter the name of your XIAO nRF52840 Sense device into the "Name" field. This will help you filter and quickly locate your device.

  • Step 3 .In the scan results area, find your XIAO nRF52840 Sense device and click the "Connect" button next to it .

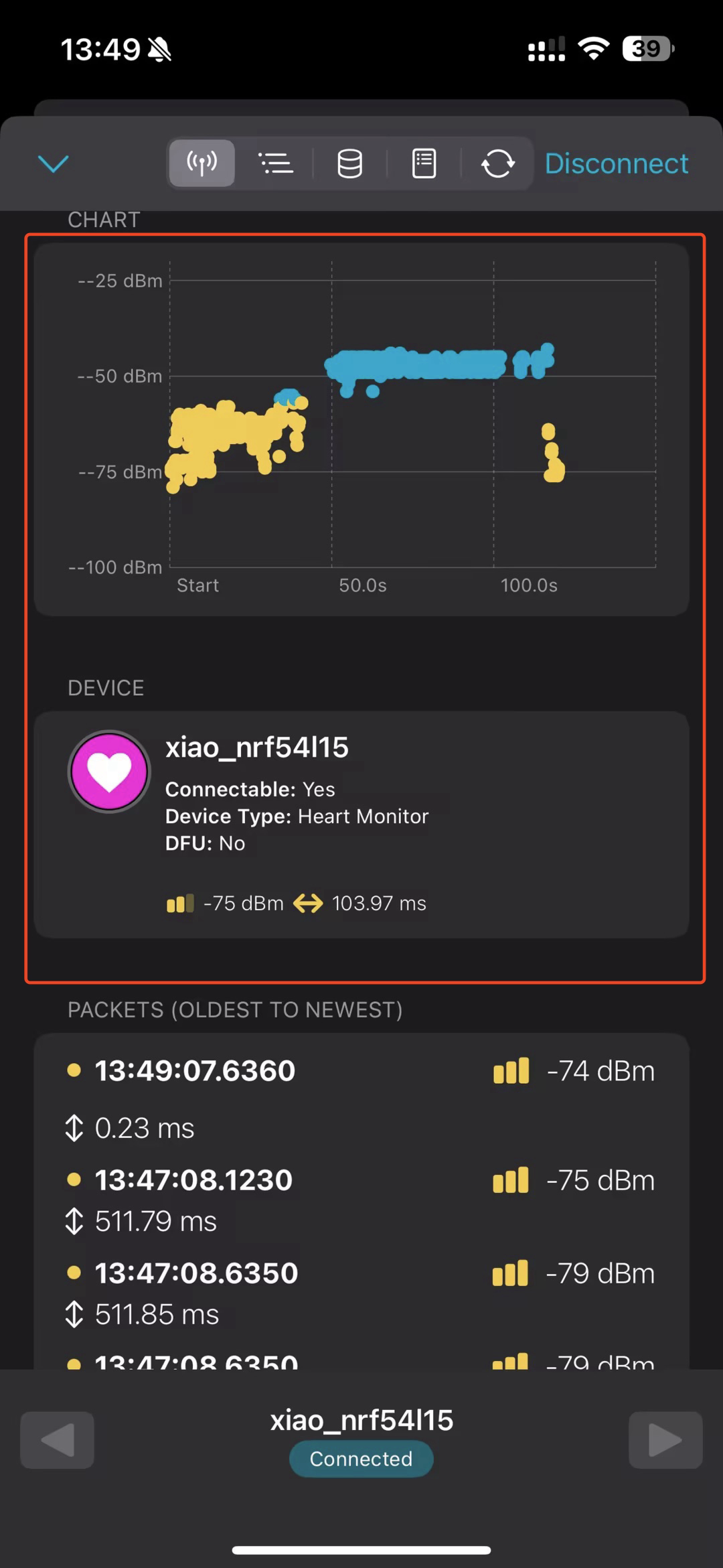

Upon successful connection, you will be directed to the device details page. On this page, you can observe the Bluetooth signal strength (RSSI) distribution over different time periods , which helps you understand the stability of the device's connection.

Add XIAO nRF54L15 Board​

To add the XIAO nRF52840 Sense board to NCS (nRF Connect SDK), you can refer to the "Getting Started" guide on the Seeed Studio Wiki. This guide will provide detailed instructions on the process.

Download the Libraries

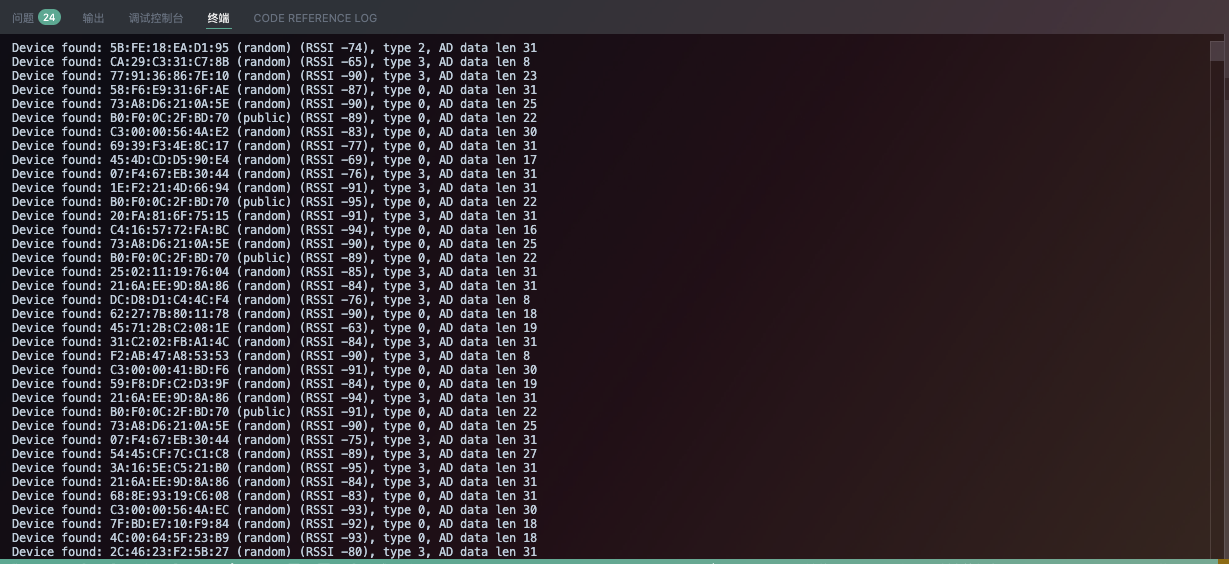

BLE Advertising Code​

#include <zephyr/kernel.h>
#include <zephyr/logging/log.h>
#include <zephyr/bluetooth/bluetooth.h>
#include <zephyr/bluetooth/gap.h>
#include <zephyr/bluetooth/conn.h>
#include <zephyr/sys/printk.h>
#include <zephyr/drivers/gpio.h>
#include <zephyr/dt-bindings/gpio/nordic-nrf-gpio.h>

LOG_MODULE_REGISTER(BLE_LowPower, LOG_LEVEL_INF);

#define DEVICE_NAME CONFIG_BT_DEVICE_NAME
#define DEVICE_NAME_LEN (sizeof(DEVICE_NAME) - 1)

static const struct gpio_dt_spec led0 = GPIO_DT_SPEC_GET(DT_ALIAS(led0), gpios);

static const struct bt_data ad[] = {
    BT_DATA_BYTES(BT_DATA_FLAGS, BT_LE_AD_GENERAL | BT_LE_AD_NO_BREDR),
    BT_DATA(BT_DATA_NAME_COMPLETE, DEVICE_NAME, DEVICE_NAME_LEN),
};

static unsigned char url_data[] = {
    0x17,
    '/', '/', 'a', 'c', 'a', 'd', 'e', 'm', 'y', '.',
    'n', 'o', 'r', 'd', 'i', 'c', 's', 'e', 'm', 'i', '.',
    'c', 'o', 'm'
};

static const struct bt_data sd[] = {
    BT_DATA(BT_DATA_URI, url_data, sizeof(url_data)),
};

static bool device_connected = false;

static void connected(struct bt_conn *conn, uint8_t err)
{
    if (err) {
        LOG_ERR("Connection failed (err 0x%02x)\n", err);
    } else {
        LOG_INF("Device connected\n");
        device_connected = true;
    }
}

static void disconnected(struct bt_conn *conn, uint8_t reason)
{
    LOG_INF("Device disconnected (reason 0x%02x)\n", reason);
    device_connected = false;

    int err = bt_le_adv_start(BT_LE_ADV_CONN, ad, ARRAY_SIZE(ad), sd, ARRAY_SIZE(sd));
    if (err) {
        LOG_ERR("Failed to restart advertising (err %d)\n", err);
    } else {
        LOG_INF("Advertising successfully restarted (connectable)\n");
    }
}

BT_CONN_CB_DEFINE(conn_callbacks) = {
    .connected = connected,
    .disconnected = disconnected,
};

int main(void)
{
    int err;

    if (!gpio_is_ready_dt(&led0)) {
        LOG_ERR("Error: LED device %s is not ready\n", led0.port->name);
        return -1;
    }

    err = gpio_pin_configure_dt(&led0, GPIO_OUTPUT_INACTIVE);
    if (err) {
        LOG_ERR("Error: Failed to configure LED pin %d (err %d)\n", led0.pin, err);
        return -1;
    }

    LOG_INF("LED configured, initially off.");

    err = bt_enable(NULL);
    if (err) {
        LOG_ERR("Bluetooth initialization failed (err %d)\n", err);
        return -1;
    }
    LOG_INF("Bluetooth initialized\n");

    err = bt_le_adv_start(BT_LE_ADV_CONN, ad, ARRAY_SIZE(ad), sd, ARRAY_SIZE(sd));
    if (err) {
        LOG_ERR("Advertising failed to start (err %d)\n", err);
        return -1;
    }
    LOG_INF("Advertising successfully started (connectable)\n");

    while (1) {
        if (device_connected) {
            gpio_pin_toggle_dt(&led0);
            k_sleep(K_MSEC(500));
        } else {
            gpio_pin_set_dt(&led0, 0);
            k_sleep(K_MSEC(1000));
        }
    }

    return 0;
}

PlatformIO​

This Bluetooth radio example program is specifically designed for development on the PlatformIO platform. The main advantage of choosing PlatformIO is that it provides an integrated development environment that greatly simplifies the setup, compilation and burn-in process of embedded projects, making it easier and faster for even beginners to start developing Bluetooth applications.

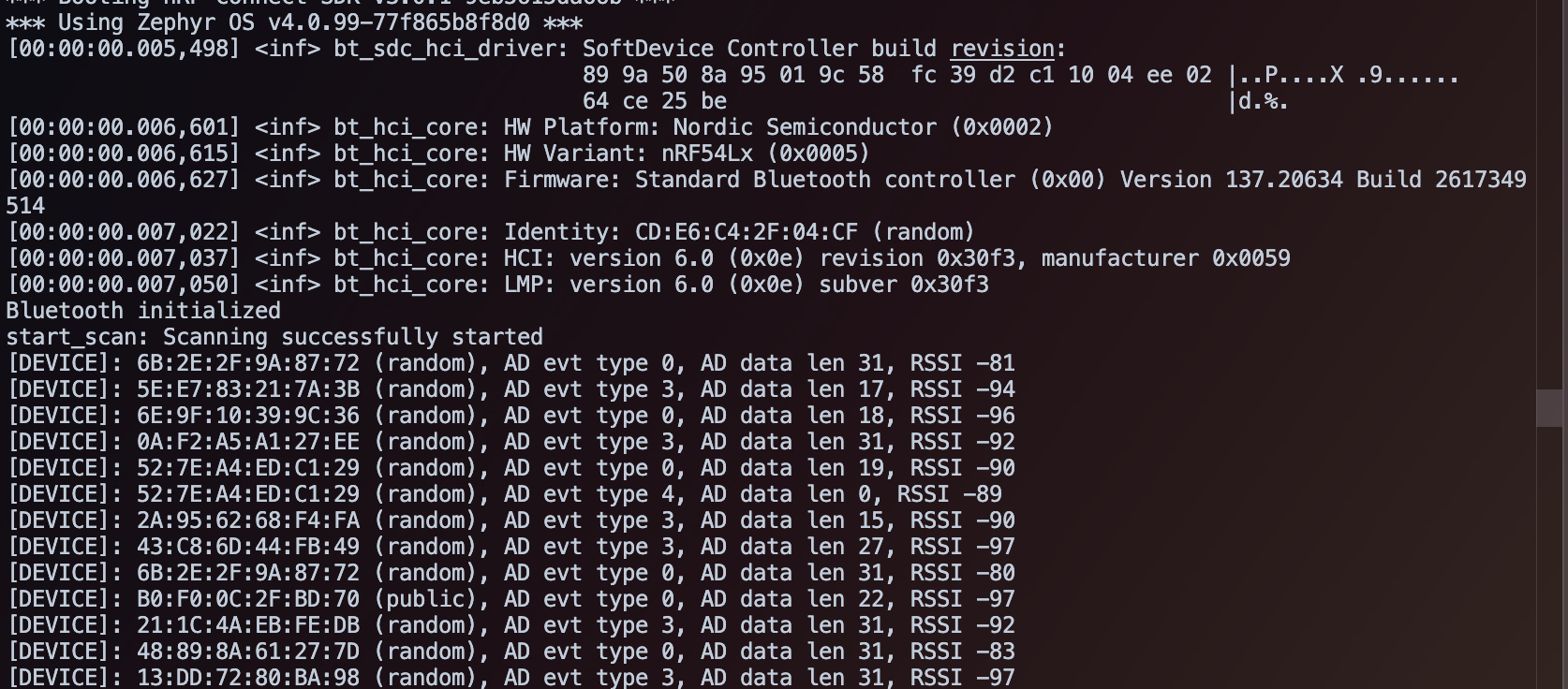

BLE Advertising Code​

#include <stdio.h>

#include <zephyr/bluetooth/bluetooth.h>
#include <zephyr/bluetooth/hci.h>
#include <zephyr/bluetooth/conn.h>
#include <zephyr/bluetooth/uuid.h>
#include <zephyr/bluetooth/gatt.h>

#define BT_UUID_ONOFF_VAL BT_UUID_128_ENCODE(0x8e7f1a23, 0x4b2c, 0x11ee, 0xbe56, 0x0242ac120002)
#define BT_UUID_ONOFF     BT_UUID_DECLARE_128(BT_UUID_ONOFF_VAL)
#define BT_UUID_ONOFF_ACTION_VAL \
    BT_UUID_128_ENCODE(0x8e7f1a24, 0x4b2c, 0x11ee, 0xbe56, 0x0242ac120002)
#define BT_UUID_ONOFF_ACTION BT_UUID_DECLARE_128(BT_UUID_ONOFF_ACTION_VAL)

#define BT_UUID_ONOFF_READ_VAL \
    BT_UUID_128_ENCODE(0x8e7f1a25, 0x4b2c, 0x11ee, 0xbe56, 0x0242ac120003)
#define BT_UUID_ONOFF_READ BT_UUID_DECLARE_128(BT_UUID_ONOFF_READ_VAL)

static uint8_t onoff_flag = 0;

static const struct bt_data ad[] = {
	BT_DATA_BYTES(BT_DATA_FLAGS, (BT_LE_AD_GENERAL | BT_LE_AD_NO_BREDR)),
	BT_DATA(BT_DATA_NAME_COMPLETE, CONFIG_BT_DEVICE_NAME, sizeof(CONFIG_BT_DEVICE_NAME) - 1),
};

static const struct bt_data sd[] = {
	BT_DATA_BYTES(BT_DATA_UUID128_ALL, BT_UUID_ONOFF_VAL),
};

static ssize_t read_onoff_val(struct bt_conn *conn, const struct bt_gatt_attr *attr,
                  void *buf, uint16_t len, uint16_t offset)
{
    const uint8_t *value = attr->user_data;
    return bt_gatt_attr_read(conn, attr, buf, len, offset, value, sizeof(*value));
}

static ssize_t write_onoff_val(struct bt_conn *conn, const struct bt_gatt_attr *attr,
			       const void *buf, uint16_t len, uint16_t offset, uint8_t flags)
{
	uint8_t val;

	if (len != 1U) {
		return BT_GATT_ERR(BT_ATT_ERR_INVALID_ATTRIBUTE_LEN);
	}

	if (offset != 0) {
		return BT_GATT_ERR(BT_ATT_ERR_INVALID_OFFSET);
	}

	val = *((uint8_t *)buf);

	if (val == 0x00U) {
		printf("Write: 0\n");
		onoff_flag = 0;
	} else if (val == 0x01U) {
		printf("Write: 1\n");
		onoff_flag = 1;
	} else {
		return BT_GATT_ERR(BT_ATT_ERR_VALUE_NOT_ALLOWED);
	}

	return len;
}

BT_GATT_SERVICE_DEFINE(lbs_svc,
    BT_GATT_PRIMARY_SERVICE(BT_UUID_ONOFF),
    BT_GATT_CHARACTERISTIC(BT_UUID_ONOFF_ACTION, BT_GATT_CHRC_WRITE,
        BT_GATT_PERM_WRITE, NULL, write_onoff_val, NULL),
    BT_GATT_CHARACTERISTIC(BT_UUID_ONOFF_READ, BT_GATT_CHRC_READ,
        BT_GATT_PERM_READ, read_onoff_val, NULL, &onoff_flag),
);

static void connected(struct bt_conn *conn, uint8_t err)
{
	if (err != 0U) {
		printf("Connection failed (%02x, %s)\n", err, bt_hci_err_to_str(err));
		return;
	}

	printf("Connected\n");
}

static void disconnected(struct bt_conn *conn, uint8_t reason)
{
	printf("Disconnected (%02x, %s)\n", reason, bt_hci_err_to_str(reason));
}

BT_CONN_CB_DEFINE(conn_callbacks) = {
	.connected = connected,
	.disconnected = disconnected,
};

int main(void)
{
	int err;

	err = bt_enable(NULL);
	if (err < 0) {
		printf("Bluetooth enable failed (err %d)", err);
		return err;
	}

	err = bt_le_adv_start(BT_LE_ADV_CONN_FAST_1, ad, ARRAY_SIZE(ad), sd, ARRAY_SIZE(sd));
	if (err < 0) {
		printf("Advertising failed to start (err %d)", err);
		return err;
	}

	printf("Bluetooth enabled");
	return 0;
}
