Wio LTE Cat.1

Wio Tracker (Wireless Input Output) is an open source gateway which enable faster IoT GPS solutions. It is Arduino and Grove compatible development boards that helps you track nearly any moving thing on the planet and then upload that data wirelessly. The Wio LTE is the LTE version of Wio Tracker, so now we’ve got 2 versions of Wio Tracker and the LTE (4G) version will make some differences.

There are three main updates comparing the Wio LTE to the 2G version. Firstly, from its name we know that the Wio LTE supports LTE (4G) communication which is much faster and popular than 2G. Secondly, the Wio LTE supports in total 4 different GNSS – GPS, Beidou, GLONSS and Galileo, the QZSS is also supported as bonus. With more GNSS support, positioning will be more accurate. Thirdly, the Wio LTE‘s MCU is upgraded to STM32, which is based on Cortex-M4, makes the Wio LTE 5 times faster than the 2G version. What’s more, the flash and RAM have also been raised to 1Mbytes and 192+4k bytes.

Apart from the three main updates, the LTE version is almost the same as the 2G version. If your project is using the 2G version, it would be very easy to update to the LTE version because we have prepared transplantable and expansible AT command library. The Arduino and Grove compatibility allows for quicker development through numerous libraries and a supportive community. The GPS library which will be available with the board is not just limited to Arduino – it can function just as well if you chose to develop in C/C++. With the onboard 6 Grove connections, developers can create any combination of our 180+ sensors and actuators to build project and solve any problem. Simplifying the prototyping and development phase is our goal.

The Wio LTE is well suited for outdoor projects where the device can connect to the GPS satellites and provide a real-time location of the item it is attached to. The LTE provides a wide bandwidth which allows much faster interaction between the user and device. If you are going to build projects like a bicycle sharing service, tracking pets or livestock, locating a vehicle, or even keeping track of a child, the Wio LTE is the best solution.

Warning

Please always plug 3.7V Lipo battery in case USB power supply is not sufficient.

Product Name How to Buy
Wio LTE JP Version
Wio LTE AU Version
Wio LTE EU Version
Wio LTE US Version

Version

Product Version Changes Released Date
Wio Lte v1.0 Initial Jul 24, 2017
Wio Lte v1.1 Optimizing Production methods Oct 18, 2017
Wio Lte v1.3 Hardware change with better power supply March 9, 2018
Wio Lte v1.3b Adjust the layout March 29, 2018

Wio Lte v1.3 Release Notes

Since the launch of this product, we have received a lot of user feedback and suggestions. We decided to further improve this product based on user feedback, so here you see, the Wio Lte v1.3 comes out.

We made some changes in the power circuit:

  • Change the PMIC (Power manage IC) into MP2617, which is more stable.
  • Remove the DC-DC Module which supplies for the Lte Module, instead, in this version we power the Lte Module by the main circuit or the Lipo battery.
  • Add two 100uf capacitors to make the power more stable.

As you can see in the pictures below.

                  v1.3                                  v1.0

As the power circuit changes, the logic of the power indicator has also changed.

LED Statues Battery Statues
LED ON Charging
LED off Charging finished
LED Blinking Battery error.(Including no battery statues)

What's more, the Reset Key logic changed as well.

Operation Rest Range
Hold the reset button for a short time(within 2 seconds) MCU reset/ Lte Module will not reset
Hold the reset button for a short time(More than 10 seconds) The hole board will reset

Features

  • Low-cost, low-power LTE connectivity optimized for broad- band IoT applications
  • Worldwide LTE and UMTS/HSPA+
  • Embedded power management unit (PMU) featuring ultra-low deep-sleep current consumption
  • GPS/BeiDou/GLONASS/Galileo and QZSS
  • Transplantable and expansible AT Command Library for Wio Tracker
  • Arduino IDE compatible
  • 6 Grove Connectors
  • Nano SIM and TF card 2 in 1 socket

Specification

Item Function Value
Microcontroller Processor STM32F405RG, ARM 32-bit Cortex-M4, 168MHZ
Flash Memory 1MB
SRAM 192+4KB
Operating Voltage 3.3V
DC Current per I/O Pin 7 mA
LTE LTE Cat.1 AT Command: 3GPP TS27.007 and enhanced AT Commands
Data LTE-FDD Max 10Mbps(DL) Max 5Mbps (UL)
Protocol: TCP/UDP/PPP/FTP/HTTP/NTP/PING/QMI/HTTPS*/SMTP*/MMS*/FTPS*/SMTPS*/SSL*
SMS Peer to Peer Message, SMS broadcast, Text and PDU mode
Audio Echo cancellation, Noise elimination
GNSS System GPS/BeiDou/GLONASS/Galileo/QZSS
Precision <2.5 m CEP
Peripheral Grove 2 x Digital Port
2 x Analog Port
1 x UART
1 x I2C
Antenna 2 x LTE Antenna
1 x GPS Antenna
Others USB: Power supply and upload program
JST 1.0 connecter for battery
3.5mm Audio Jack
MCU Reset Button, MCU Boot(DFU) Button,EC21 Power Button
1 x User RGB LED SK6812
Nano SIM and TF card 2 in 1 socket
Size Length 54.7mm
Width 48.2mm
Weight 18g

Power Consumption

Status Current Voltage
Normal boot(boot moment) 700mA 5V
After boot(IDLE mode) 300mA 5V
After the boot, the normal communication status (network transmission function) 600mA or so, the peak reaches 2A 5V
Call and SMS(signal better) 100-300mA 5V
Deep sleep mode, turn off all functions, require external wake-up (wake only by Reset) 300uA 4.2V
MCU Deep Sleep mode, wake-up pin connected to module, wake-up via module over 300uA (requires testing) 4.2V

Note

There are two working conditions. One is power from 5V usb supply. The other is from 4.2v battery supply.

Application Ideas

  • Pedometer
  • Smart ski
  • Smart two-wheeler
  • Sharing bicycle
  • Pet tracking machine
  • Children location watch
  • Smart watch
  • Transportation location system
  • Vehicle location system
  • Property safety

Tip

Use Grove modules to expand your application. There are 6 Grove connects on board. If this is your first time to hear about Grove, please put had on Grove System for more details. In brief, Groves is hundreds of sensor that in standard style, which is consist of sensors, actuators, displays as well as communication.

Hardware Overview

Tip

If you want to use the on-board Grove connector, please use digitalWrite(B10, HIGH) to open 3V3_B. except D38 power on by default. Otherwise you can't provide power to Grove modules.

EC21 Module

EC21 contains 9 variants: EC21-E, EC21-A, EC21-V, EC21-AUT, EC21-AUV, EC21-AU, EC21-KL, EC21-J and EC21-CEL. This makes it backward-compatible with existing EDGE and GSM/GPRS networks, ensuring that it can easily migrate from LTE to 2G or 3G networks.

And EC21-A is what we are using in WIO Tracker - LTE, which supports AT&T and T-mobile sim card. If you want to customize EC21 Module for other region, feel free to email us: fae@seeed.cc

Frequency EC21-E EC21-A EC21-V EC21-AUT
LTE FDD-LTE B1/ B3/ B5/ B7/ B8/ B20 B2/ B4/ B12 B4/ B13 B1/ B3/ B5/ B7/ B28
TDD-LTE
3G WCDMA B1/ B5/ B8 B2/ B4/ B5 B1/ B5
GSM/EDGE B3/ B8
Embedded GNSS Optional Optional Optional Optional
Wi-Fi Interface Y Y Y Y
Region EMEA, Korea, Thailand, India North America North America Australia
Certification CE/ GCF/ Vodafone FCC/ PTCRB/ AT&T/ IC/ ROGERS FCC/ GCF/ Verizon RCM/ Telstra


Frequency EC21-AUV EC21-AU EC21-KL EC21-J EC20-CEL
LTE FDD-LTE B1/ B3/ B5/ B8/ B28 B1/ B2①/ B3/ B4/ B5/ B7/ B8/ B28 B1/ B3/ B5/ B7/ B8 B1/ B3/ B8/ B18/ B19/ B26 B1/ B3/ B5
TDD-LTE B40
3G WCDMA B1/ B5/ B8 B1/ B2/ B5/ B8
GSM/EDGE Quad-band
Embedded GNSS N
Optional
N
N
N
Wi-Fi Interface Y Y Y Y Y
Region Vodafone Australia South America, ANZ, Taiwan Korea Japan China Telecom
Certification RCM RCM/ Anatel/ NCC KC/ SKT/KT*/ LGU+* JATE/ TELEC/ DOCOMO* CCC/ SRRC/ NAL

Getting Started

Install USB driver

  • Windows Users: Most versions of Windows won't automatically load the built-in driver for USB com ports. You'll have to download ST's USB driver:

    • Non-Windows XP Users download version 1.4.0 drivers. Unzip the file, run the executable, and then go to C:\Program Files (x86)\STMicroelectronics\Software\Virtual comport driver in Windows Explorer and double-click either dpinst_amd64.exe for 64 bit systems, or dpinst_x86.exe for 32 bit.

    • Windows XP Users download version 1.3.1 drivers. Unzip the file, run VCP_V1.3.1_Setup.exe, and then go to C:\Program Files\STMicroelectronics\Software\Virtual comport driver in Windows Explorer and double-click the executable.

  • Linux users to ensure that you have the correct permissions to connect as a normal user you'll need to copy the file 45-espruino.rules to /etc/udev/rules.d, reload rules with udevadm control --reload-rules, and ensure your user is in the plugdev group (you can check by typing groups). You add it by typing sudo adduser $USER plugdev and then logging out and back in. Arch Linux users need to add their user to uucp and lock groups instead.

  • Mac OS X and Chromebook Users: The board will just plug in and work, without drivers!

Change DFU driver

For windows users:

  • Step 1. Press and hold BOOT button and connect to computer you will see STM32 Device in DFU Mode at device manager as below.

  • Step 2. This says that you need to use zadig_xx.exe to change DFU driver from STTub30 to WinUSB as below. If we can't see any info on the Zadig, please click Options→ List All Devices, then select STM32 Virtual COM Ports.

  • Step 3. You will see the "STMicroelectronics Virtual COM Port" on device manager as below.

Update Firmware

  • Step 1: For the latest firmware, you can download from here. The firmware is named as espruino_xxx_Wio_LTE.bin.
  • Step 2: Install dfu-util, add dfu-util to PATH or Environment Variables, so that we can use it directlly in command line.
  • Step 3: Press and hold BOOT0 button before connect to computer, release after connect.
  • Step 4: The Wio LTE board will access DFU mode.
  • Step 5: In command line windows type dfu-util -d 0483:df11 -c 1 -i 0 -a 0 -s 0x08000000 -D xxx.bin. For windows, Please enter the full path of the bin file.

dfu-flash

Play with Javascript

Thanks to G.Williams for providing Espruino the Javascript interpreter, so that we can prototype things with Javascript.

1. Install Espruino web IDE

Espruino Web IDE

2. How to use Espruino Web IDE

  • Step 1: Connect the Wio LTE board to computer using a micro USB cable. On device manager you can see a new COM Port device, on MacOS it is STM32 Virtual ComPort, on windows it is STMicroelectronic Virtual COM Port.

  • Step 2: On the Web IDE click the left top icon, choose Espruino board in the select box.

  • Step 3: To learn more about the IDE, please click help and then tour as below.

3. How to load modules

In Espruino, Modules are pieces of pre-written code (libraries) that perform common tasks, such as interfacing to different bits of hardware.

They can currently be used in a few different ways:

3.1. Espruino Web IDE

If you're using the Espruino Web IDE, simply write require("modulename") on the right-hand side - as you would have seen in the reference pages. When you click the Send to Espruino button, the Web IDE will automatically look online for minified versions of the modules you need, download them, and load them onto the board. You don't need an SD card or an internet connection to the Espruino board itself.

3.2. Load Module - the default mechanism

If you are using the Web IDE as is, the modules will be loaded from http://www.espruino.com/modules/. This URL can be changed in Web IDE settings.

To save space, most modules are provided as a minified version and the Web IDE tries to load minified versions first with default configuration.

For example, using require("ADNS5050"); will make the Web IDE loading the minified module from http://www.espruino.com/modules/ADNS5050.min.js.

3.3. Load Module from Github

For now, as you can type a URL into require, you can actually just pull a module right off GitHub:

1
require("https://github.com/espruino/EspruinoDocs/blob/master/devices/PCD8544.js");
You can even look at the history of something on GitHub, and can then require a specific version of that file with:
1
require("https://github.com/espruino/EspruinoDocs/blob/d4996cb3179abe260c030ed02bcb0d2384db6bbd/devices/PCD8544.js");
The URL comes from clicking <> by the commit you were interested in.

3.4. Load Module from NPM

If you activate this option in Web IDE, you can load modules from the NPM repository. Right now it:

  • only loads the latest version there.
  • only works if the module contains a single file.
  • can cause some confusion with Espruino's modules, for instance clock.

For example using require("async"); will make the Web IDE loading the tar.gz file (with automatic extraction) of the module from http://registry.npmjs.org/async.

3.5. Load Module from local folder

If you are using a local project folder, the Web IDE will automatically create an empty modules folder inside. Put a module there and you can load it with require("myCustomModule");.

With default Web IDE configuration, it will look for modules following this order:

  • local minified
  • online minified
  • local normal
  • online normal

If your own module has the same name as one of the existing ones, the Web IDE will use the minified version from online first.

If you need it anyway, you can provide a local minified version or you can change the Web IDE configuration from .min.js|.js to .js|.min.js or even myCustomModule.js|.min.js|.js to get it working.

3.6. Stand-alone Espruino

If you have an Espruino with an SD card (but you're not using the Web IDE), you can copy the modules you need into a directory called 'node_modules' on the SD card. Now, whenever you write require("modulename") the module will be used.

3.7. Internet-enabled Espruino

Right now there isn't a way to make Espruino automatically load a module from the internet when required without the Web IDE. This may be added in the future, but the fact that require is synchronous while network connections are asynchronous makes this difficult to do reliably until yield is added into the interpreter.

Until then, the following asyncronous code will dynamically load a module from the internet on demand.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
function loadModule(moduleName, callback) {
  require("http").get("http://www.espruino.com/modules/"+moduleName+".js", function(res) {
    var contents = "";
    res.on('data', function(data) { contents += data; });
    res.on('close', function() {
      Modules.addCached(moduleName, contents);
      if (callback) callback();
    });
  }).on('error', function(e) {
    console.log("ERROR", e);
  });
}

4. Play with Onboard RGB LED

  • Step 1. Config the R, G, B numbers, the arrange is 0~255.
  • Step 2. Copy the code to IDE and upload to board.
  • Step 3. The on board RBG LED will be turned on.
    1
    2
    WioLTE.setLEDPower(true);
    WioLTE.LED(r,g,b); // please modify the RGB to values with range 0..255)

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
// Dynamic colors show
WioLTE.setLEDPower(true);

var rgb = new Uint8ClampedArray(3);
var pos = 0;
function getPattern() {
  pos++;
  for (var i=0;i<rgb.length;) {
    rgb[i++] = (1 + Math.sin((i+pos)*0.1324)) * 10;
    rgb[i++] = (1 + Math.sin((i+pos)*0.1654)) * 10;
    rgb[i++] = (1 + Math.sin((i+pos)*0.1)) * 10;
  }
  return rgb;
}
setInterval(function() {
  var color = getPattern();
  WioLTE.LED(color[0], color[1], color[2]);
}, 100);

5. Play with SD Card

Note

Epruino firmware v1.94 is not support SD card drive, please use v1.96 or later, the latest version is v1.99.

  • Step 1. Plug a micro SD card to the card slot
  • Step 2. Copy the code to Espruino IDE and upload it.
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    var fs = require('fs');

    // Init SDCard
    WioLTE.init;

    // List files
    console.log('List files on root path:\r\n', fs.readdirSync());
    // Write file
    fs.writeFileSync("hello.txt", "Hello World");
    // read file
    console.log(fs.readFileSync("hello.txt"));
    // append file
    fs.appendFileSync("hello.txt", "!!!");
    // read again
    console.log(fs.readFileSync("hello.txt"));


6. Play with Grove Module

6.1. Play with Digital Ports 6.1.1 Grove-Button (Input) - Step 1. Conenct Grove-Button to Wio LTE D38 port. - Step 2. Copy the code to IDE and upload to board. - Step 3. We will see the "Pressed" when we press the button. Or else, we will see "Released" printed on screen.

1
2
3
4
5
WioLTE.setGrovePower(true);
var button = new (require("GroveButton"))(WioLTE.D38, function(e) {
  if (e.state) console.log("Pressed");
  else console.log("Released");
});

6.1.2 Grove-Ralay (Output) - Step 1. Conenct Grove-Ralay to Wio LTE D38 port. - Step 2. Copy the code to IDE and upload to board. - Step 3. We will hear the Relay switch and see the "Done" printed on screen.

1
2
3
4
5
6
7
8
WioLTE.setGrovePower(true);
var relay = new (require('GroveRelay'))(WioLTE.D38);
setInterval(function() {
  relay.off();
  relay.pulse(1000, function() {
    console.log("Done!");
});
}, 2000);

6.2. Play with Analog Ports

  • Step 1. Conenct Grove-Light Sensor to Wio LTE A4 port.
  • Step 2. Copy the code to IDE and upload to board.
  • Step 3. We will see the numbers printed on screen.
    1
    2
    3
    4
    5
    WioLTE.setGrovePower(true);
    var light = new (require('GroveLightSensor'))(WioLTE.A4);
    setInterval(function() {
      console.log(r.read());
    }, 500);


6.3. Play with UART Ports

  • Step 1. Conenct Grove-GPS to Wio LTE UART port.
  • Step 2. Copy the code to IDE and upload to board.
    1
    2
    3
    4
    5
    WioLTE.setGrovePower(true);
    Serial1.setup(9600,{tx:WioLTE.UART[1],rx:WioLTE.UART[0]});
    var gps = new (require('GPS')).connect(Serial1, function(data) {
      console.log(data);
    });

  • Step 3. We will see time, lat, lon, satellites and altitude info printed on screen as below.
    1
    2
    3
    {  "time": "09:35:02", "lat": 30.69766, "lon": 104.05367833333, "fix": 1, "satellites": 6, "altitude": 537.2 }
    {  "time": "09:35:03", "lat": 30.69765166666, "lon": 104.05366166666, "fix": 1, "satellites": 6, "altitude": 537.2 }
    {  "time": "09:35:04", "lat": 30.69765, "lon": 104.05363833333, "fix": 1, "satellites": 6, "altitude": 537.1 }


6.4. Play with I2C Ports

  • Step 1. Conenct Grove 3-Axis Digital Accerlerometer(±16g) to Wio LTE I2C port.
  • Step 2. Copy the code to IDE and upload to board.
    1
    2
    3
    4
    5
    6
    7
    WioLTE.setGrovePower(true);
    I2C1.setup({scl:WioLTE.I2C[0], sda:WioLTE.I2C[1]});
    var accel = require("ADXL345").connect(I2C1,0,0);
    accel.measure(true);
    setInterval(function(){
      console.log(accel.read());
    },2000);

  • Step 3. We will see x, y and z info printed on screen as below.
    1
    2
    3
    4
    5
    6
    7
    8
    { "x": -0.05859375, "y": -0.46484375, "z": 0.76953125 }
    { "x": -0.0546875, "y": -0.46484375, "z": 0.765625 }
    { "x": -0.0546875, "y": -0.46875, "z": 0.7578125 }
    { "x": -0.05078125, "y": -0.47265625, "z": 0.765625 }
    { "x": -0.0546875, "y": -0.46484375, "z": 0.77734375 }
    { "x": -0.0546875, "y": -0.46875, "z": 0.765625 }
    { "x": -0.0546875, "y": -0.46875, "z": 0.765625 }
    { "x": -0.05078125, "y": -0.47265625, "z": 0.765625 }


6.5. Play with Onboard LTE and GPS

When require modules the Espruino Web IDE will automaticlly search modules at the modules repository. To use LTE and GPS functionalities, you need to require the wiolte module with require('wiolte').

6.5.1 Play with Send and Receive SMS

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Change the phone number and info.
  • Step 3. Copy the code to IDE and upload to board.
  • Step 4. The phone number owner will receive the message.
  • Step 5. If someone sends the message to you, it will be printed on the screen as well.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
digitalWrite(B2, 1);
var board;
var APN = "CMAPN";
var USERNAME = "";
var PASSWORD = "";

function wiolteStart(debug_quectel, debug_at) {
  debug_quectel = debug_quectel || false;
  debug_at = debug_at || false;

  board = require('wiolte').connect(function(err) {
    console.log("connectCB entered...");
    if (err) throw err;
    setTimeout(doConnect,3000);
  });

  board.debug(debug_quectel, debug_at);

}

function doConnect() {
  board.connect(APN, USERNAME, PASSWORD, function(err) {
    console.log("connectCB entered...");
    if (err) throw err;
    board.getIP(print);

    // work after connected
    setTimeout(onConnected, 5000);

  });
}

function onConnected(){
  // Send the SMS message, please change the phone number
  board.SMS.send("185XXX26402", "What is the story?",function(err) {
    console.log(err);
  });

  //Receive SMS coming
  board.on('message', function(id){
    board.SMS.read(id, function(d, sms){
      if(d !== "OK") throw new Error(d);
      console.log('SMS from:', sms.oaddr);
      console.log(':', sms.text);
    });
  });

}

wiolteStart();

6.5.2 Play with Call Out

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Plug the Headphone into audio port.
  • Step 3. Change the phone number.
  • Step 4. Copy the code to IDE and upload to board.
  • Step 5. The phone number owner will receive the phone call.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
digitalWrite(B2, 1);
var board;
var APN = "CMAPN";
var USERNAME = "";
var PASSWORD = "";

function wiolteStart(debug_quectel, debug_at) {
  debug_quectel = debug_quectel || false;
  debug_at = debug_at || false;

  board = require('wiolte').connect(function(err) {
    console.log("connectCB entered...");
    if (err) throw err;
    setTimeout(doConnect,3000);
  });

  board.debug(debug_quectel, debug_at);

}

function doConnect() {
  board.connect(APN, USERNAME, PASSWORD, function(err) {
    console.log("connectCB entered...");
    if (err) throw err;
    board.getIP(print);

    // work after connected
    setTimeout(onConnected, 5000);

  });
}

//please change the phone number
function onConnected(){
  board.Call.call("185XXX26402");
}

wiolteStart();
  • Step 5. If we see "Disconnected" during phone call as below, the root cause is that power supply is not sufficient. Please connect the battery or connect to a hub with sufficiant power.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
_____                 _
|   __|___ ___ ___ _ _|_|___ ___
|   __|_ -| . |  _| | | |   | . |
|_____|___|  _|_| |___|_|_|_|___|
         |_| http://espruino.com
1v94 Copyright 2016 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
>
=undefined
AT passedd
PS attachment succeeded
currently selected operator :+COPS: 0,0,"CHINA MOBILE",7
connectCB entered...
PDP context successfully activated
connectCB entered...
null 10.114.177.248
IP address allocated, modem is ready to use
>
Disconnected

6.5.3 Play with Answer Call

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Plug the Headphone into audio port.
  • Step 3. Copy the code to IDE and upload to board.
  • Step 4. It will pick up the phone call automatically.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
digitalWrite(B2, 1);
var board;
var APN = "CMNET";
var USERNAME = "";
var PASSWORD = "";

function wiolteStart(debug_quectel, debug_at) {
  debug_quectel = debug_quectel || false;
  debug_at = debug_at || false;

  board = require('wiolte').connect(function(err) {
    console.log("connectCB entered...");

    if (err) throw err;
    setTimeout(doConnect,3000);
  });

  board.debug(debug_quectel, debug_at);

}

function doConnect() {
  board.connect(APN, USERNAME, PASSWORD, function(err) {
    console.log("connectCB entered...");
    if (err) throw err;
    board.getIP(print);

    // work after connected
    setTimeout(onConnected, 5000);

  });
}

function onConnected(){
  // Handle call coming
  board.Call.handleRing(true);
  board.on('RING', function(){
    console.log("RING");
    board.Call.answer(function(err){
      print(err);
    });
  });
}

wiolteStart();

6.5.4 Play with GPS Location

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Copy the code to IDE and upload to board.
  • Step 3. After Geolocalization error : +CME ERROR: 516 stop logging, type Geoloc() to show GPS infomation.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
digitalWrite(B2, 1);
var board;

function wiolteStart(debug_quectel, debug_at) {
  board = require('wiolte').connect(function(err) {
    console.log("connectCB entered...");
    if (err) console.log(err);
    setTimeout(onStart,3000);
  });
  board.debug(debug_quectel, debug_at);
}

function onStart(){
  // fetch longitude, latitude every 10 s
  board.geoLocStart(10000);
  setInterval(GeoLoc, 2000);
}

function GeoLoc() {
  var coord="";
  board.geoLocGet(function(err, coord) {
    if(err) throw err;
    console.log("longitude latitude = " + coord.lat,coord.lng);
  });
}

wiolteStart();

6.5.5 Play with Get Html Page

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Copy the code to IDE and upload to board.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
digitalWrite(B2, 1);
var board;
var APN = "CMNET";
var USERNAME = "";
var PASSWORD = "";

function wiolteStart(debug_quectel, debug_at) {
  debug_quectel = debug_quectel || false;
  debug_at = debug_at || false;

  board = require('wiolte').connect(function(err) {
    console.log("connectCB entered...");
    if (err) throw err;
    setTimeout(doConnect,3000);
  });

  board.debug(debug_quectel, debug_at);

}

function doConnect() {
  board.connect(APN, USERNAME, PASSWORD, function(err) {
    console.log("connectCB entered...");

    if (err) throw err;
    board.getIP(print);

    // work after connected
    setTimeout(onConnected, 5000);

  });
}

function onConnected(){

  GetHtmlPage("http://www.pur3.co.uk/hello.txt");
}

function GetHtmlPage(html_page){
  require("http").get(html_page, function(res) {
    var contents = "";

    console.log("Response: ",res);

    res.on('data', function(d) {
      contents += d;
    });

    res.on('close', function(d) {
        console.log("Connection closed");
        console.log("full page content ---> \r\n"+contents);
    });
  });
}


wiolteStart();
- Step 3. We will see info printed on screen.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
_____                 _
|   __|___ ___ ___ _ _|_|___ ___
|   __|_ -| . |  _| | | |   | . |
|_____|___|  _|_| |___|_|_|_|___|
         |_| http://espruino.com
1v94 Copyright 2016 G.Williams
Espruino is Open Source. Our work is supported
only by sales of official boards and donations:
http://espruino.com/Donate
>
=undefined
AT passed
PS attachment succeeded
currently selected operator :+COPS: 0,0,"CHINA MOBILE",7
connectCB entered...
PDP context successfully activated
connectCB entered...
null 10.162.62.37
IP address allocated, modem is ready to use
Response:  httpCRs {
 "headers": {
   "Date": "Thu, 14 Dec 2017 10:25:57 GMT",
   "Server": "Apache/2.4.18 (Ubuntu)",
   "Last-Modified": "Fri, 15 Nov 2013 15:42:26 GMT",
   "ETag": "\"d-4eb390b887c80\"",
   "Accept-Ranges": "bytes",
   "Content-Length": "13",
   "Connection": "close",
   "Content-Type": "text/plain"
  },
 "httpVersion": "1.1",
 "statusCode": "200",
 "statusMessage": "OK"
}
Connection closed
full page content --->
Hello World!

6.6 Javascript APIs

For more info, please refer to Wio_LTE_Module

  • debug(boolean, boolean) - choose debug level
  • reset(callback) - Reset LTE
  • init(callback) - Initialise LTE
  • getVersion(callback) - returns LTE firmware version
  • connect(apn, username, password, callback) - Connect to mobile network
  • getVersion(callback) - returns current version
  • getIP(callback) - Get current IP address
  • geoLocStart(period_in_milliseconds) - Start getting geolocation data
  • geoLocStop() - Stop getting geolocation data
  • geoLocGet(callback) - Get last location
  • geoLocConvert(callback(err,latlong)) - Get last location as latitude/longitude
  • board.SMS - SMS functionality with init/read/send/list/delete functions based on the [[ATSMS]] module
  • board.Call, with:
  • call(number, callback)
  • answer(callback)
  • hangup(callback)
  • handleRing(boolean) - if trie, will call any function added with board.on('RING', ...)
  • sleep(callback) - LTE modem get into sleep mode, it can save about 100mA
  • wake(callback) - LTE modem wake up from sleep mode

Play with Arduino

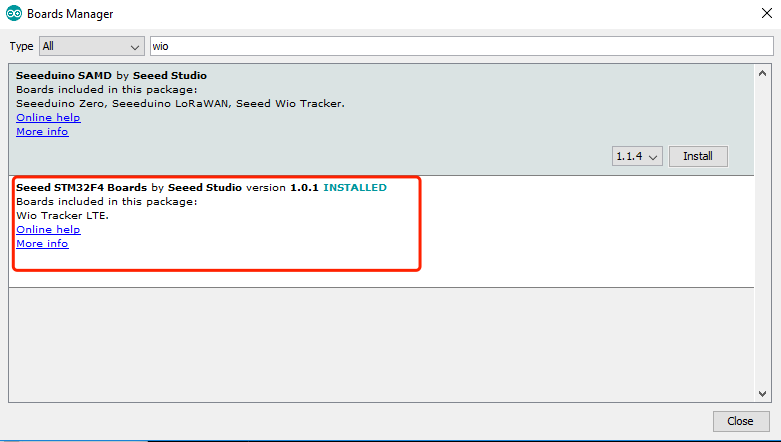

1. Software Configuration

2. Play with SMS Send

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Select File→ Examples→Wio_LTE_Arduino_Library→SMSSend sketch.
  • Step 3. Change the phone number and info.
  • Step 4. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 5. We will see STM BOOTLARDER in device manager.
  • Step 6. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 7. Keep COM Port blank.
  • Step 8. Select Sketch→Upload to upload the code to Wio_LTE.
  • Step 9. Press RST button to enable the COM port.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
#include "wio_tracker.h"

char message[128] = "Hello from Wio Traker!";

WioTracker wio = WioTracker();

void setup() {
  wio.Power_On();
  SerialUSB.println("Power On!");

  if(!wio.waitForNetworkRegister())
  {
    SerialUSB.println("Network error!");
    return;
  } else {
    SerialUSB.println("Network ready!");
  }

  // Change xxxxxxxxxxx to your test phone number
  if(wio.sendSMS("185XXX26402", message))
  {
    SerialUSB.println("Send OK!");
  }
  else
  {
    SerialUSB.println("Send Error!");
  }

}

void loop() {
  AT_bypass();
}
- Step 10.Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue. - Step 11. The phone number owner will receive the message.

1
2
3
4
5
6
7
8
Power On!


Network ready!



Send OK!

3. Play with SMS Read

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Select File→ Examples→Wio_LTE_Arduino_Library→SMSRead sketch.
  • Step 3. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 4. We will see STM BOOTLARDER in device manager.
  • Step 5. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 6. Keep COM Port blank.
  • Step 7. Select Sketch→Upload to upload the code to Wio_LTE.
  • Step 8. Press RST button to enable the COM port.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
#include "wiowio_trackerlte.h"

uint16_t newSMSNumber = -1;
char message[128];
char phone[32];
char dateTime[32];


WioTracker wio = WioTracker();

void setup() {
  wio.Power_On();
  SerialUSB.println("Power On!");
  SerialUSB.println("Wait for network registered...");

  if(!wio.waitForNetworkRegister())
  {
    SerialUSB.println("Network error!");
    return;
  } else {
    SerialUSB.println("Network ready!");
  }
  wio.readAllRecUnreadSMS();  // Set all "REC UNREAD SMS" to "REC READ SMS"
}

void loop() {
  int id = wio.detectRecUnreadSMS();
  if(-1 != id){
    newSMSNumber = id;
    wio.readSMS(newSMSNumber, message, 128, phone, dateTime);
    SerialUSB.println("++++++++++++++ Start +++++++++++++++++");
    SerialUSB.print("From: ");
    SerialUSB.println(phone);
    SerialUSB.print("Date: ");
    SerialUSB.println(dateTime);
    SerialUSB.println(message);
    SerialUSB.println("++++++++++++++++ End +++++++++++++++");
  } else {
    SerialUSB.println("Waiting for new SMS!");
  }

  delay(1000);
}
  • Step 9.Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue.
  • Step 10. Open serial monitor, when seeing Waitting for new SMS!, send message to the board, the new message will display soon with phone number, time, content.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
Power On!
Wait for network registered...


Network ready!


Waiting for new SMS!
Waiting for new SMS!
Waiting for new SMS!

++++++++++++++ Start +++++++++++++++++
From: 1375002xxxx
Date: 17/12/20,17:40:38+32
Hello tracker
++++++++++++++++ End +++++++++++++++
Waiting for new SMS!
Waiting for new SMS!

4. Play with GPS

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Select File→ Examples→Wio_LTE_Arduino_Library→GNNS→GNSS_Show_Coordinate sketch.
  • Step 3. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 4. We will see STM BOOTLARDER in device manager.
  • Step 5. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 6. Keep COM Port blank.
  • Step 7. Select Sketch→Upload to upload the code to Wio_LTE.
  • Step 8. Press RST button to enable the COM port.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
#include "gnss.h"


GNSS gnss = GNSS();

void setup() {
  gnss.Power_On();
  while(false == gnss.Check_If_Power_On()){
    SerialUSB.println("Waitting for module to alvie...");
    delay(1000);
  }
  SerialUSB.println("\n\rPower On!");

  if(!(gnss.open_GNSS())){
    SerialUSB.println("\n\rGNSS init failed!");
    return;
  }

  SerialUSB.println("Open GNSS OK.");
  delay(2000);
}

void loop() {
  if(gnss.getCoordinate()){
    SerialUSB.println();
    SerialUSB.print("GNSS: \r\n");

    // Output double type
    SerialUSB.print("Data type in double: ");
    SerialUSB.print(gnss.longitude, 6);
    SerialUSB.print(",");
    SerialUSB.println(gnss.latitude, 6);

    // Output char* type
    SerialUSB.print("Data type in string: ");
    SerialUSB.print(gnss.str_longitude);
    SerialUSB.print(",");
    SerialUSB.println(gnss.str_latitude);
  } else{
    SerialUSB.print("...");
  }
}
  • Step 9.Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue.
  • Step 10. We will see lat, lon info printed on screen.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Waitting for module to alvie...
Waitting for module to alvie...
Waitting for module to alvie...

RDY
AT

OK


Power On!


Open GNSS OK.
.................................
GNSS:
Data type in double: 113.966255,22.583820
Data type in string: 113.966255,22.583819

GNSS:
Data type in double: 113.966248,22.583818
Data type in string: 113.966248,22.583818

GNSS:
Data type in double: 113.966248,22.583817
Data type in string: 113.966248,22.583816

GNSS:
Data type in double: 113.966248,22.583820
Data type in string: 113.966248,22.583819

5. Play with GPS in NMEA mode

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Select File→ Examples→Wio_LTE_Arduino_Library→GNNS→GNSS_NMEA sketch.
  • Step 3. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 4. We will see STM BOOTLARDER in device manager.
  • Step 5. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 6. Keep COM Port blank.
  • Step 7. Select Sketch→Upload to upload the code to Wio_LTE.
  • Step 8. Press RST button to enable the COM port.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
#include "gnss.h"


char nmea_sentence[192];
char nmea_GSV_sentence[512];
GNSS gnss = GNSS();

void setup() {
  gnss.Power_On();
  while(false == gnss.Check_If_Power_On()){
    SerialUSB.println("Waitting for module to alvie...");
    delay(1000);
  }
  SerialUSB.println("\n\rPower On!");

  if(!(gnss.open_GNSS())){
    SerialUSB.println("\n\rGNSS init failed!");
    return;
  }
  SerialUSB.println("Open GNSS OK.");
  gnss.enable_NMEA_mode();  // Set output sentence in NMEA mode
}

void loop() {
  clean_buffer(nmea_sentence, 192);
  gnss.read_NMEA(GGA, nmea_sentence);
  SerialUSB.print(nmea_sentence);

  clean_buffer(nmea_sentence, 192);
  gnss.read_NMEA(RMC, nmea_sentence);
  SerialUSB.print(nmea_sentence);

  clean_buffer(nmea_sentence, 192);
  gnss.read_NMEA(GSA, nmea_sentence);
  SerialUSB.print(nmea_sentence);

  clean_buffer(nmea_sentence, 192);
  gnss.read_NMEA(VTG, nmea_sentence);
  SerialUSB.print(nmea_sentence);

  clean_buffer(nmea_GSV_sentence, 512);
  gnss.read_NMEA_GSV(nmea_sentence);
  SerialUSB.print(nmea_sentence);

  SerialUSB.println("\r\n");

  delay(1000);
}
- Step 9.Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue. - Step 10. We will see below logs.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
Waitting for module to alvie...
Waitting for module to alvie...
Waitting for module to alvie...
Waitting for module to alvie...



Power On!


Open GNSS OK.

$GPRMC,,V,,,,,,,,,,N*53
$GPGSA,A,1,,,,,,,,,,,,,,,*1E
$GPVTG,,T,,M,,N,,K,N*2C
$GPGSV,3,1,12,16,60,324,40,27,54,171,40,03,19,253,,08,21,198,*7B
$GPGSV,3,2,12,09,02,322,,14,32,147,,21,04,080,,22,17,233,*7E
$GPGSV,3,3,12,23,32,314,,26,45,018,,31,35,073,,32,10,149,*7C


$GPGGA,,,,,,0,,,,,,,,*66
$GPRMC,,V,,,,,,,,,,N*53
$GPGSA,A,1,,,,,,,,,,,,,,,*1E
$GPVTG,,T,,M,,N,,K,N*2C
$GPGSV,3,1,12,03,19,253,38,08,21,198,34,14,32,147,37,16,60,324,42*70
$GPGSV,3,2,12,22,17,233,37,23,32,314,38,26,45,018,40,27,54,171,44*7D
$GPGSV,3,3,12,31,35,073,40,09,02,322,,21,04,080,,32,10,149,*75


$GPGGA,,,,,,0,,,,,,,,*66
$GPRMC,,V,,,,,,,,,,N*53
$GPGSA,A,1,,,,,,,,,,,,,,,*1E
$GPVTG,,T,,M,,N,,K,N*2C
$GPGSV,4,1,13,03,19,253,40,04,,,37,08,21,198,36,09,02,322,33*43
$GPGSV,4,2,13,14,32,147,37,16,60,324,41,22,17,233,40,23,32,314,39*72
$GPGSV,4,3,13,26,45,018,41,27,54,171,41,31,35,073,40,21,04,080,*78
$GPGSV,4,4,13,32,10,149,*47


$GPGGA,,,,,,0,,,,,,,,*66
$GPRMC,,V,,,,,,,,,,N*53
$GPGSA,A,1,,,,,,,,,,,,,,,*1E
$GPVTG,,T,,M,,N,,K,N*2C
$GPGSV,4,1,14,03,19,253,39,04,,,37,08,21,198,36,09,02,322,34*4D
$GPGSV,4,2,14,14,32,147,36,16,60,324,41,22,17,233,37,23,32,314,39*74
$GPGSV,4,3,14,26,45,018,41,27,54,171,41,31,35,073,41,21,04,080,*7E
$GPGSV,4,4,14,32,10,149,,33,,,34*47
$GPVTG,,T,,M,,N,,K,N*2C


$GPGGA,110917.30,2235.028403,N,11357.974736,E,1,10,0.9,52.2,M,-1.0,M,,*43
$GPRMC,110917.30,A,2235.028403,N,11357.974736,E,0.0,,050118,2.3,W,A*0B
$GPGSA,A,3,03,08,09,14,16,22,23,26,27,31,,,1.8,0.9,1.6*37
$GPVTG,,T,2.3,M,0.0,N,0.0,K,A*0C
$GPGSV,4,1,15,03,19,253,38,04,,,36,08,21,198,34,09,02,322,33*49
$GPGSV,4,2,15,14,32,147,36,16,60,324,40,22,17,233,36,23,32,314,38*74
$GPGSV,4,3,15,26,45,018,40,27,54,171,40,31,35,073,40,21,04,080,*7E
$GPGSV,4,4,15,32,10,149,,33,,,34,46,,,34*43
$GPVTG,,T,2.3,M,0.0,N,0.0,K,A*0C

6. Play with Call out

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Select File→ Examples→Wio_LTE_Arduino_Library→Callup sketch.
  • Step 3. Change the phone number.
  • Step 4. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 5. We will see STM BOOTLARDER in device manager.
  • Step 6. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 7. Keep COM Port blank.
  • Step 8. Select Sketch→Upload to upload the code to Wio_LTE.
  • Step 9. Press RST button to enable the COM port.
  • Step 10.Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue.
  • Step 11. The phone number owner will receive the call.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
#include "wio_tracker.h"

WioTracker wio = WioTracker();

void setup() {
  wio.Power_On();
  SerialUSB.println("Power On!");

  while(!wio.init()){
    delay(1000);
    SerialUSB.println("Accessing network...");
  }
  SerialUSB.println("Initialize done...");

  bool ret = wio.waitForNetworkRegister();
  if(true == ret){
      SerialUSB.println("Network accessed!");
  }else {
      SerialUSB.println("Network failed!");
      return;
  }

  // Make a phone call
  wio.callUp("185XXX26402");
  SerialUSB.println("Calling...");

}

void loop() {
  /* Debug */
  AT_bypass();
}

7. Play with Socket TCP/UDP client

  • Step 1. Plug the Nano SIM card into Nano SIM slot, near PCB board side.
  • Step 2. Select File→ Examples→Wio_LTE_Arduino_Library→TCPConnect.
  • Step 3. Change the phone number.
  • Step 4. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 5. We will see STM BOOTLARDER in device manager.
  • Step 6. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 7. Keep COM Port blank.
  • Step 8. Select Sketch→Upload to upload the code to Wio_LTE.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
#include "ethernet.h"

Ethernet eth = Ethernet();


// const char apn[10] = "CMNET";
const char apn[10] = "UNINET";
const char URL[100] = "mbed.org";
char http_cmd[100] = "GET /media/uploads/mbed_official/hello.txt HTTP/1.0\n\r\n\r";
int port = 80;

int ret = 0;


void setup() {
  SerialUSB.println("Begin...");
  eth.Power_On();
  while(false == eth.Check_If_Power_On()){
    SerialUSB.println("Waitting for module to alvie...");
    delay(1000);
  }

  while(!eth.init()){
    delay(1000);
    SerialUSB.println("Accessing network...");
  }
  SerialUSB.println("Initialize done...");

  eth.join(apn);
  SerialUSB.print("\n\rIP: ");
  SerialUSB.print(eth.ip_string);

  if(eth.connect(URL, port, TCP))
  {
    eth.write(http_cmd);
    while(MODULE_PORT.available()){
        serialDebug.write(MODULE_PORT.read());
    }
    eth.close(1);
  }
  else {
    SerialUSB.println("Connect Error!");
  }

}

void loop() {
  /* Debug */
  AT_bypass();
}
- Step 9. Press RST button to enable the COM port. - Step 10.Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
Begin...
Waitting for module to alvie...
Waitting for module to alvie...
Waitting for module to alvie...




Initialize done...





IP: 10.229.226.108




+QIURC: "recv",0,389
HTTP/1.1 200 OK
Server: nginx/1.11.12
Date: Mon, 25 Dec 2017 04:45:01 GMT
Content-Type: text/plain
Content-Length: 14
Connection: close
Last-Modified: Fri, 27 Jul 2012 13:30:34 GMT
Accept-Ranges: bytes
Cache-Control: max-age=36000
Expires: Mon, 25 Dec 2017 14:44:58 GMT
X-Upstream-L1-next-hop: 217.140.101.22:8080
X-Upstream-L1: developer-sjc-cyan-border-nginx

Hello world!


+QIURC: "closed",0

8. Play with SD Card

Note

Epruino firmware v1.94 is not support SD card drive, please use v1.96 or later, the latest version is v1.99.

  • Step 1. Plug micro SD card to the SD card slot.
  • Step 2. Select File→ Examples→Wio_LTE_Arduino_Library→SDCard->CardInfo.
  • Step 3. Change the phone number.
  • Step 4. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 5. We will see STM BOOTLARDER in device manager.
  • Step 6. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 7. Keep COM Port blank.
  • Step 8. Select Sketch→Upload to upload the code to Wio_LTE.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
 // include the SD library:
#include <SD.h>

// set up variables using the SD utility library functions:
Sd2Card card;
SdVolume volume;
SdFile root;

const int chipSelect = 43;

void setup()
{

  SerialUSB.print("\nInitializing SD card...");
  pinMode(SS, OUTPUT);


  // we'll use the initialization code from the utility libraries
  // since we're just testing if the card is working!
  while (!card.init(SPI_HALF_SPEED, chipSelect)) {
    SerialUSB.println("initialization failed. Things to check:");
    SerialUSB.println("* is a card is inserted?");
    SerialUSB.println("* Is your wiring correct?");
    SerialUSB.println("* did you change the chipSelect pin to match your shield or module?");
  }

  // print the type of card
  SerialUSB.print("\nCard type: ");
  switch(card.type()) {
    case SD_CARD_TYPE_SD1:
      SerialUSB.println("SD1");
      break;
    case SD_CARD_TYPE_SD2:
      SerialUSB.println("SD2");
      break;
    case SD_CARD_TYPE_SDHC:
      SerialUSB.println("SDHC");
      break;
    default:
      SerialUSB.println("Unknown");
  }

  // Now we will try to open the 'volume'/'partition' - it should be FAT16 or FAT32
  if (!volume.init(card)) {
    SerialUSB.println("Could not find FAT16/FAT32 partition.\nMake sure you've formatted the card");
    return;
  }


  // print the type and size of the first FAT-type volume
  uint32_t volumesize;
  SerialUSB.print("\nVolume type is FAT");
  SerialUSB.println(volume.fatType(), DEC);
  SerialUSB.println();

  volumesize = volume.blocksPerCluster();    // clusters are collections of blocks
  volumesize *= volume.clusterCount();       // we'll have a lot of clusters
  volumesize *= 512;                            // SD card blocks are always 512 bytes
  SerialUSB.print("Volume size (bytes): ");
  SerialUSB.println(volumesize);
  SerialUSB.print("Volume size (Kbytes): ");
  volumesize /= 1024;
  SerialUSB.println(volumesize);
  SerialUSB.print("Volume size (Mbytes): ");
  volumesize /= 1024;
  SerialUSB.println(volumesize);


  SerialUSB.println("\nFiles found on the card (name, date and size in bytes): ");
  root.openRoot(volume);

  // list all files in the card with date and size
  root.ls(LS_R | LS_DATE | LS_SIZE);
}


void loop(void) {

}
  • Step 9. Press RST button to enable the COM port.
  • Step 10.Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
Initializing SD card...
Card type: SDHC

Volume type is FAT32

Volume size (bytes): 2689048576
Volume size (Kbytes): 2626024
Volume size (Mbytes): 2564

Files found on the card (name, date and size in bytes):

9. Play with Grove Module

9.1 Play with Grove Digital Module

We use Grove-TemperatureAndHumidity_Sensor as digital input and connect to D20 of Wio LTE.

  • Step 1. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 2. We will see STM BOOTLARDER in device manager.
  • Step 3. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 4. Keep COM Port blank.
  • Step 5. Download WioLTEforArduino Library and Grove-TemperatureAndHumidity_Sensor Library from Github. Refer How to install library to install library for Arduino.
  • Step 6. Copy below code to Sketch.
  • Step 7. Click Upload to upload the code to Wio_LTE.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
#include <WioLTEforArduino.h>
#include "DHT.h"
#define DHTPIN  (WIOLTE_D20)
#define INTERVAL    (100)

// Uncomment whatever type you're using!
#define DHTTYPE DHT11   // DHT 11
//#define DHTTYPE DHT22   // DHT 22  (AM2302)
//#define DHTTYPE DHT21   // DHT 21 (AM2301)

WioLTE Wio;
DHT dht(DHTPIN, DHTTYPE);

void setup()
{
  delay(200);
  SerialUSB.println("### I/O Initialize.");
  Wio.Init();
  SerialUSB.println("### Power supply ON.");
  Wio.PowerSupplyGrove(true);
  delay(500);
  SerialUSB.println("### Initial temperature and humidity sensor.");
  dht.begin();
}

void loop()
{
    // Reading temperature or humidity takes about 250 milliseconds!
    // Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
    float h = dht.readHumidity();
    float t = dht.readTemperature();

    // check if returns are valid, if they are NaN (not a number) then something went wrong!
    if (isnan(t) || isnan(h))
    {
        SerialUSB.println("Failed to read from DHT");
    }
    else
    {
        SerialUSB.print("Humidity: ");
        SerialUSB.print(h);
        SerialUSB.print(" %\t");
        SerialUSB.print("Temperature: ");
        SerialUSB.print(t);
        SerialUSB.println(" *C");
    }
}
  • Step 8. Press RST button to enable the COM port.
  • Step 9. Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue.
1
2
3
4
5
6
7
8
### I/O Initialize.
### Power supply ON.
### Initial temperature and humidity sensor.
Humidity: 40.00 %   Temperature: 27.00 *C
Humidity: 40.00 %   Temperature: 27.00 *C
Humidity: 40.00 %   Temperature: 27.00 *C
Humidity: 40.00 %   Temperature: 27.00 *C
Humidity: 39.00 %   Temperature: 27.00 *C

9.2 Play with Grove Analog Module

We use Grove-Light Sensor as analog input and connect to A4 of Wio LTE(12bit ADC).

  • Step 1. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 2. We will see STM BOOTLARDER in device manager.
  • Step 3. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 4. Keep COM Port blank.
  • Step 5. Download WioLTEforArduino Library from Github. Refer How to install library to install library for Arduino.
  • Step 6. Copy below code to Sketch.
  • Step 7. Click Upload to upload the code to Wio_LTE.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
#include <WioLTEforArduino.h>
#define LIGHT_PIN  (WIOLTE_A4)
WioLTE Wio;

void setup() {
  delay(200);
  SerialUSB.println("### I/O Initialize.");
  Wio.Init();
  SerialUSB.println("### Power supply ON.");
  Wio.PowerSupplyGrove(true);
  delay(500);
  SerialUSB.println("### Setup pin mode.");
  pinMode(LIGHT_PIN, INPUT_ANALOG);
}

void loop() {
  int light = analogRead(LIGHT_PIN);
  SerialUSB.println(light);
  delay(1000);
}
  • Step 8. Press RST button to enable the COM port.
  • Step 9. Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
### I/O Initialize.
### Power supply ON.
### Setup pin mode.
2531
2530
2530
2530
2531
2533
2532
2531

9.3 Play with Grove I2C Module

We use Grove - 3-Axis Digital Accelerometer(±16g) as I2C device and connect to I2C port of Wio LTE.

  • Step 1. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 2. We will see STM BOOTLARDER in device manager.
  • Step 3. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 4. Keep COM Port blank.
  • Step 5. Download WioLTEforArduino Library and ADXL345 from Github. Refer How to install library to install library for Arduino.
  • Step 6. Copy below code to Sketch.
  • Step 7. Click Upload to upload the code to Wio_LTE.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
#include <WioLTEforArduino.h>
#include <ADXL345.h>

#define INTERVAL    (100)

WioLTE Wio;
ADXL345 Accel;

void setup()
{
  delay(200);
  SerialUSB.println("### I/O Initialize.");
  Wio.Init();
  SerialUSB.println("### Power supply ON.");
  Wio.PowerSupplyGrove(true);
  delay(500);
  Accel.powerOn();
  SerialUSB.println("### Setup completed.");
}

void loop()
{
  int x;
  int y;
  int z;
  Accel.readXYZ(&x, &y, &z);
  SerialUSB.print(x);
  SerialUSB.print(' ');
  SerialUSB.print(y);
  SerialUSB.print(' ');
  SerialUSB.println(z);
  delay(INTERVAL);
}
  • Step 8. Press RST button to enable the COM port.
  • Step 9. Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue.
1
2
3
4
5
6
7
8
9
### I/O Initialize.
### Power supply ON.
### Setup completed.
-224 -51 -82
-227 -40 -90
-231 -37 -91
-229 -37 -90
-227 -38 -90
-229 -39 -90

9.4 Play with Grove UART Module

We use Grove-CO2 as UART device and connect to UART port of Wio LTE.

  • Step 1. Press and hold BOOT button at back side of the Wio LTE and plug the USB to PC.
  • Step 2. We will see STM BOOTLARDER in device manager.
  • Step 3. Select Tools→Boards→Wio_Tracker_LTE.
  • Step 4. Keep COM Port blank.
  • Step 5. Download WioLTEforArduino Library from Github. Refer How to install library to install library for Arduino.
  • Step 6. Copy below code to Sketch.
  • Step 7. Click Upload to upload the code to Wio_LTE.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
#include <WioLTEforArduino.h>
#include <ADXL345.h>
#define INTERVAL    (100)

const unsigned char cmd_get_sensor[] =
{
    0xff, 0x01, 0x86, 0x00, 0x00,
    0x00, 0x00, 0x00, 0x79
};

unsigned char dataRevice[9];
int temperature;
int CO2PPM;

WioLTE Wio;

void setup()
{
  delay(200);
  SerialUSB.println("### I/O Initialize.");
  Wio.Init();
  SerialUSB.println("### Power supply ON.");
  Wio.PowerSupplyGrove(true);
  delay(500);
  SerialUSB.println("Initial UART.");
  Serial.begin(9600);
}

void loop() {
    if(dataRecieve())
    {
        SerialUSB.print("Temperature: ");
        SerialUSB.print(temperature);
        SerialUSB.print("  CO2: ");
        SerialUSB.print(CO2PPM);
        SerialUSB.println("");
    }
    delay(1000);
}


bool dataRecieve(void)
{
    byte data[9];
    int i = 0;

    //transmit command data
    for(i=0; i<sizeof(cmd_get_sensor); i++)
    {
        Serial.write(cmd_get_sensor[i]);
    }
    delay(10);
    //begin reveiceing data
    if(Serial.available())
    {
        while(Serial.available())
        {
            for(int i=0;i<9; i++)
            {
                data[i] = Serial.read();
            }
        }
    }

    for(int j=0; j<9; j++)
    {
        Serial.print(data[j]);
        Serial.print(" ");
    }
    Serial.println("");

    if((i != 9) || (1 + (0xFF ^ (byte)(data[1] + data[2] + data[3] + data[4] + data[5] + data[6] + data[7]))) != data[8])
    {
        return false;
    }

    CO2PPM = (int)data[2] * 256 + (int)data[3];
    temperature = (int)data[4] - 40;

    return true;
}
  • Step 8. Press RST button to enable the COM port.
  • Step 9. Use COM monitor tools to print the serial message. Please do not use Arduino IDE COM monitor! That may cause the next time downloading fail, but reopen Arduino IDE can recover that issue.
1
2
3
4
5
6
7
8
### I/O Initialize.
### Power supply ON.
### Initial UART.
Temperature: 22  CO2: 410
Temperature: 22  CO2: 1031
Temperature: 22  CO2: 2699
Temperature: 22  CO2: 2579
Temperature: 22  CO2: 2972

FAQ

Please click here to see all Wio_LTE FAQs.

Resource

Tech Support

Please submit any technical issue into our forum.
