Meshtastic® Network Introduction
Meshtastic® is an open source, off-grid, decentralized, mesh network built to run on affordable, low-power devices, it enables you to use inexpensive LoRa radios as a long range off-grid communication platform in areas without existing or reliable communications infrastructure.
Features
- Long range (331km record by MartinR7 & alleg)
- Decentralized communication - no dedicated router required
- Encrypted communication

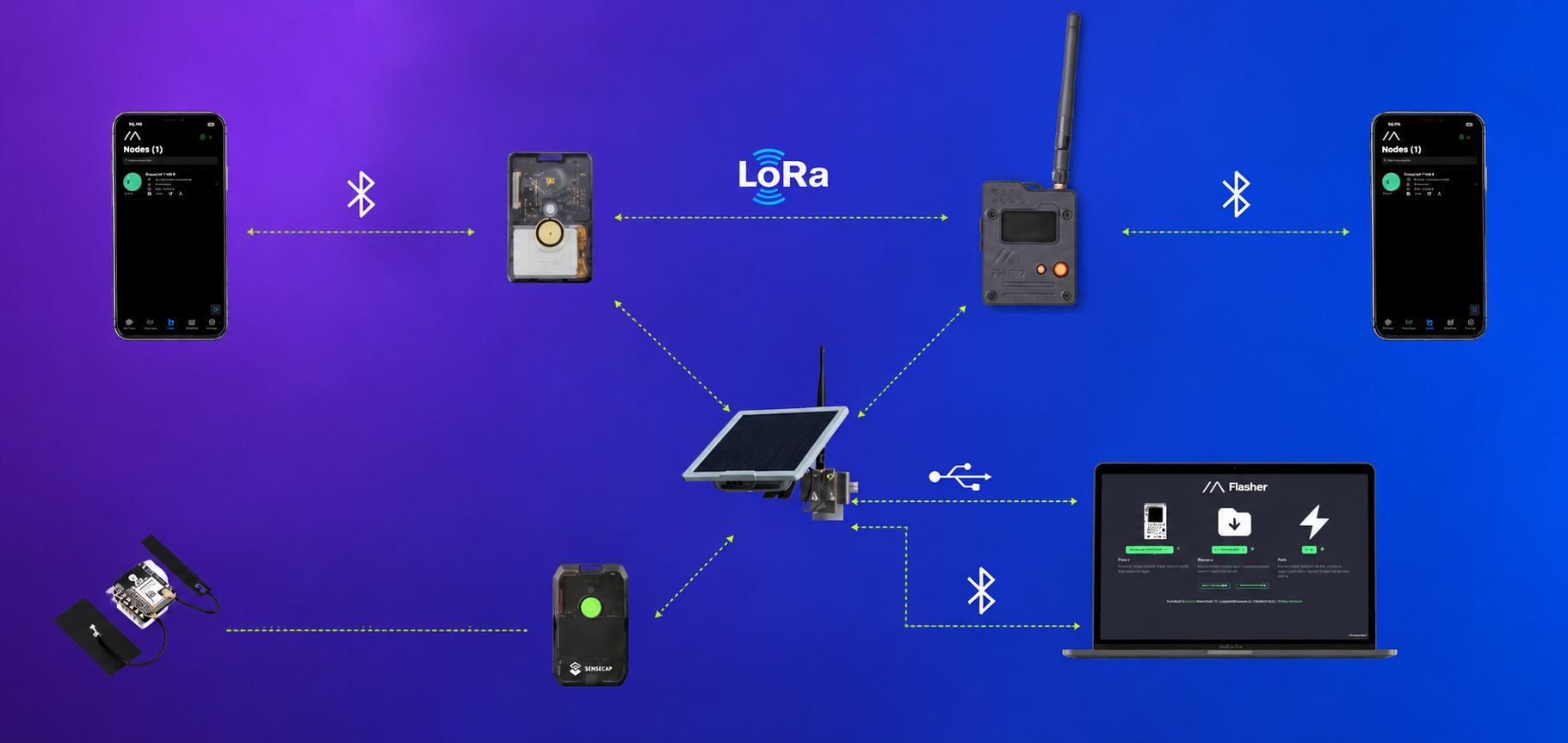

How it Works
Meshtastic utilizes LoRa, a long-range radio protocol, which is widely accessible in most regions without the need for additional licenses or certifications, unlike HAM radio operations.
Additionally, Meshtastic radios can be paired with a single phone, allowing friends and family to send messages directly to your specific radio. It's important to note that each device is capable of supporting a connection from only one user at a time."
Click here to learn more about Meshtastic network!
Supported Hardware
Developement Kit
| Xiao ESP32 kit without casing | Xiao nRF52840 kit without casing | Xiao ESP32 kit with casing |
|---|---|---|
 |  |  |
Development Board
| L1 Lite (without OLED) | L1 (with OLED) | L1 E-Ink (with E-Ink) |
|---|---|---|
 |  |  |
GNSS Tracker
| SenseCAP MeshTracker X1 | SenseCAP Card Tracker T1000-E | SenseCAP Wio Tracker L1 Pro |
|---|---|---|
 |  |  |
Solar Node
| SenseCAP Solar Node without Battery & GNSS | SenseCAP Solar Node with Battery & GNSS |
|---|---|
 | |
Application
Enclosure Design
Click here to read detailed tutorial.
Meshtastic Node Map
The Meshtastic Node Map is an online interface that visualizes the locations of Meshtastic devices on a map. It helps users monitor the real-time positions of devices in a mesh network, providing insight into network coverage and connectivity.
Click here to read detailed tutorial.
Meshtastic Node Monitor
Meshtastic Network Monitor is a tool that allows you to visualize, manage, and monitor nodes in a Meshtastic mesh network. It provides real-time information about the status, routing, and communication between devices. The monitor is the Meshtastic analyzer that collects data either through a connected gateway or MQTT server, visualizes the network topology, and displays node information such as battery status, signal strength, and GPS location. It can function as a Meshtastic node map too.
Click here to read detailed tutorial.
Meshtastic MQTT Gateway
Integrating MQTT with Meshtastic extends off-grid communication by bridging distant networks. This enables global messaging, provides a backup when mesh signals are weak, and ensures faster message delivery via the internet. Perfect for remote areas and emergency situations.
Click here to read detailed tutorial.
Other Community Firmware
Click here to use more community firmware on our hardware.
