Grove - OLED Display 0.96 inch

pir

Grove - OLED Display 0.96" module is an OLED monochrome 128×64dot matrix display module with Grove 4pin I2C Interface.Comparing to LCD, OLED screens are more competitive, which has a number of advantages such as high brightness, self-emission, high contrast ratio, slim / thin outline, wide viewing angle, wide temperature range, and low power consumption. It has bigger screen so that it can display more contents than the OLED 96×96.

Version

Product Version	Changes	Released Date
Grove - OLED Display 0.96 inch V1.1	Initial	Oct 2015

Features

Grove compatible interface
Communicate Mode:I2C
Low power consumption
Display Color: White
Wide range of operating temperature:-20℃~70℃
I2C Address 0x3C

note

If you want to use multiplue I2C devices, please refer to [Software I2C](https://wiki.seeedstudio.com/Arduino_Software_I2C_user_guide/).

danger

Please notice: heavy impact or stress on the OLED will cause the breakdown of screen.

tip

More details about Grove modules please refer to [Grove System](https://wiki.seeedstudio.com/Grove_System/)

Specifications

Items	Min	Norm	Max	Unit
Power Voltage (VCC)	3.3	5.0	5.5	V
Driver IC	-	SSD1308Z	-	-
Display Color	-	White	-	-
Dot Matrix	-	128×64	-	-
Panel Size	-	26.7(W)×19.26(H)	-	mm
Active Area	-	21.74(W)×11.175 (H)	-	mm
Dot Pitch	-	0.17(W)×0.175 (H)	-	mm
Dot Size	-	0.15(W)×0.15 (H)	-	mm
Wide range of operating temperature	-	-20~70	-	℃

tip

More details about Grove modules please refer to [Grove System](https://wiki.seeedstudio.com/Grove_System/)

Platforms Supported

Arduino	Raspberry Pi

caution

The platforms mentioned above as supported is/are an indication of the module's software or theoritical compatibility. We only provide software library or code examples for Arduino platform in most cases. It is not possible to provide software library / demo code for all possible MCU platforms. Hence, users have to write their own software library.

Getting Started

note

If this is the first time you work with Arduino, we firmly recommend you to see [Getting Started with Arduino](https://wiki.seeedstudio.com/Getting_Started_with_Arduino/) before the start.

Play With Arduino

Demonstration

The OLED128*64 uses all the pins of SSD1308 chip, the default original point is on the top left corner. You can also change the original point by adjusting the program and in order to display your desired patterns. For more details, please refer SSD1308_1.0.pdf and LY190-128064.pdf.

Hardware

Step 1. Prepare the below stuffs:

Seeeduino V4	Base Shield	Grove - OLED Display 0.96inch

Get ONE Now	Get ONE Now	Get ONE Now

Step 2. Plug the Grove OLED Display 128*64 onto the I2C port on Grove Base Shield.
Step 3. Plug Grove - Base Shield into Seeeduino.
Step 4. Connect Seeeduino to PC via a USB cable.

pir

note

If we don't have Grove Base Shield, We also can directly connect Grove - OLED Display 0.96 inch to Seeeduino as below.

Seeeduino	Grove - OLED Display 0.96 inch
5V	Red
GND	Black
SDA	White
SCL	Yellow

Software

Step 1. Download the U8G2 128*64 library from Github.
Step 2. Refer How to install library to install library for Arduino.
Step 3. Copy the code into Arduino IDE and upload. If you do not know how to upload the code, please check how to upload code.

#include <Arduino.h>
#include <U8g2lib.h>

#ifdef U8X8_HAVE_HW_SPI
#include <SPI.h>
#endif
#ifdef U8X8_HAVE_HW_I2C
#include <Wire.h>
#endif

U8G2_SSD1306_128X64_ALT0_F_HW_I2C u8g2(U8G2_R0, /* reset=*/ U8X8_PIN_NONE); // SSD1306 and SSD1308Z are compatible

// U8G2_SSD1306_128X64_NONAME_F_SW_I2C u8g2(U8G2_R0, /* clock=*/ SCL, /* data=*/ SDA, /* reset=*/ U8X8_PIN_NONE);    //Low spped I2C

void setup(void) {
  u8g2.begin();
}

void loop(void) {
  u8g2.clearBuffer();                   // clear the internal memory
  u8g2.setFont(u8g2_font_ncenB08_tr);   // choose a suitable font
  u8g2.drawStr(0,10,"Hello World!");    // write something to the internal memory
  u8g2.sendBuffer();                    // transfer internal memory to the display
  delay(1000);
}

Step 3. We can see "Hello World!" on screen.

Play With Raspberry Pi (With Grove Base Hat for Raspberry Pi)

Hardware

Step 1. Things used in this project:

Raspberry pi	Grove Base Hat for RasPi	Grove - OLED Display 0.96 inch

Get ONE Now	Get ONE Now	Get ONE Now

Step 2. Plug the Grove Base Hat into Raspberry.
Step 3. Connect the OLED display to the I^2^C port of the Base Hat.
Step 4. Connect the Raspberry Pi to PC through USB cable.

Software

note

 If you are using **Raspberry Pi with Raspberrypi OS >= Bullseye**, you have to use this command line **only with Python3**.

Step 1. Follow Setting Software to configure the development environment.
Step 2. Download the source file by cloning the grove.py library.

cd ~
git clone https://github.com/Seeed-Studio/grove.py

Step 3. Excute below command to run the code.

cd grove.py/grove
python3 grove_oled_display_128x64.py

Following is the grove_oled_display_128x64.py code.

import time

from grove.i2c import Bus

_COMMAND_MODE = 0x80
_DATA_MODE = 0x40
_NORMAL_DISPLAY = 0xA6

_DISPLAY_OFF = 0xAE
_DISPLAY_ON = 0xAF
_INVERSE_DISPLAY = 0xA7
_SET_BRIGHTNESS = 0x81


BasicFont = [[0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x5F, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00],
             [0x00, 0x14, 0x7F, 0x14, 0x7F, 0x14, 0x00, 0x00],
             [0x00, 0x24, 0x2A, 0x7F, 0x2A, 0x12, 0x00, 0x00],
             [0x00, 0x23, 0x13, 0x08, 0x64, 0x62, 0x00, 0x00],
             [0x00, 0x36, 0x49, 0x55, 0x22, 0x50, 0x00, 0x00],
             [0x00, 0x00, 0x05, 0x03, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x1C, 0x22, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x41, 0x22, 0x1C, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x08, 0x2A, 0x1C, 0x2A, 0x08, 0x00, 0x00],
             [0x00, 0x08, 0x08, 0x3E, 0x08, 0x08, 0x00, 0x00],
             [0x00, 0xA0, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x08, 0x08, 0x08, 0x08, 0x08, 0x00, 0x00],
             [0x00, 0x60, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x20, 0x10, 0x08, 0x04, 0x02, 0x00, 0x00],
             [0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E, 0x00, 0x00],
             [0x00, 0x00, 0x42, 0x7F, 0x40, 0x00, 0x00, 0x00],
             [0x00, 0x62, 0x51, 0x49, 0x49, 0x46, 0x00, 0x00],
             [0x00, 0x22, 0x41, 0x49, 0x49, 0x36, 0x00, 0x00],
             [0x00, 0x18, 0x14, 0x12, 0x7F, 0x10, 0x00, 0x00],
             [0x00, 0x27, 0x45, 0x45, 0x45, 0x39, 0x00, 0x00],
             [0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30, 0x00, 0x00],
             [0x00, 0x01, 0x71, 0x09, 0x05, 0x03, 0x00, 0x00],
             [0x00, 0x36, 0x49, 0x49, 0x49, 0x36, 0x00, 0x00],
             [0x00, 0x06, 0x49, 0x49, 0x29, 0x1E, 0x00, 0x00],
             [0x00, 0x00, 0x36, 0x36, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0xAC, 0x6C, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x08, 0x14, 0x22, 0x41, 0x00, 0x00, 0x00],
             [0x00, 0x14, 0x14, 0x14, 0x14, 0x14, 0x00, 0x00],
             [0x00, 0x41, 0x22, 0x14, 0x08, 0x00, 0x00, 0x00],
             [0x00, 0x02, 0x01, 0x51, 0x09, 0x06, 0x00, 0x00],
             [0x00, 0x32, 0x49, 0x79, 0x41, 0x3E, 0x00, 0x00],
             [0x00, 0x7E, 0x09, 0x09, 0x09, 0x7E, 0x00, 0x00],
             [0x00, 0x7F, 0x49, 0x49, 0x49, 0x36, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x41, 0x41, 0x22, 0x00, 0x00],
             [0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C, 0x00, 0x00],
             [0x00, 0x7F, 0x49, 0x49, 0x49, 0x41, 0x00, 0x00],
             [0x00, 0x7F, 0x09, 0x09, 0x09, 0x01, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x41, 0x51, 0x72, 0x00, 0x00],
             [0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F, 0x00, 0x00],
             [0x00, 0x41, 0x7F, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x20, 0x40, 0x41, 0x3F, 0x01, 0x00, 0x00],
             [0x00, 0x7F, 0x08, 0x14, 0x22, 0x41, 0x00, 0x00],
             [0x00, 0x7F, 0x40, 0x40, 0x40, 0x40, 0x00, 0x00],
             [0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F, 0x00, 0x00],
             [0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E, 0x00, 0x00],
             [0x00, 0x7F, 0x09, 0x09, 0x09, 0x06, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E, 0x00, 0x00],
             [0x00, 0x7F, 0x09, 0x19, 0x29, 0x46, 0x00, 0x00],
             [0x00, 0x26, 0x49, 0x49, 0x49, 0x32, 0x00, 0x00],
             [0x00, 0x01, 0x01, 0x7F, 0x01, 0x01, 0x00, 0x00],
             [0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F, 0x00, 0x00],
             [0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F, 0x00, 0x00],
             [0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F, 0x00, 0x00],
             [0x00, 0x63, 0x14, 0x08, 0x14, 0x63, 0x00, 0x00],
             [0x00, 0x03, 0x04, 0x78, 0x04, 0x03, 0x00, 0x00],
             [0x00, 0x61, 0x51, 0x49, 0x45, 0x43, 0x00, 0x00],
             [0x00, 0x7F, 0x41, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x02, 0x04, 0x08, 0x10, 0x20, 0x00, 0x00],
             [0x00, 0x41, 0x41, 0x7F, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x04, 0x02, 0x01, 0x02, 0x04, 0x00, 0x00],
             [0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00],
             [0x00, 0x01, 0x02, 0x04, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x20, 0x54, 0x54, 0x54, 0x78, 0x00, 0x00],
             [0x00, 0x7F, 0x48, 0x44, 0x44, 0x38, 0x00, 0x00],
             [0x00, 0x38, 0x44, 0x44, 0x28, 0x00, 0x00, 0x00],
             [0x00, 0x38, 0x44, 0x44, 0x48, 0x7F, 0x00, 0x00],
             [0x00, 0x38, 0x54, 0x54, 0x54, 0x18, 0x00, 0x00],
             [0x00, 0x08, 0x7E, 0x09, 0x02, 0x00, 0x00, 0x00],
             [0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C, 0x00, 0x00],
             [0x00, 0x7F, 0x08, 0x04, 0x04, 0x78, 0x00, 0x00],
             [0x00, 0x00, 0x7D, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x80, 0x84, 0x7D, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x7F, 0x10, 0x28, 0x44, 0x00, 0x00, 0x00],
             [0x00, 0x41, 0x7F, 0x40, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x7C, 0x04, 0x18, 0x04, 0x78, 0x00, 0x00],
             [0x00, 0x7C, 0x08, 0x04, 0x7C, 0x00, 0x00, 0x00],
             [0x00, 0x38, 0x44, 0x44, 0x38, 0x00, 0x00, 0x00],
             [0x00, 0xFC, 0x24, 0x24, 0x18, 0x00, 0x00, 0x00],
             [0x00, 0x18, 0x24, 0x24, 0xFC, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x7C, 0x08, 0x04, 0x00, 0x00, 0x00],
             [0x00, 0x48, 0x54, 0x54, 0x24, 0x00, 0x00, 0x00],
             [0x00, 0x04, 0x7F, 0x44, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x3C, 0x40, 0x40, 0x7C, 0x00, 0x00, 0x00],
             [0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C, 0x00, 0x00],
             [0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C, 0x00, 0x00],
             [0x00, 0x44, 0x28, 0x10, 0x28, 0x44, 0x00, 0x00],
             [0x00, 0x1C, 0xA0, 0xA0, 0x7C, 0x00, 0x00, 0x00],
             [0x00, 0x44, 0x64, 0x54, 0x4C, 0x44, 0x00, 0x00],
             [0x00, 0x08, 0x36, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x7F, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x41, 0x36, 0x08, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x02, 0x01, 0x01, 0x02, 0x01, 0x00, 0x00],
             [0x00, 0x02, 0x05, 0x05, 0x02, 0x00, 0x00, 0x00]]


class GroveOledDisplay128x64(object):
    HORIZONTAL = 0x00
    VERTICAL = 0x01
    PAGE = 0x02

    def __init__(self, bus=None, address=0x3C):
        self.bus = Bus(bus)
        self.address = address

        self.off()
        self.inverse = False
        self.mode = self.HORIZONTAL

        self.clear()
        self.on()

    def on(self):
        self.send_command(_DISPLAY_ON)

    def off(self):
        self.send_command(_DISPLAY_OFF)

    def send_command(self, command):
        self.bus.write_byte_data(self.address, _COMMAND_MODE, command)

    def send_data(self, data):
        self.bus.write_byte_data(self.address, _DATA_MODE, data)

    def send_commands(self, commands):
        for c in commands:
            self.send_command(c)

    def clear(self):
        self.off()
        for i in range(8):
            self.set_cursor(i, 0)
            self.puts(' ' * 16)

        self.on()
        self.set_cursor(0, 0)

    @property
    def inverse(self):
        return self._inverse

    @inverse.setter
    def inverse(self, enable):
        self.send_command(_INVERSE_DISPLAY if enable else _NORMAL_DISPLAY)
        self._inverse = enable

    @property
    def mode(self):
        return self._mode

    @mode.setter
    def mode(self, mode):
        self.send_command(0x20)
        self.send_command(mode)
        self._mode = mode

    def set_cursor(self, row, column):
        self.send_command(0xB0 + row)
        self.send_command(0x00 + (8*column & 0x0F))
        self.send_command(0x10 + ((8*column>>4)&0x0F))

    def putc(self, c):
        C_add = ord(c)
        if C_add < 32 or C_add > 127:     # Ignore non-printable ASCII characters
            c = ' '
            C_add = ord(c)

        for i in range(0, 8):
            self.send_data(BasicFont[C_add-32][i])

    def puts(self, text):
        for c in text:
            self.putc(c)

    def show_image(self, image):
        from PIL import Image
        import numpy as np

        im = Image.open(image)

        bw = im.convert('1')
        pixels = np.array(bw.getdata())
        page_size = 128 * 8

        self.set_cursor(0, 0)
        for page in range(8):
            start = page_size * page
            end = start + page_size

            for i in range(start, start + 128):
                data = np.packbits(pixels[i:end:128][::-1])[0]
                self.send_data(data)


def main():
    display = GroveOledDisplay128x64()

    display.set_cursor(0, 0)
    display.puts('hello')
    display.set_cursor(1, 4)
    display.puts('world')

if __name__ == "__main__":
    main()

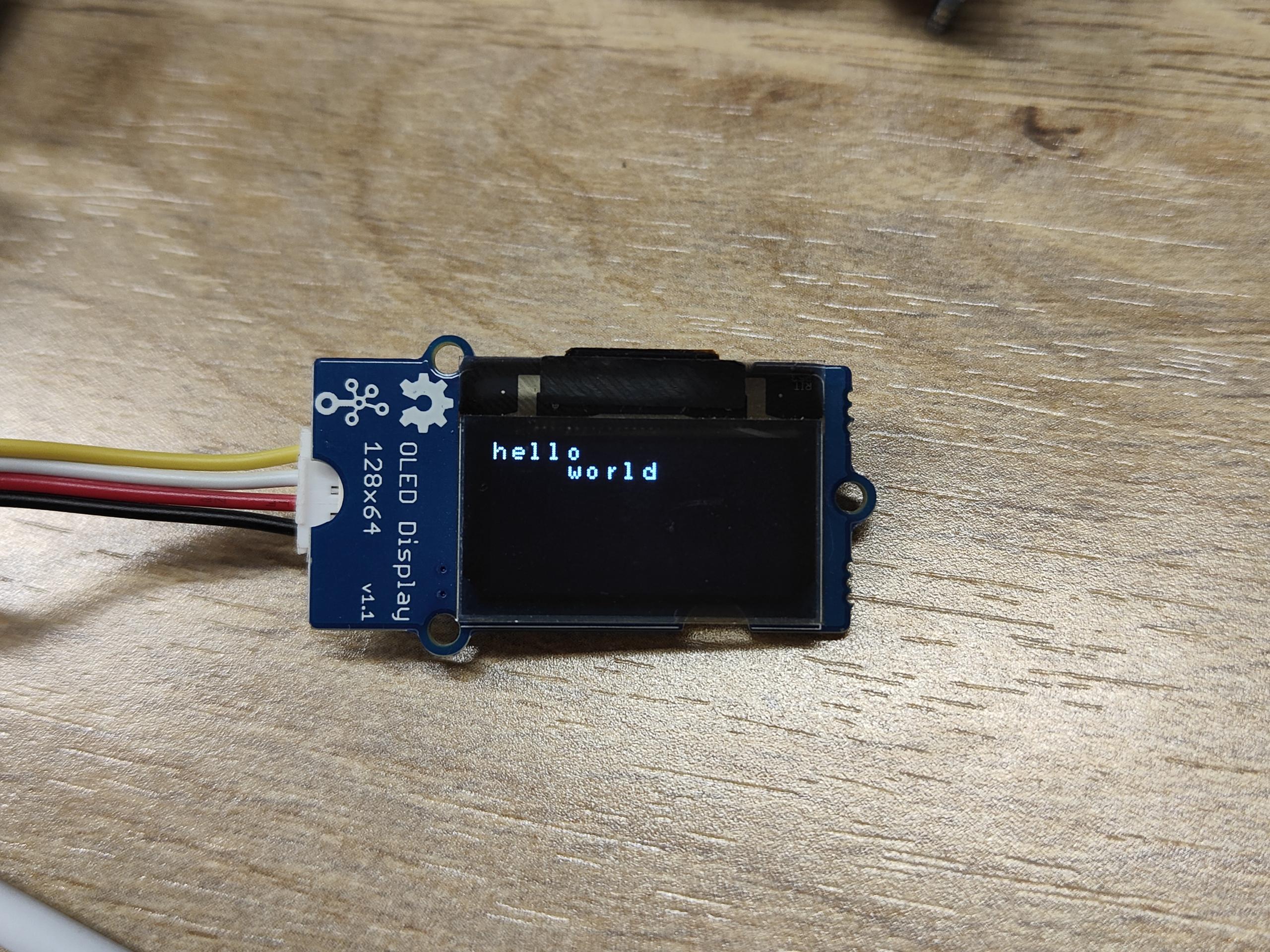

It seems nothing happened in terminal, however you can find the most famous sentence in the cyber world if you check your oled.😄

note

    If you use the I2C tool to scan the I2C address of the grove module, you may find two or more address. 0x04 is the adrress of the *Grove Base Hat for Raspberry Pi*.

Play With Raspberry Pi (with GrovePi_Plus)

The python script for BeagleBone Green below also works for Raspberry Pi, But the I2C bus is different. On Raspberry Pi 2/3, the I2C bus is 1. The script with changing bus=2 to bus=1 will work on Pi.

Hardware

Step 1. Prepare the below stuffs:

Raspberry pi	GrovePi_Plus	Grove - OLED Display 0.96 inch

Get One Now	Get One Now	Get One Now

Step 2. Plug the GrovePi_Plus into Raspberry.
Step 3. Connect Grove - OLED Display 0.96 inch ranger to I2C-2 port of GrovePi_Plus.
Step 4. Connect the Raspberry to PC through USB cable.

pir

Software

Step 1. Follow Setting Software to configure the development environment.
Step 2. Navigate to the demos' directory:

cd yourpath/GrovePi/Software/Python/

Step 3. To see the code

nano Grove-OLED_Display_0.96inch.py   # "Ctrl+x" to exit #

import time
import smbus2 as smbus

_COMMAND_MODE = 0x80
_DATA_MODE = 0x40
_NORMAL_DISPLAY = 0xA6

_DISPLAY_OFF = 0xAE
_DISPLAY_ON = 0xAF
_INVERSE_DISPLAY = 0xA7
_SET_BRIGHTNESS = 0x81


BasicFont = [[0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x5F, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00],
             [0x00, 0x14, 0x7F, 0x14, 0x7F, 0x14, 0x00, 0x00],
             [0x00, 0x24, 0x2A, 0x7F, 0x2A, 0x12, 0x00, 0x00],
             [0x00, 0x23, 0x13, 0x08, 0x64, 0x62, 0x00, 0x00],
             [0x00, 0x36, 0x49, 0x55, 0x22, 0x50, 0x00, 0x00],
             [0x00, 0x00, 0x05, 0x03, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x1C, 0x22, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x41, 0x22, 0x1C, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x08, 0x2A, 0x1C, 0x2A, 0x08, 0x00, 0x00],
             [0x00, 0x08, 0x08, 0x3E, 0x08, 0x08, 0x00, 0x00],
             [0x00, 0xA0, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x08, 0x08, 0x08, 0x08, 0x08, 0x00, 0x00],
             [0x00, 0x60, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x20, 0x10, 0x08, 0x04, 0x02, 0x00, 0x00],
             [0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E, 0x00, 0x00],
             [0x00, 0x00, 0x42, 0x7F, 0x40, 0x00, 0x00, 0x00],
             [0x00, 0x62, 0x51, 0x49, 0x49, 0x46, 0x00, 0x00],
             [0x00, 0x22, 0x41, 0x49, 0x49, 0x36, 0x00, 0x00],
             [0x00, 0x18, 0x14, 0x12, 0x7F, 0x10, 0x00, 0x00],
             [0x00, 0x27, 0x45, 0x45, 0x45, 0x39, 0x00, 0x00],
             [0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30, 0x00, 0x00],
             [0x00, 0x01, 0x71, 0x09, 0x05, 0x03, 0x00, 0x00],
             [0x00, 0x36, 0x49, 0x49, 0x49, 0x36, 0x00, 0x00],
             [0x00, 0x06, 0x49, 0x49, 0x29, 0x1E, 0x00, 0x00],
             [0x00, 0x00, 0x36, 0x36, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0xAC, 0x6C, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x08, 0x14, 0x22, 0x41, 0x00, 0x00, 0x00],
             [0x00, 0x14, 0x14, 0x14, 0x14, 0x14, 0x00, 0x00],
             [0x00, 0x41, 0x22, 0x14, 0x08, 0x00, 0x00, 0x00],
             [0x00, 0x02, 0x01, 0x51, 0x09, 0x06, 0x00, 0x00],
             [0x00, 0x32, 0x49, 0x79, 0x41, 0x3E, 0x00, 0x00],
             [0x00, 0x7E, 0x09, 0x09, 0x09, 0x7E, 0x00, 0x00],
             [0x00, 0x7F, 0x49, 0x49, 0x49, 0x36, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x41, 0x41, 0x22, 0x00, 0x00],
             [0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C, 0x00, 0x00],
             [0x00, 0x7F, 0x49, 0x49, 0x49, 0x41, 0x00, 0x00],
             [0x00, 0x7F, 0x09, 0x09, 0x09, 0x01, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x41, 0x51, 0x72, 0x00, 0x00],
             [0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F, 0x00, 0x00],
             [0x00, 0x41, 0x7F, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x20, 0x40, 0x41, 0x3F, 0x01, 0x00, 0x00],
             [0x00, 0x7F, 0x08, 0x14, 0x22, 0x41, 0x00, 0x00],
             [0x00, 0x7F, 0x40, 0x40, 0x40, 0x40, 0x00, 0x00],
             [0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F, 0x00, 0x00],
             [0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E, 0x00, 0x00],
             [0x00, 0x7F, 0x09, 0x09, 0x09, 0x06, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E, 0x00, 0x00],
             [0x00, 0x7F, 0x09, 0x19, 0x29, 0x46, 0x00, 0x00],
             [0x00, 0x26, 0x49, 0x49, 0x49, 0x32, 0x00, 0x00],
             [0x00, 0x01, 0x01, 0x7F, 0x01, 0x01, 0x00, 0x00],
             [0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F, 0x00, 0x00],
             [0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F, 0x00, 0x00],
             [0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F, 0x00, 0x00],
             [0x00, 0x63, 0x14, 0x08, 0x14, 0x63, 0x00, 0x00],
             [0x00, 0x03, 0x04, 0x78, 0x04, 0x03, 0x00, 0x00],
             [0x00, 0x61, 0x51, 0x49, 0x45, 0x43, 0x00, 0x00],
             [0x00, 0x7F, 0x41, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x02, 0x04, 0x08, 0x10, 0x20, 0x00, 0x00],
             [0x00, 0x41, 0x41, 0x7F, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x04, 0x02, 0x01, 0x02, 0x04, 0x00, 0x00],
             [0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00],
             [0x00, 0x01, 0x02, 0x04, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x20, 0x54, 0x54, 0x54, 0x78, 0x00, 0x00],
             [0x00, 0x7F, 0x48, 0x44, 0x44, 0x38, 0x00, 0x00],
             [0x00, 0x38, 0x44, 0x44, 0x28, 0x00, 0x00, 0x00],
             [0x00, 0x38, 0x44, 0x44, 0x48, 0x7F, 0x00, 0x00],
             [0x00, 0x38, 0x54, 0x54, 0x54, 0x18, 0x00, 0x00],
             [0x00, 0x08, 0x7E, 0x09, 0x02, 0x00, 0x00, 0x00],
             [0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C, 0x00, 0x00],
             [0x00, 0x7F, 0x08, 0x04, 0x04, 0x78, 0x00, 0x00],
             [0x00, 0x00, 0x7D, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x80, 0x84, 0x7D, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x7F, 0x10, 0x28, 0x44, 0x00, 0x00, 0x00],
             [0x00, 0x41, 0x7F, 0x40, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x7C, 0x04, 0x18, 0x04, 0x78, 0x00, 0x00],
             [0x00, 0x7C, 0x08, 0x04, 0x7C, 0x00, 0x00, 0x00],
             [0x00, 0x38, 0x44, 0x44, 0x38, 0x00, 0x00, 0x00],
             [0x00, 0xFC, 0x24, 0x24, 0x18, 0x00, 0x00, 0x00],
             [0x00, 0x18, 0x24, 0x24, 0xFC, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x7C, 0x08, 0x04, 0x00, 0x00, 0x00],
             [0x00, 0x48, 0x54, 0x54, 0x24, 0x00, 0x00, 0x00],
             [0x00, 0x04, 0x7F, 0x44, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x3C, 0x40, 0x40, 0x7C, 0x00, 0x00, 0x00],
             [0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C, 0x00, 0x00],
             [0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C, 0x00, 0x00],
             [0x00, 0x44, 0x28, 0x10, 0x28, 0x44, 0x00, 0x00],
             [0x00, 0x1C, 0xA0, 0xA0, 0x7C, 0x00, 0x00, 0x00],
             [0x00, 0x44, 0x64, 0x54, 0x4C, 0x44, 0x00, 0x00],
             [0x00, 0x08, 0x36, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x7F, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x41, 0x36, 0x08, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x02, 0x01, 0x01, 0x02, 0x01, 0x00, 0x00],
             [0x00, 0x02, 0x05, 0x05, 0x02, 0x00, 0x00, 0x00]]


class GroveOledDisplay128x64(object):
    HORIZONTAL = 0x00
    VERTICAL = 0x01
    PAGE = 0x02

    def __init__(self, bus=2, address=0x3C):
        self.bus = smbus.SMBus(bus)
        self.address = address

        self.off()
        self.inverse = False
        self.mode = self.HORIZONTAL

        self.clear()
        self.on()

    def on(self):
        self.send_command(_DISPLAY_ON)

    def off(self):
        self.send_command(_DISPLAY_OFF)

    def send_command(self, command):
        self.bus.write_byte_data(self.address, _COMMAND_MODE, command)

    def send_data(self, data):
        self.bus.write_byte_data(self.address, _DATA_MODE, data)

    def send_commands(self, commands):
        for c in commands:
            self.send_command(c)

    def clear(self):
        self.off()
        for i in range(8):
            self.set_cursor(i, 0)
            self.puts(' ' * 16)

        self.on()
        self.set_cursor(0, 0)

    @property
    def inverse(self):
        return self._inverse

    @inverse.setter
    def inverse(self, enable):
        self.send_command(_INVERSE_DISPLAY if enable else _NORMAL_DISPLAY)
        self._inverse = enable

    @property
    def mode(self):
        return self._mode

    @mode.setter
    def mode(self, mode):
        self.send_command(0x20)
        self.send_command(mode)
        self._mode = mode

    def set_cursor(self, row, column):
        self.send_command(0xB0 + row)
        self.send_command(0x00 + (8*column & 0x0F))
        self.send_command(0x10 + ((8*column>>4)&0x0F))

    def putc(self, c):
        C_add = ord(c)
        if C_add < 32 or C_add > 127:     # Ignore non-printable ASCII characters
            c = ' '
            C_add = ord(c)

        for i in range(0, 8):
            self.send_data(BasicFont[C_add-32][i])

    def puts(self, text):
        for c in text:
            self.putc(c)

    def show_image(self, image):
        from PIL import Image
        import numpy as np

        im = Image.open(image)

        bw = im.convert('1')
        pixels = np.array(bw.getdata())
        page_size = 128 * 8

        self.set_cursor(0, 0)
        for page in range(8):
            start = page_size * page
            end = start + page_size

            for i in range(start, start + 128):
                data = np.packbits(pixels[i:end:128][::-1])[0]
                self.send_data(data)


if __name__ == "__main__":
    display = GroveOledDisplay128x64(bus=1)

    display.set_cursor(0, 0)
    display.puts('hello')
    display.set_cursor(1, 4)
    display.puts('world')

Step 4: Install smbus2 library sudo pip install smbus2
Step 5: Run the code. We'll find that the Grove - OLED outputs "Hello World".

sudo python Grove-OLED_Display_0.96inch.py

Play With Beaglebone Green

To begin editing programs that live on BBG, you can use the Cloud9 IDE and refer Beaglebone Green Wiki.

Here are the steps how to display "Hello World" on OLED.

Hardware

Step 1. Connect Grove - OLED to Grove I2C socket on BBG.
Step 2. Connect Seeeduino to PC via a USB cable.

Software

Step 1: Click the "+" in the top-right to create a new file.

pir

Step 2: Copy and paste the following code into the new tab

import time
import smbus2 as smbus

_COMMAND_MODE = 0x80
_DATA_MODE = 0x40
_NORMAL_DISPLAY = 0xA6

_DISPLAY_OFF = 0xAE
_DISPLAY_ON = 0xAF
_INVERSE_DISPLAY = 0xA7
_SET_BRIGHTNESS = 0x81


BasicFont = [[0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x5F, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x07, 0x00, 0x07, 0x00, 0x00, 0x00],
             [0x00, 0x14, 0x7F, 0x14, 0x7F, 0x14, 0x00, 0x00],
             [0x00, 0x24, 0x2A, 0x7F, 0x2A, 0x12, 0x00, 0x00],
             [0x00, 0x23, 0x13, 0x08, 0x64, 0x62, 0x00, 0x00],
             [0x00, 0x36, 0x49, 0x55, 0x22, 0x50, 0x00, 0x00],
             [0x00, 0x00, 0x05, 0x03, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x1C, 0x22, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x41, 0x22, 0x1C, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x08, 0x2A, 0x1C, 0x2A, 0x08, 0x00, 0x00],
             [0x00, 0x08, 0x08, 0x3E, 0x08, 0x08, 0x00, 0x00],
             [0x00, 0xA0, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x08, 0x08, 0x08, 0x08, 0x08, 0x00, 0x00],
             [0x00, 0x60, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x20, 0x10, 0x08, 0x04, 0x02, 0x00, 0x00],
             [0x00, 0x3E, 0x51, 0x49, 0x45, 0x3E, 0x00, 0x00],
             [0x00, 0x00, 0x42, 0x7F, 0x40, 0x00, 0x00, 0x00],
             [0x00, 0x62, 0x51, 0x49, 0x49, 0x46, 0x00, 0x00],
             [0x00, 0x22, 0x41, 0x49, 0x49, 0x36, 0x00, 0x00],
             [0x00, 0x18, 0x14, 0x12, 0x7F, 0x10, 0x00, 0x00],
             [0x00, 0x27, 0x45, 0x45, 0x45, 0x39, 0x00, 0x00],
             [0x00, 0x3C, 0x4A, 0x49, 0x49, 0x30, 0x00, 0x00],
             [0x00, 0x01, 0x71, 0x09, 0x05, 0x03, 0x00, 0x00],
             [0x00, 0x36, 0x49, 0x49, 0x49, 0x36, 0x00, 0x00],
             [0x00, 0x06, 0x49, 0x49, 0x29, 0x1E, 0x00, 0x00],
             [0x00, 0x00, 0x36, 0x36, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0xAC, 0x6C, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x08, 0x14, 0x22, 0x41, 0x00, 0x00, 0x00],
             [0x00, 0x14, 0x14, 0x14, 0x14, 0x14, 0x00, 0x00],
             [0x00, 0x41, 0x22, 0x14, 0x08, 0x00, 0x00, 0x00],
             [0x00, 0x02, 0x01, 0x51, 0x09, 0x06, 0x00, 0x00],
             [0x00, 0x32, 0x49, 0x79, 0x41, 0x3E, 0x00, 0x00],
             [0x00, 0x7E, 0x09, 0x09, 0x09, 0x7E, 0x00, 0x00],
             [0x00, 0x7F, 0x49, 0x49, 0x49, 0x36, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x41, 0x41, 0x22, 0x00, 0x00],
             [0x00, 0x7F, 0x41, 0x41, 0x22, 0x1C, 0x00, 0x00],
             [0x00, 0x7F, 0x49, 0x49, 0x49, 0x41, 0x00, 0x00],
             [0x00, 0x7F, 0x09, 0x09, 0x09, 0x01, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x41, 0x51, 0x72, 0x00, 0x00],
             [0x00, 0x7F, 0x08, 0x08, 0x08, 0x7F, 0x00, 0x00],
             [0x00, 0x41, 0x7F, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x20, 0x40, 0x41, 0x3F, 0x01, 0x00, 0x00],
             [0x00, 0x7F, 0x08, 0x14, 0x22, 0x41, 0x00, 0x00],
             [0x00, 0x7F, 0x40, 0x40, 0x40, 0x40, 0x00, 0x00],
             [0x00, 0x7F, 0x02, 0x0C, 0x02, 0x7F, 0x00, 0x00],
             [0x00, 0x7F, 0x04, 0x08, 0x10, 0x7F, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x41, 0x41, 0x3E, 0x00, 0x00],
             [0x00, 0x7F, 0x09, 0x09, 0x09, 0x06, 0x00, 0x00],
             [0x00, 0x3E, 0x41, 0x51, 0x21, 0x5E, 0x00, 0x00],
             [0x00, 0x7F, 0x09, 0x19, 0x29, 0x46, 0x00, 0x00],
             [0x00, 0x26, 0x49, 0x49, 0x49, 0x32, 0x00, 0x00],
             [0x00, 0x01, 0x01, 0x7F, 0x01, 0x01, 0x00, 0x00],
             [0x00, 0x3F, 0x40, 0x40, 0x40, 0x3F, 0x00, 0x00],
             [0x00, 0x1F, 0x20, 0x40, 0x20, 0x1F, 0x00, 0x00],
             [0x00, 0x3F, 0x40, 0x38, 0x40, 0x3F, 0x00, 0x00],
             [0x00, 0x63, 0x14, 0x08, 0x14, 0x63, 0x00, 0x00],
             [0x00, 0x03, 0x04, 0x78, 0x04, 0x03, 0x00, 0x00],
             [0x00, 0x61, 0x51, 0x49, 0x45, 0x43, 0x00, 0x00],
             [0x00, 0x7F, 0x41, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x02, 0x04, 0x08, 0x10, 0x20, 0x00, 0x00],
             [0x00, 0x41, 0x41, 0x7F, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x04, 0x02, 0x01, 0x02, 0x04, 0x00, 0x00],
             [0x00, 0x80, 0x80, 0x80, 0x80, 0x80, 0x00, 0x00],
             [0x00, 0x01, 0x02, 0x04, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x20, 0x54, 0x54, 0x54, 0x78, 0x00, 0x00],
             [0x00, 0x7F, 0x48, 0x44, 0x44, 0x38, 0x00, 0x00],
             [0x00, 0x38, 0x44, 0x44, 0x28, 0x00, 0x00, 0x00],
             [0x00, 0x38, 0x44, 0x44, 0x48, 0x7F, 0x00, 0x00],
             [0x00, 0x38, 0x54, 0x54, 0x54, 0x18, 0x00, 0x00],
             [0x00, 0x08, 0x7E, 0x09, 0x02, 0x00, 0x00, 0x00],
             [0x00, 0x18, 0xA4, 0xA4, 0xA4, 0x7C, 0x00, 0x00],
             [0x00, 0x7F, 0x08, 0x04, 0x04, 0x78, 0x00, 0x00],
             [0x00, 0x00, 0x7D, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x80, 0x84, 0x7D, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x7F, 0x10, 0x28, 0x44, 0x00, 0x00, 0x00],
             [0x00, 0x41, 0x7F, 0x40, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x7C, 0x04, 0x18, 0x04, 0x78, 0x00, 0x00],
             [0x00, 0x7C, 0x08, 0x04, 0x7C, 0x00, 0x00, 0x00],
             [0x00, 0x38, 0x44, 0x44, 0x38, 0x00, 0x00, 0x00],
             [0x00, 0xFC, 0x24, 0x24, 0x18, 0x00, 0x00, 0x00],
             [0x00, 0x18, 0x24, 0x24, 0xFC, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x7C, 0x08, 0x04, 0x00, 0x00, 0x00],
             [0x00, 0x48, 0x54, 0x54, 0x24, 0x00, 0x00, 0x00],
             [0x00, 0x04, 0x7F, 0x44, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x3C, 0x40, 0x40, 0x7C, 0x00, 0x00, 0x00],
             [0x00, 0x1C, 0x20, 0x40, 0x20, 0x1C, 0x00, 0x00],
             [0x00, 0x3C, 0x40, 0x30, 0x40, 0x3C, 0x00, 0x00],
             [0x00, 0x44, 0x28, 0x10, 0x28, 0x44, 0x00, 0x00],
             [0x00, 0x1C, 0xA0, 0xA0, 0x7C, 0x00, 0x00, 0x00],
             [0x00, 0x44, 0x64, 0x54, 0x4C, 0x44, 0x00, 0x00],
             [0x00, 0x08, 0x36, 0x41, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x00, 0x7F, 0x00, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x41, 0x36, 0x08, 0x00, 0x00, 0x00, 0x00],
             [0x00, 0x02, 0x01, 0x01, 0x02, 0x01, 0x00, 0x00],
             [0x00, 0x02, 0x05, 0x05, 0x02, 0x00, 0x00, 0x00]]


class GroveOledDisplay128x64(object):
    HORIZONTAL = 0x00
    VERTICAL = 0x01
    PAGE = 0x02

    def __init__(self, bus=2, address=0x3C):
        self.bus = smbus.SMBus(bus)
        self.address = address

        self.off()
        self.inverse = False
        self.mode = self.HORIZONTAL

        self.clear()
        self.on()

    def on(self):
        self.send_command(_DISPLAY_ON)

    def off(self):
        self.send_command(_DISPLAY_OFF)

    def send_command(self, command):
        self.bus.write_byte_data(self.address, _COMMAND_MODE, command)

    def send_data(self, data):
        self.bus.write_byte_data(self.address, _DATA_MODE, data)

    def send_commands(self, commands):
        for c in commands:
            self.send_command(c)

    def clear(self):
        self.off()
        for i in range(8):
            self.set_cursor(i, 0)
            self.puts(' ' * 16)

        self.on()
        self.set_cursor(0, 0)

    @property
    def inverse(self):
        return self._inverse

    @inverse.setter
    def inverse(self, enable):
        self.send_command(_INVERSE_DISPLAY if enable else _NORMAL_DISPLAY)
        self._inverse = enable

    @property
    def mode(self):
        return self._mode

    @mode.setter
    def mode(self, mode):
        self.send_command(0x20)
        self.send_command(mode)
        self._mode = mode

    def set_cursor(self, row, column):
        self.send_command(0xB0 + row)
        self.send_command(0x00 + (8*column & 0x0F))
        self.send_command(0x10 + ((8*column>>4)&0x0F))

    def putc(self, c):
        C_add = ord(c)
        if C_add < 32 or C_add > 127:     # Ignore non-printable ASCII characters
            c = ' '
            C_add = ord(c)

        for i in range(0, 8):
            self.send_data(BasicFont[C_add-32][i])

    def puts(self, text):
        for c in text:
            self.putc(c)

    def show_image(self, image):
        from PIL import Image
        import numpy as np

        im = Image.open(image)

        bw = im.convert('1')
        pixels = np.array(bw.getdata())
        page_size = 128 * 8

        self.set_cursor(0, 0)
        for page in range(8):
            start = page_size * page
            end = start + page_size

            for i in range(start, start + 128):
                data = np.packbits(pixels[i:end:128][::-1])[0]
                self.send_data(data)


if __name__ == "__main__":
    display = GroveOledDisplay128x64(bus=2)

    display.set_cursor(0, 0)
    display.puts('hello')
    display.set_cursor(1, 4)
    display.puts('world')

Step 3: Save the file by clicking the disk icon with with the .py extension.
Step 4: Install smbus2 library sudo pip3 install smbus2
Step 5: Run the code. We'll find that the Grove - OLED outputs "Hello World".

sudo python3 Grove-OLED_Display_0.96inch.py

Schematic Online Viewer

Resources

[PDF] Grove-OLED128x64 Schematic
[PDF] Grove-OLED128x64 PCB
[Wiki] Beaglebone Green Wiki
[Eagle] Grove-OLED128x64
[Library] GitHub Library for OLED
[Datasheet] Resources of SSD1308_1.0.pdf
[Datasheet] Resources of LY190-128064.pdf

Tech Support & Product Discussion

Thank you for choosing our products! We are here to provide you with different support to ensure that your experience with our products is as smooth as possible. We offer several communication channels to cater to different preferences and needs.

Version​

Features​

Specifications​

Platforms Supported​

Getting Started​

Play With Arduino​

Demonstration​

Hardware​

Software​

Play With Raspberry Pi (With Grove Base Hat for Raspberry Pi)​

Hardware​

Software​

Play With Raspberry Pi (with GrovePi_Plus)​

Hardware​

Software​

Play With Beaglebone Green​

Hardware​

Software​

Schematic Online Viewer​

Resources​

Tech Support & Product Discussion​

Version

Features

Specifications

Platforms Supported

Getting Started

Play With Arduino

Demonstration

Hardware

Software

Play With Raspberry Pi (With Grove Base Hat for Raspberry Pi)

Hardware

Software

Play With Raspberry Pi (with GrovePi_Plus)

Hardware

Software

Play With Beaglebone Green

Hardware

Software

Schematic Online Viewer

Resources

Tech Support & Product Discussion
